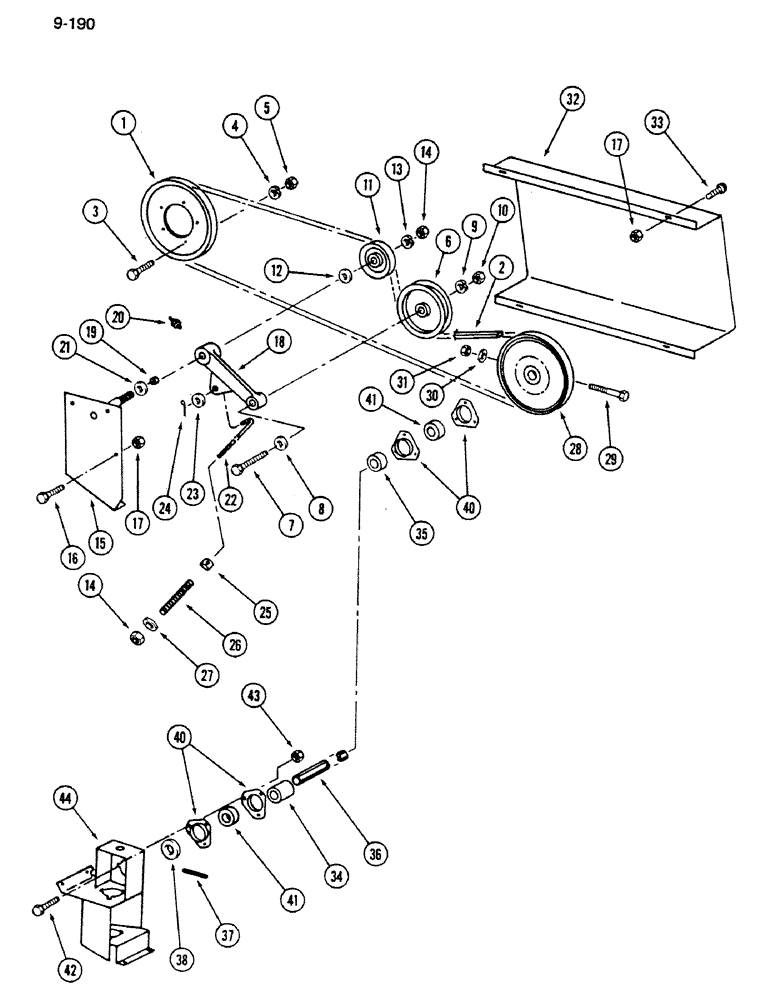

Запчасти Case IH 1620 (9-190) - STRAW SPREADER DRIVE (19) - STRAW SPREADER & CHOPPER

1

566516R91

PULLEY ASSY.

PULLEY - drive, 9-13/16 inch OD

1шт.

2

589622R1

V-BELT,0.63" W

Drive, 187 inch 0.63" W

1шт.

3

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

5шт.

5

9635082

NUT,5/16" - 18, Gr 5

5шт.

6

181126C91

PULLEY

- tightener, 6 inch OD

1шт.

7

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

8

25711R1

WASHER

- flat, 21/32 x 1-5/16 x 5/32 inch

1шт.

9

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

10

129-107

NUT,5/8"-11, G5

1шт.

11

1315269C1

PULLEY

- idler, 4-3/8 inch OD

1шт.

12

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

4шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

15

1315274C1

BRACKET

SUPPORT - pulley

1шт.

16

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex, 5/16 NC x 3/4 inch

3шт.

17

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch NC

6шт.

18

181153C91

LEVER ASSY.

LEVER ASSEMBLY - tightener, Includes: Ref. 19

1шт.

19

165704C1

BUSHING

- lever

2шт.

20

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

21

25712R1

WASHER

- flat, 13/16 x 1-1/2 x 7/32 inch

1шт.

22

181152C1

ROD

- tightener

1шт.

23

460908R1

WASHER

- flat, 17/32 x 1-1/2 x 7/64 inch

1шт.

24

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

25

194652C1

PIVOT

BAR - rod, trunnion

1шт.

26

391745R1

SPRING

- rod

1шт.

27

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 9/64 inch

1шт.

28

181196C2

PULLEY

- driven, 10 inch OD

1шт.

29

25234R1

BOLT,Hex, 5/16" - 18 x 2 1/4", Gr 8

- hex, 5/16 x 2-1/4 inch, Grade 8

1шт.

30

27326R1

WASHER,.344" x 11/16" x .089", HDN

- flat, 11/32 x 11/16 x 3/32 inch

1шт.

31

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

32

1303034C1

SHIELD

SUPPORT - drive

1шт.

33

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted, 5/16 NC x 3/4 inch

3шт.

34

1321158C1

SPACER

- shaft, 1-1/4 x 1-1/32 x 1-5/64 inch

1шт.

35

455749R1

SPACER,1" Pipe x .469"

- shaft, 1 x 15/32 inch

1шт.

36

1968505C1

SHAFT

- drive

1шт.

37

577139R1

LOCK PIN,3/8" x 1 1/2", Slotted

Pin, 3/8" x 1 1/2", Slotted

1шт.

38

21742R1

WASHER

- flat, 1-1/16 x 1-1/2 x 1/32 inch

1шт.

40

571424R1

FLANGE

- bearing

4шт.

41

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING - shaft

2шт.

42

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex, 5/16 NC x 3/4 inch

6шт.

43

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

44

REF

INSTRUCTION

BRACKET - drive

1шт.
