Запчасти Case IH 1620 (2-018) - EXHAUST MUFFLER AND PRE-CLEANER (01) - ENGINE

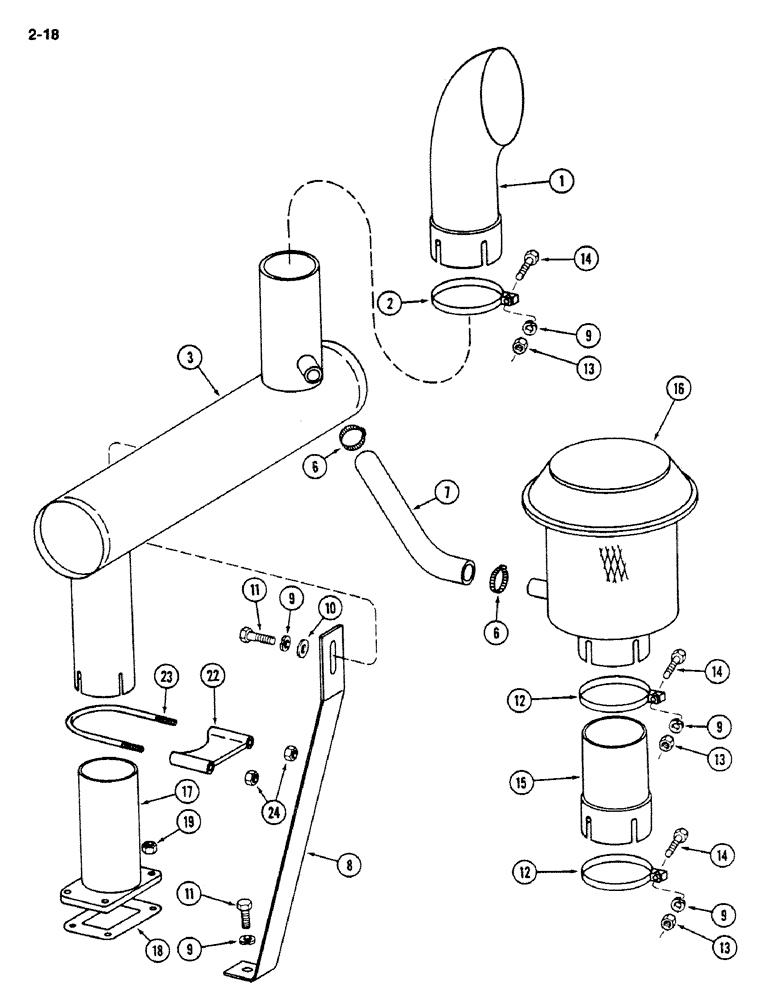

Схема запчастей Case IH 1620 - (2-018) - EXHAUST MUFFLER AND PRE-CLEANER (01) - ENGINE
8
13
18
22
1
9
15
11
3
13
9
13
9
9
12
9
16
2
14
7
24
10
12
11
23
19
6
14
6
14
17

Артикул

Название

Примечание

Количество

1

397178R2

EXHAUST SYSTEM PIPE,76.2 mm OD

PIPE - exhaust elbow

1шт.

2

663432C1

CLAMP,69.85mm - 82.65mm

- exhaust pipe elbow

1шт.

3

1275825C1

MUFFLER

- exhaust

1шт.

6

681896C1

HOSE CLAMP,#20, .81/1.75 Type F Worm, W/liner

CLAMP - hose, No. 20, Type F

2шт.

7

NSS

NOT SOLD SEPARAT

HOSE - exhaust ejector (380 mm) (Cut from 407001R1)

1шт.

8

1275793C1

SUPPORT ASSY.

SUPPORT - muffler

1шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

10

25709R1

WASHER

- flat, 13/32 x 13/16 x 5/64 inch

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

12

650984C1

CLAMP

- pre-cleaner and tube

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

14

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

15

1275822C1

AIR INTAKE TUBE,96.8 mm ID, 95.25 mm OD, 200 mm Length

TUBE - air intake extension

1шт.

16

131052C1

PRESCREENER ASSY.

PRE-CLEANER ASSEMBLY

1шт.

17

1275776C1

PIPE CLAMP

PIPE - muffler inlet

1шт.

18

396389R1

MANIFOLD GASKET

- pipe

1шт.

19

129-123

NUT,3/8"-24, G5

Grade 8 3/8"-24, G5

4шт.

68219C91

KIT

CLAMP KIT - muffler, Includes: Ref. 22 - 24

1шт.

22

535989R1

CLAMP

- muffler

1шт.

23

535992R1

BOLT (SPREADER),3/8" - 16 x 4.8"

U-BOLT - clamp

1шт.

24

535993R1

NUT

- muffler clamp, 3/8 inch

2шт.

Выбрано товаров: 21
