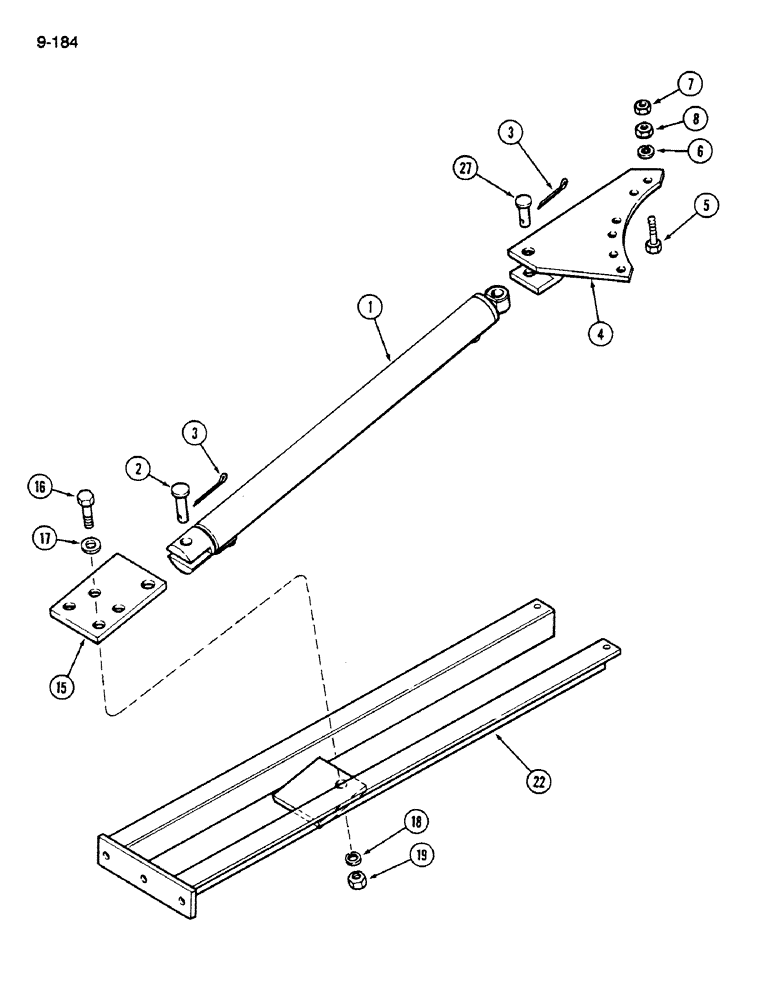

Запчасти Case IH 1620 (9-184) - UNLOADER SWING CYLINDER SUPPORTS (17) - GRAIN TANK & UNLOADER

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - unloader swing, see Figure 8-074

1шт.

2

28196R1

SPLIT PIN/SAFETY PIN

PIN - clevis, 5/8 x 2-1/4 inch

2шт.

3

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

4

1321541C1

SUPPORT

- unloader cylinder

1шт.

5

21901R1

BOLT,Hex, 7/16" - 14 x 2", Gr 8

- hex, 7/16 NC x 2 inch, Grade 8

6шт.

6

366863C1

LOCK WASHER

WASHER - rib lock, 7/16 inch

6шт.

7

25524R1

NUT,7/16"-14, G8

- hex, 7/16 inch NC, Grade 8

6шт.

8

25960R1

JAM NUT,Jam, 7/16"-14, G8

- hex jam, 7/16 inch NC, Grade 8

6шт.

15

1321508C1

PLATE

- cylinder anchor

1шт.

16

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

17

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 9/64 inch

8шт.

18

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

19

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

22

1321619C1

SUPPORT ASSY.

SUPPORT - unloader swing cylinder

1шт.

27

22754R1

CLEVIS PIN,5/8" x 1.844"

PIN, CLEVIS, 5/8" x 1.844"

1шт.
