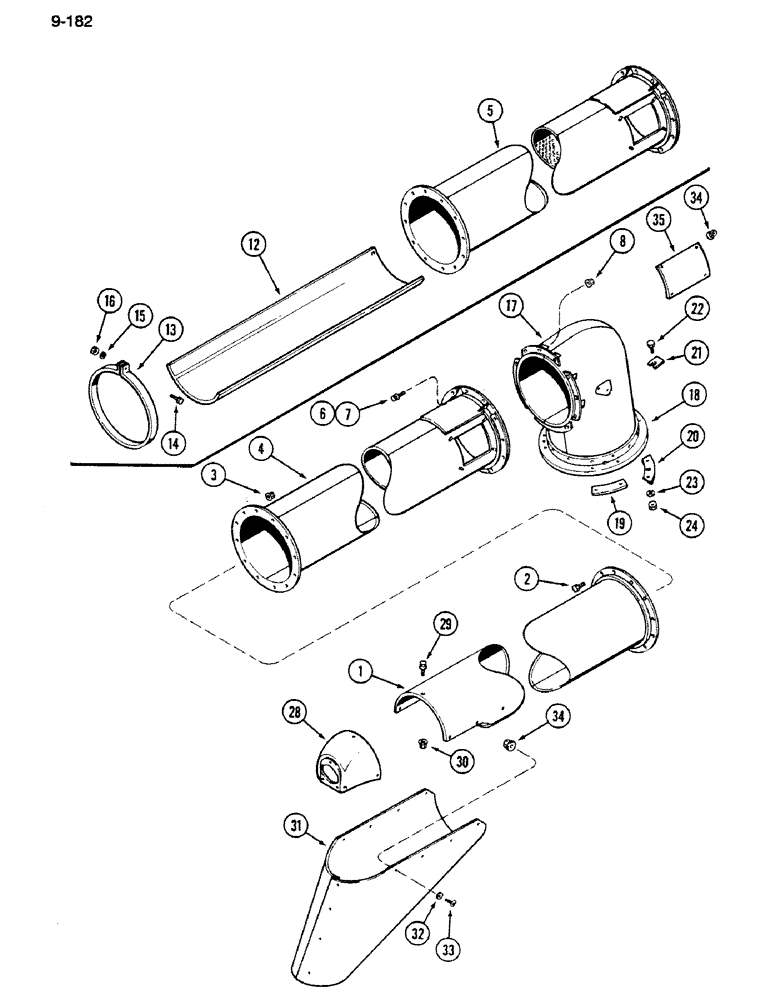

Запчасти Case IH 1620 (9-182) - UNLOADER UPPER TUBE (17) - GRAIN TANK & UNLOADER

1

1317734C1

TUBE,136" Length

- auger, rear

1шт.

2

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW - hex flange, 3/8 NC x 3/4 inch

12шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

12шт.

4

1317738C1

TUBE,2285 mm Length

- auger, front (Not perforated), 89.96 in.

1шт.

5

1317873C1

UNLOADING TUBE,2285 mm Length

TUBE - auger, front (Perforated), 89.96 in.

1шт.

6

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW - hex flange, 3/8 NC x 3/4 inch

10шт.

7

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

2шт.

8

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

12шт.

12

178165C2

COVER

- tube, perforated

1шт.

13

178166C1

CLAMP

- cover

4шт.

14

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

CLAMP - cover

4шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

16

9635082

NUT,5/16" - 18, Gr 5

4шт.

17

193417C93

TUBE

ELBOW ASSEMBLY - tube, Includes: Ref. 18

1шт.

18

193418C3

FLANGE

- ring, elbow

1шт.

19

193472C2

PLATE

BAR - keeper

1шт.

20

186657C2

SUPPORT

- bar, keeper

1шт.

21

151670C1

SHIM

SHIM - washer, keeper

1шт.

22

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-3/4 inch

4шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

28

182837C1

SUPPORT TUBE

CAP - support, tube

1шт.

29

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

3шт.

30

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

3шт.

31

1321150C1

SPOUT, DISCHARGE

DOWNSPOUT - unloader

1шт.

32

106969R1

WASHER

- flat, 11/32 x 1-1/2 x 3/64 inch

8шт.

33

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

8шт.

34

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

8шт.

35

178158C1

PLATE

- inspection, tube

1шт.
