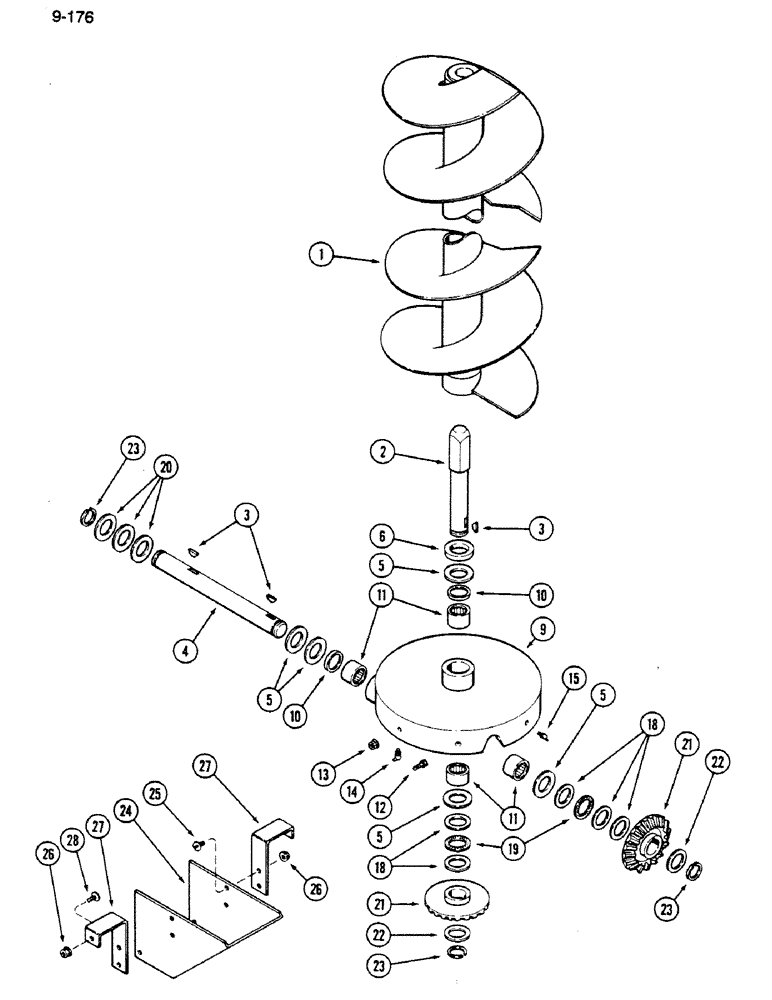

Запчасти Case IH 1620 (9-176) - GRAIN TANK UNLOADER LOWER AUGER (17) - GRAIN TANK & UNLOADER

1

194691C1

AUGER

- unloader, lower

1шт.

2

1327739C1

SHAFT

- vertical

1шт.

3

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

Shaft #D, 5/16" x 1 1/4", HT

3шт.

4

1327738C2

SHAFT

- horizontal

1шт.

5

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

- flat, gear shaft

5шт.

6

183490C1

WASHER

WASHER - upper, vertical shaft

1шт.

9

1327976C91

HOUSING

ASSEMBLY - drive, lower, Includes: Ref. 10 and 11

1шт.

10

157724C91

OIL SEAL

- oil, auger

2шт.

11

188126C91

NEEDLE BEARING,Needle, 34.91mm ID x 44.46mm OD x 25.4mm W

BEARING - needle

4шт.

12

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

7шт.

12

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

2шт.

13

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

9шт.

14

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Taper 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.

15

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - lube, 45 degree 1/4 inch taper drive

1шт.

18

1327732C1

THRUST WASHER,34.92mm ID x 52.37mm OD x 2.42mm Thk

- thrust, gear, 1-13/32 x 2 x 3/32 inch

5шт.

19

607146R91

THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W

- thrust, gear

2шт.

20

162679C1

WASHER

WASHER - flat, 1-13/32 x 2-1/4 x 1/16 inch

3шт.

21

186517C1

GEAR-SET

GEAR SET - auger, lower (Set of 2)

1шт.

22

188446C1

WASHER,35.71mm ID x 50.8mm OD x 0.76mm Thk

- flat, 1-3/32 x 2 x 1/32 inch

1шт.

23

A21619

CIRCLIP

RING - snap

3шт.

24

186137C2

SUPPORT

SHIELD - gear unloader

1шт.

25

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

4шт.

26

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

27

186138C1

SUPPORT

- shield

2шт.

28

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.
