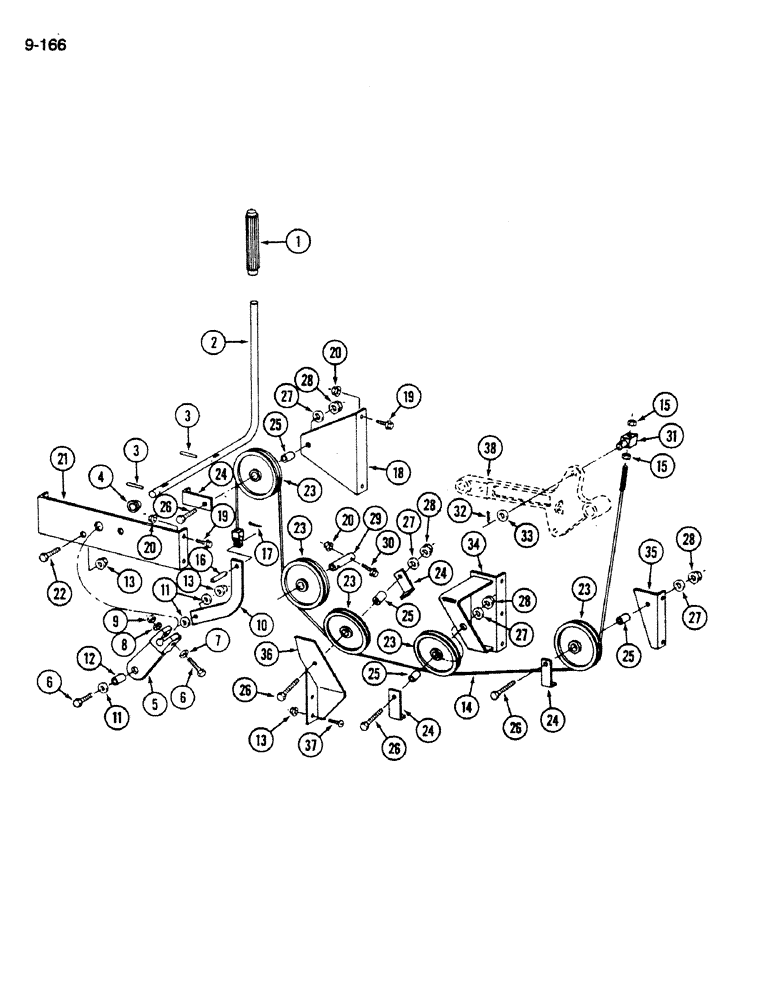

Запчасти Case IH 1620 (9-166) - GRAIN TANK UNLOADER CONTROL (17) - GRAIN TANK & UNLOADER

1

193194C2

HANDLE

GRIP - lever

1шт.

2

193196C1

ROD

LEVER - control

1шт.

3

138-303

LOCK PIN,3/16" x 1 1/8", Slotted

PIN - roll, 3/16 x 1-1/4 inch

2шт.

4

193201C1

BUSHING

- lever

2шт.

5

161650C2

ARM

- control

1шт.

6

24842R1

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

2шт.

7

18465D

WASHER

- arm

1шт.

8

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

9

25522R1

NUT,3/8"-16, G8

- hex, 3/8 inch, Grade 8

1шт.

10

195549C1

LINK

- control

1шт.

11

25544R1

WASHER,13/32" x 13/16" x .134", HDN

- flat, 13/32 x 13/16 x 9/64 inch

5шт.

12

561277R1

SPACER,5/8" Tube x 1/2"

- link, 5/8 x 7/16 inch

1шт.

13

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange, 3/8 inch NC

5шт.

14

195550C1

CABLE

- control, 114 inch

1шт.

15

129-122

NUT,5/16"-24, G5

2шт.

16

24660R1

CLEVIS PIN,5/16" x .719"

PIN - clevis, 5/16 x 23/32 inch

1шт.

17

132-321

COTTER PIN,3/32" x 1"

PIN - cotter, 3/32 x 3/4 inch

1шт.

18

195551C1

SUPPORT

BRACKET - pulley

1шт.

19

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange, 5/16 NC x 3/4 inch

6шт.

20

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange, 5/16 inch NC

8шт.

21

195050C2

CHANNEL

BRACKET - lever

1шт.

22

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex, 3/8 NC x 1-1/4 inch

2шт.

23

193208C1

PULLEY

- cable, 2-1/2 inch

5шт.

24

193209C1

CLIP

SUPPORT - pulley

4шт.

25

159716C1

SPACER,3/4" Tube x 5/8"

BUSHING - spacer, 3/4 x 5/8 inch

4шт.

26

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

27

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 9/64 inch

4шт.

28

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, 1/2 inch

4шт.

29

195553C1

PIN

- pulley

1шт.

30

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

- hex flange, 5/16 NC x 1-1/4 inch

2шт.

31

194893C1

PIVOT

- cable

1шт.

32

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

33

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

1шт.

34

181407C1

SUPPORT ASSY.

SUPPORT - center

1шт.

35

182628C1

SUPPORT

- rear

1шт.

36

181406C1

SUPPORT

- front

1шт.

37

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW - slotted, 3/8 NC x 1 inch

2шт.

38

REF

INSTRUCTION

ARM - belt tightener, see Figure 9-170

1шт.
