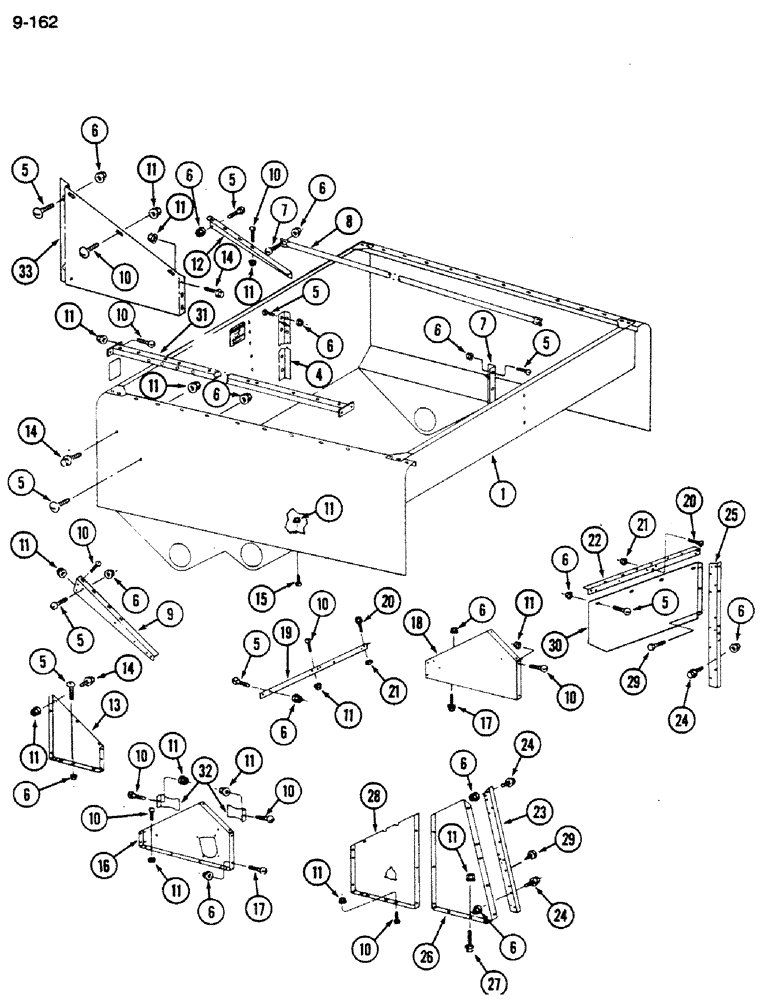

Запчасти Case IH 1620 (9-162) - GRAIN TANK (17) - GRAIN TANK & UNLOADER
№
Артикул
Название
Примечание
Количество
1
1319632C92
TANK
ASSEMBLY - grain (With decals)
1шт.
4
192765C1
SUPPORT
ANGLE - front
1шт.
6
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
- hex flange, 3/8 inch NC
52шт.
7
181682C2
SUPPORT
ANGLE - rear
1шт.
8
192767C1
ROD
- tie
1шт.
9
192768C2
SUPPORT
- diagonal, left
1шт.
10
135270
SERRATED SCREW,5/16" - 18 x 3/4"
- slotted, 5/16 NC x 3/4 inch
48шт.
11
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
- hex flange, 5/16 inch NC
60шт.
12
192769C2
SUPPORT
- diagonal, right
1шт.
13
192770C3
COVER
- front, left
1шт.
14
202107C1
BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"
- hex flange, 5/16 NC x 3/4 inch
6шт.
15
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
- slotted, 5/16 NC x 1/2 inch
3шт.
16
192771C2
SUPPORT
- center, left
1шт.
17
541313R1
BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"
- hex flange, 3/8 NC x 3/4 inch
12шт.
18
192772C2
SUPPORT
- center, right
1шт.
19
194707C1
ANGLE
- bottom, left
1шт.
20
174985C1
BOLT,Hex Serr, 1/2" - 13 x 1"
- hex, 1/2 NC x 1 inch
2шт.
21
131-930
FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5
- hex flange lock, 1/2 inch NC
2шт.
22
194708C1
ANGLE
SUPPORT - bottom, right
1шт.
23
194710C1
SUPPORT
- rear vertical, left
1шт.
24
154273C1
BOLT,Hex Serr, 3/8" - 16 x 1", Spcl
SCREW - slotted lock, 3/8 NC x 1 inch
5шт.
25
194711C1
SUPPORT
- rear vertical, right
1шт.
26
194709C1
SUPPORT
- rear left
1шт.
27
256873
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
3шт.
28
193471C1
SUPPORT
COVER - rear left
1шт.
29
199953C1
SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"
SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"
1шт.
29
25756R1
SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 5/8"
SCREW - hex washer head top, 5/16 NC x 5/8 inch
6шт.
30
194706C1
SUPPORT
COVER - tank, right
1шт.
31
194704C1
SUPPORT
- tank
1шт.
32
193531C1
SUPPORT
PLATE - filler
4шт.
33
186448C1
COVER
- front
1шт.
Выбрано товаров: 32
