(9-160) - ELEVATOR JACKSHAFT DRIVE (CONTD)

Запчасти Case IH 1620 (9-160) - ELEVATOR JACKSHAFT DRIVE (CONTD) (16) - GRAIN ELEVATORS & AUGERS

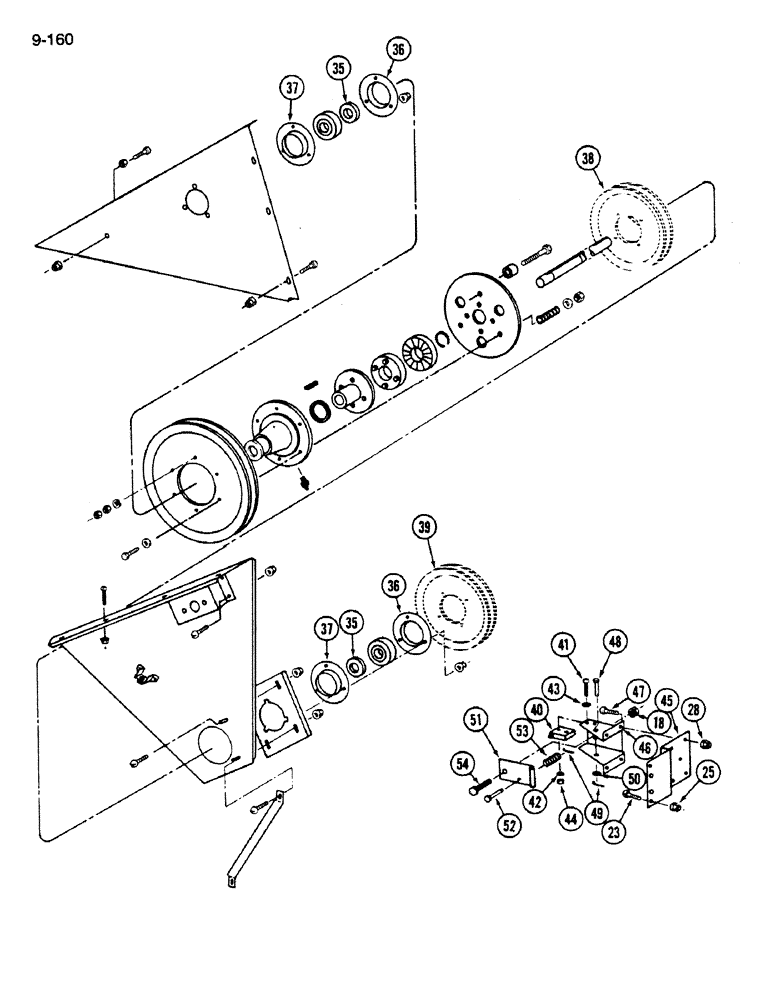

Схема запчастей Case IH 1620 - (9-160) - ELEVATOR JACKSHAFT DRIVE (CONTD) (16) - GRAIN ELEVATORS & AUGERS
40
38
37
52
43
37
25
41
36
28
42
53
36
45
18
51
39
47
49
48
54
50
35
23
44
46
35
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

35

455104R11

COLLAR

- locking

2шт.

36

939462R91

FLANGE

- bearing

2шт.

37

473092R1

FLANGED BEARING

- bearing

2шт.

38

REF

INSTRUCTION

PULLEY - grain elevator drive

1шт.

39

REF

INSTRUCTION

PULLEY - tailings elevator drive

1шт.

40

574649R91

SWITCH

- alarm, (if equipped)

1шт.

41

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

- cross slotted, No. 6 x 1 inch, (if equipped)

2шт.

42

492-11006

LOCK WASHER,#6

Washer, Lock, , If equipped #6

2шт.

43

103337

WASHER,#6

If equipped #6

2шт.

44

134530

NUT,Hex, #6 - 32

If equipped #6-32

2шт.

45

192746C1

SUPPORT

- switch, (if equipped)

1шт.

46

167323C1

SUPPORT

- switch, (if equipped)

1шт.

47

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted, 5/16 NC x 1/2 inch, (if equipped)

4шт.

48

21963R1

HEADED PIN,1/4" x 2 1/2"

PIN - headed, 1/4 x 2-1/2 inch, (if equipped)

1шт.

49

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4", (if equipped)

2шт.

50

21870R1

WASHER

- flat, 17/64 x 3/4 x 3/64 inch, (if equipped)

3шт.

51

167324C1

HINGE

STRIP - switch, (if equipped)

1шт.

52

23099R1

HEADED PIN,5/16" x 3"

PIN - headed, 5/16 x 3 inch, (if equipped)

1шт.

53

M296

SPRING

- return, (if equipped)

1шт.

54

19765R1

SCREW

BOLT - hex, 3/8 x 1-1/4 inch, (if equipped)

1шт.
