Запчасти Case IH 1620 (9-150) - TAILINGS ELEVATOR HEAD (16) - GRAIN ELEVATORS & AUGERS

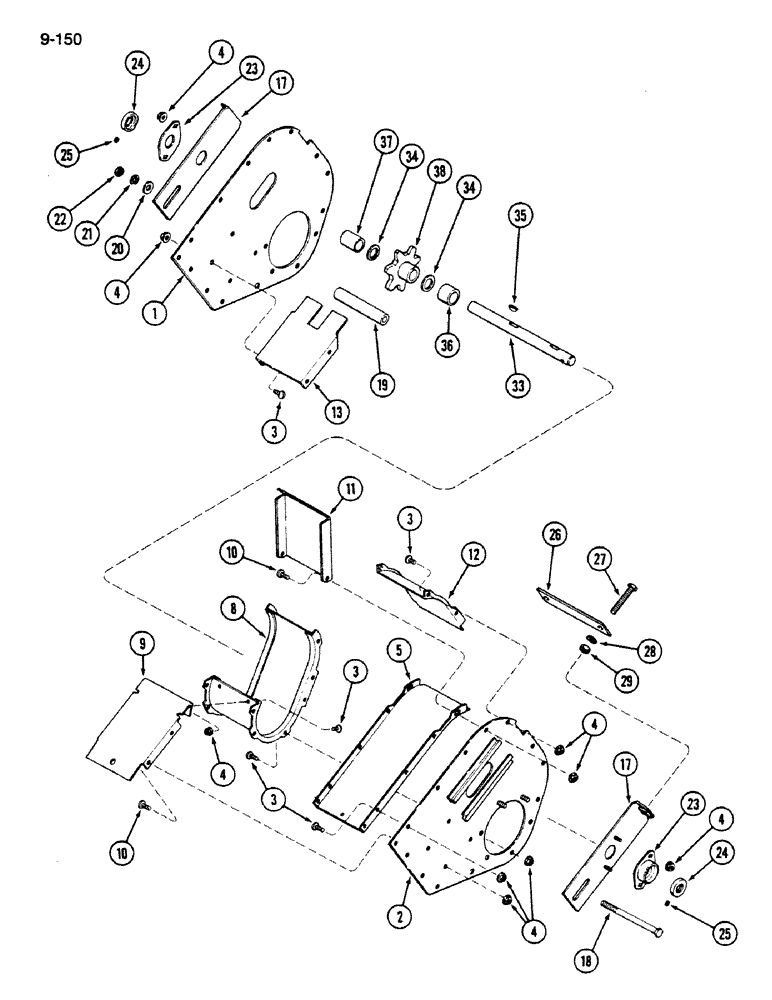

Схема запчастей Case IH 1620 - (9-150) - TAILINGS ELEVATOR HEAD (16) - GRAIN ELEVATORS & AUGERS
23
17
11
22
5
19
36
4
34
20
4
4
21
26
4
10
24
37
23
25
13
33
3
28
9
18
25
4
4
12
3
10
3
29
3
1
17
34
35
8
24
38
2
27

Артикул

Название

Примечание

Количество

1

181366C1

SIDE PLATE

SIDE - head, elevator left

1шт.

2

181367C1

SIDE PLATE

SIDE - head, elevator right

1шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

20шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

29шт.

5

191783C1

TOP COVER

SUPPORT - top, head

1шт.

8

188119C1

TROUGH

- head

1шт.

9

191782C1

SUPPORT

- bottom

1шт.

10

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

11

186398C1

SUPPORT

- upper, head

1шт.

12

191776C1

COVER

COVER - support, head

1шт.

13

181327C1

BOTTOM

SUPPORT - bottom, head

1шт.

17

181364C1

SUPPORT

- shaft, head

2шт.

18

24666R1

BOLT,Hex, 5/16" - 18 x 7", Gr 2

1шт.

19

27829R1

SPACER,9.2mm ID x 13.72mm OD x 147.6mm L

Head 1/4" Pipe x 5 13/16"

1шт.

20

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

22

9635082

NUT,5/16" - 18, Gr 5

1шт.

23

214490C91

BALL BEARING,25.4mm ID

BEARING ASSEMBLY - shaft

2шт.

24

455102R21

COLLAR

ASSEMBLY - locking, Includes: Ref. 25

2шт.

25

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

1шт.

26

181311C1

BAR

- tightener

1шт.

27

667486R1

BOLT

- hex cap, 1/2 NC x 3-1/2 inch

2шт.

28

25710R1

WASHER

- flat, 17/32 x 1 x 7/64 inch

4шт.

29

28588R1

WASHER

NUT - hex, 1/2 inch NC

2шт.

33

181312C1

SHAFT

- head

1шт.

34

21789R1

WASHER

- flat, 1-1/32 x 1-1/4 x 3/64 inch

1шт.

35

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Shaft #15, 1/4" x 1", HT

1шт.

36

27828R1

SPACER,26.6mm ID x 33.4mm OD x 39.7mm L

Sprocket 1" Pipe x 1 9/16"

1шт.

37

516327R1

SPACER,26.6mm ID x 33.4mm OD x 69.8mm L

Sprocket 1" Pipe x 2 3/4"

1шт.

38

168683C1

SPROCKET

- drive, chain

1шт.

Выбрано товаров: 30
