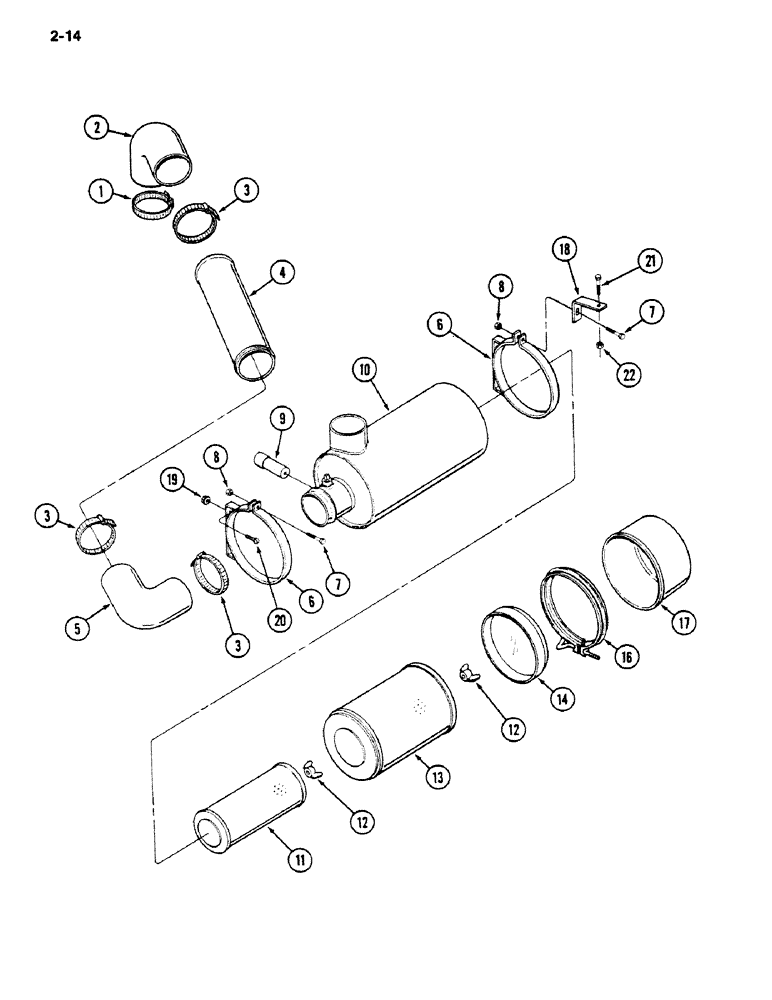

Запчасти Case IH 1620 (2-014) - AIR CLEANER SYSTEM (01) - ENGINE

1

146569C1

CLAMP

- hose, No. 56 shoe, Type F

1шт.

2

146407C1

ELBOW

- manifold inlet

1шт.

3

146569C1

CLAMP

- hose, No. 56 shoe, Type F

3шт.

4

1312631C1

AIR INTAKE TUBE

TUBE - air cleaner outlet

1шт.

5

1312629C1

ELBOW UNION

ELBOW - air cleaner outlet

1шт.

6

603697C91

CLAMP

BAND - air cleaner mounting

2шт.

7

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

2шт.

9

582214C1

INDICATOR

- air restriction

1шт.

10

146456C91

CLEANER ASSY.

CLEANER ASSEMBLY - air (dry type), Includes: Ref. 11 - 17

1шт.

11

529852R5

AIR FILTER

ELEMENT - safety

1шт.

12

381342R92

WING NUT

NUT ASSEMBLY - element

2шт.

13

690049C2

AIR CLEANER

ELEMENT - primary

1шт.

14

404193R1

BAFFLE

ASSEMBLY

1шт.

16

130879HB

CLAMP

ASSEMBLY

1шт.

17

404194R1

COVER

CUP ASSEMBLY

1шт.

18

1317978C2

SUPPORT

- air cleaner

1шт.

19

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, flange lock, 3/8 inch NC

4шт.

20

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 x 1 inch

4шт.

21

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

22

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, flange lock, 5/16 inch NC

1шт.
