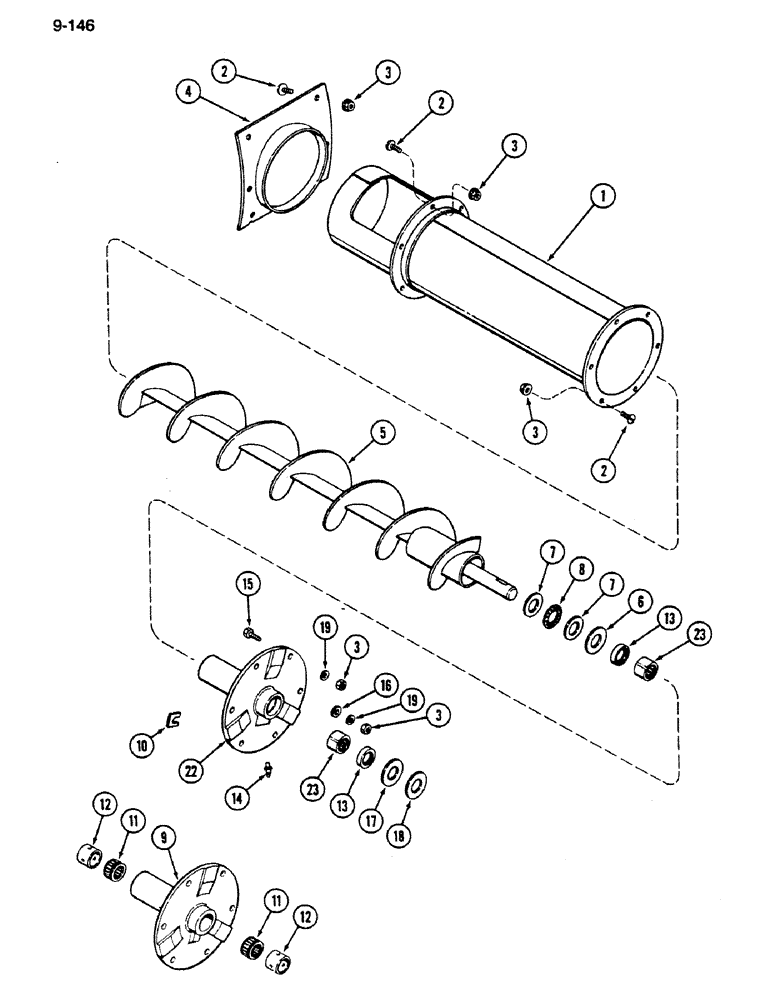

Запчасти Case IH 1620 (9-146) - TAILINGS DELIVERY AUGER (16) - GRAIN ELEVATORS & AUGERS

1

186114C1

TUBE

- auger

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

15шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

17шт.

4

185192C1

FLANGE

- tube

1шт.

5

186134C1

AUGER

- tailings

1шт.

6

25847R1

WASHER

- flat, 1-1/16 x 2 x 7/64 inch

1шт.

7

T38017

WASHER,25.45mm ID x 39.42mm OD x 2.41mm Thk

- thrust

2шт.

8

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Auger

1шт.

9

192783C1

BEARING HOUSING,2" ID x 8" OD x 6.3"

HUB - bearing, Serial Range: -JJC0032001

1шт.

10

151670C1

SHIM

- shim 0.036 in

1шт.

11

588997R1

BUSHING,34.99mm ID x 36.55mm OD x 25.27mm L

- hub, Serial Range: -JJC0032001

2шт.

12

568029R91

BEARING ASSY,25.4mm ID x 35mm OD x 25.4mm W

BEARING - hub, Serial Range: -JJC0032001

2шт.

13

564592R91

SEAL,23.5mm ID x 36.6mm OD x 6.5mm Thk

- hub

2шт.

14

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - grease, 1/4 inch x 45 degree

1шт.

15

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

6шт.

16

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

6шт.

17

21213R1

WASHER

- flat, 1-1/32 x 2 x 7/64 inch

1шт.

18

21162R1

WASHER

- flat, 1-1/32 x 2 x 3/64 inch

1шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

22

1324840C1

BEARING HOUSING,36.525 mm ID x 50 mm OD x 43, 160 mm

- bearing, Start Serial: JJC0032001

1шт.

23

574940R91

NEEDLE BEARING,Needle, 25.39mm ID x 33.35mm OD x 25.4mm W

BEARING - hub, Start Serial: JJC0032001

2шт.
