(9-144) - GRAIN ELEVATOR DRIVE (CONTD)

Запчасти Case IH 1620 (9-144) - GRAIN ELEVATOR DRIVE (CONTD) (16) - GRAIN ELEVATORS & AUGERS

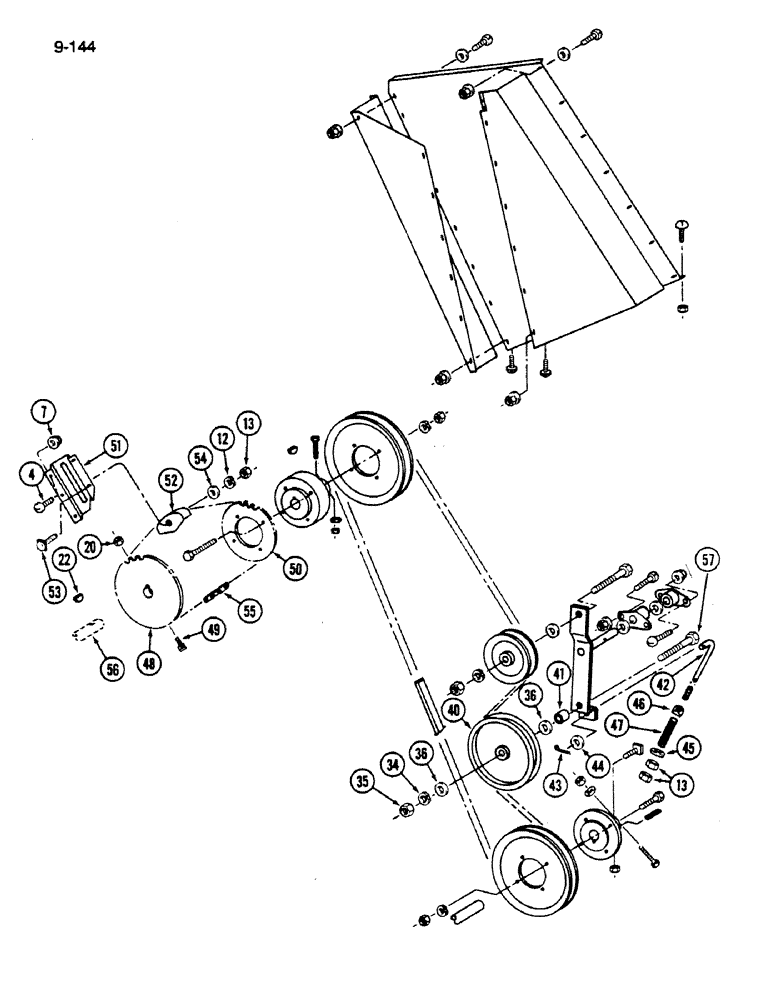

Схема запчастей Case IH 1620 - (9-144) - GRAIN ELEVATOR DRIVE (CONTD) (16) - GRAIN ELEVATORS & AUGERS
45
46
56
42
12
35
36
13
44
22
36
48
47
41
34
50
49
51
54
13
7
40
57
43
20
53
55
52
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

40

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

- idler, 8-3/4 inch OD

1шт.

41

201106C1

SPACER

- pipe, 11/16 x 1 x 7/8 inch

1шт.

42

182579C1

ROD

- tightener

1шт.

43

132-312

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

44

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

3шт.

45

22770R1

WASHER

- flat, 17/32 x 1-1/2 x 5/32 inch

1шт.

46

194652C1

PIVOT

- rod

1шт.

47

155311C1

SPRING

- tightener

1шт.

48

182556C1

SPROCKET ASSY.

SPROCKET - drive, 43 teeth

1шт.

49

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

BOLT - square head set, 5/16 x 3/4 inch

2шт.

50

182564C1

DRIVE SPROCKET

SPROCKET - drive, 33 teeth

1шт.

51

182588C1

SUPPORT

CHANNEL - tightener

1шт.

52

936878R1

BLOCK

- tightener

1шт.

53

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/2 inch

1шт.

54

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

55

NSS

NOT SOLD SEPARAT

CHAIN - drive (Use 75 link from roll marked 1790D, two links 1303D and one link 1301D)

1шт.

56

REF

INSTRUCTION

SHAFT - grain delivery auger, see Figure 9-126

1шт.

57

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.
