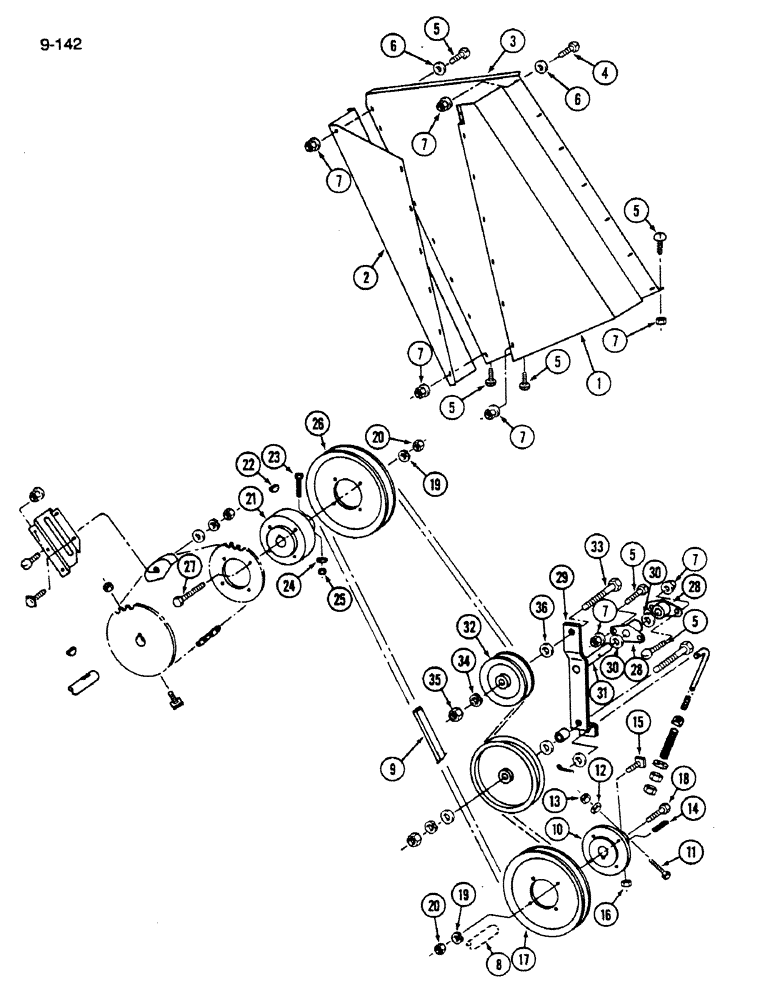

Запчасти Case IH 1620 (9-142) - GRAIN ELEVATOR DRIVE (16) - GRAIN ELEVATORS & AUGERS

1

182565C1

SUPPORT

SHIELD - inner, upper

1шт.

2

182567C1

SUPPORT

SHIELD - inner, lower

1шт.

3

182566C1

SUPPORT

SHIELD - outer

1шт.

4

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

32шт.

5

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

18шт.

6

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

6шт.

7

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

50шт.

8

REF

INSTRUCTION

JACKSHAFT - elevator drive, see Figure 9-158

1шт.

9

182619C1

BELT,22.25 mm W x 3882.69 mm L

V-BELT , Drive (Grain and corn) 22.25 mm W x 3882.69 mm L

1шт.

9

181433C1

BELT,22.25mm W x 4092.69mm L

V-BELT , Drive (Rice) 22.25 mm W x 4092.69 mm L

1шт.

10

182650C1

HUB

- drive

1шт.

11

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

14

586879R1

KEY

- parallel, 5/16 x 2 inch

1шт.

15

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

BOLT - square head set, 5/16 NC x 3/4 inch

1шт.

16

124824

NUT,Hex, 5/16" - 18

- hex jam, 5/16 inch NC

1шт.

17

1303018C1

PULLEY ASSY.

PULLEY - drive, 9-3/4 inch OD

1шт.

18

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

20

9635082

NUT,5/16" - 18, Gr 5

10шт.

21

182563C1

HUB

- driven

1шт.

22

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

23

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

26

1303020C1

PULLEY

- driven, 10-1/2 inch OD

1шт.

27

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

4шт.

28

A63366

SPHERICAL BEARING,19mm ID

BEARING - tightener rod

2шт.

29

182557C1

TIGHTENER

- belt

1шт.

30

21753R1

WASHER

- flat, 25/32 x 1-1/2 x 3/64 inch

2шт.

31

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

32

1303023C1

PULLEY

- idler, 5-1/4 inch OD

1шт.

33

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

34

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

35

129-107

NUT,5/8"-11, G5

2шт.

36

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/64 inch

6шт.
