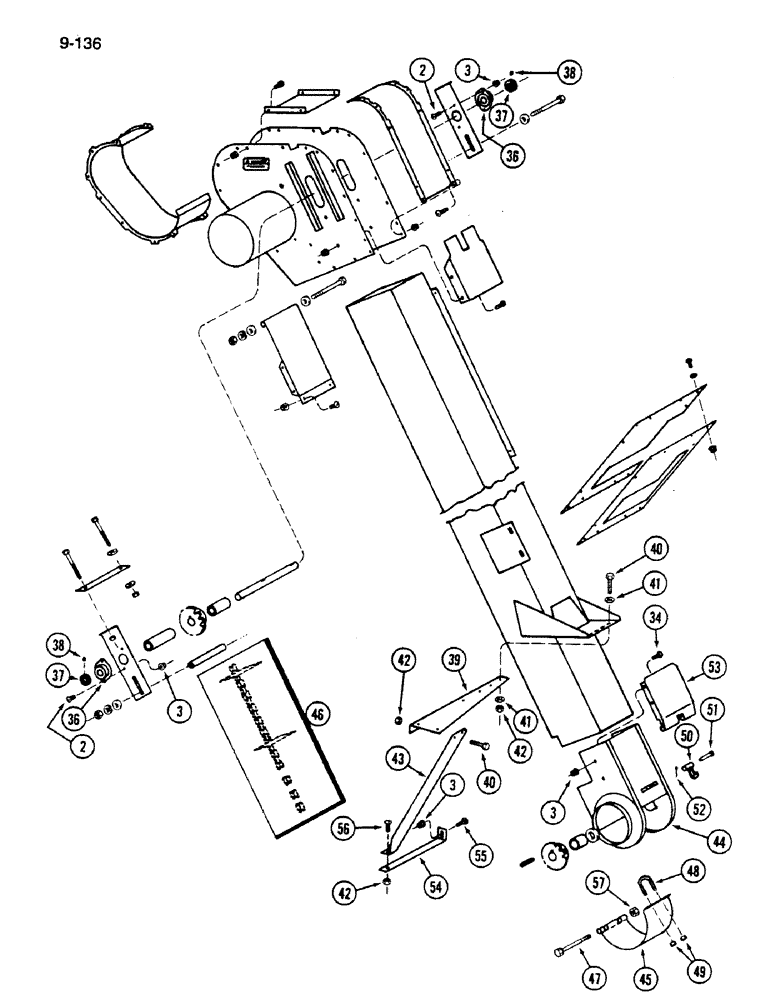

Запчасти Case IH 1620 (9-136) - GRAIN ELEVATOR (CONTD) (16) - GRAIN ELEVATORS & AUGERS

36

214490C91

BALL BEARING,25.4mm ID

BEARING - head shaft

2шт.

37

455102R21

COLLAR

- bearing locking, Includes: Ref. 38

2шт.

38

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

2шт.

39

186166C1

SUPPORT

BRACKET - elevator, upper

1шт.

40

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, 3/8 NC x 1 inch

7шт.

41

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/64 inch

1шт.

42

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

7шт.

43

186167C1

SUPPORT

BRACKET - elevator lower

1шт.

44

186225C2

BOOT

- elevator

1шт.

45

1310250C1

DOOR ASSY.

DOOR - elevator boot (Non-perforated)

1шт.

45

186309C1

DOOR

- elevator boot (Perforated)

1шт.

46

REF

INSTRUCTION

CONVEYOR ASSEMBLY - grain, see Figure 9-138

1шт.

47

113-134

BOLT,Hex, 5/16" - 18 x 7-1/2", Gr 5

- hex, 5/16 NC x 7-1/2 inch

1шт.

48

664360R1

BOLT,U, 1/4" - 20 x 69.65"

- door

1шт.

49

86625061

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC

4шт.

50

155909C1

LATCH

- door

1шт.

51

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN - headed, 1/4 x 1-1/4 inch

1шт.

52

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

53

186233C1

HINGE

END - false bottom

1шт.

54

186733C1

SUPPORT

- lower

1шт.

55

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

1шт.

56

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

1шт.

57

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.
