Запчасти Case IH 1620 (9-130) - GRAIN AUGER TROUGH, PERFORATED (16) - GRAIN ELEVATORS & AUGERS

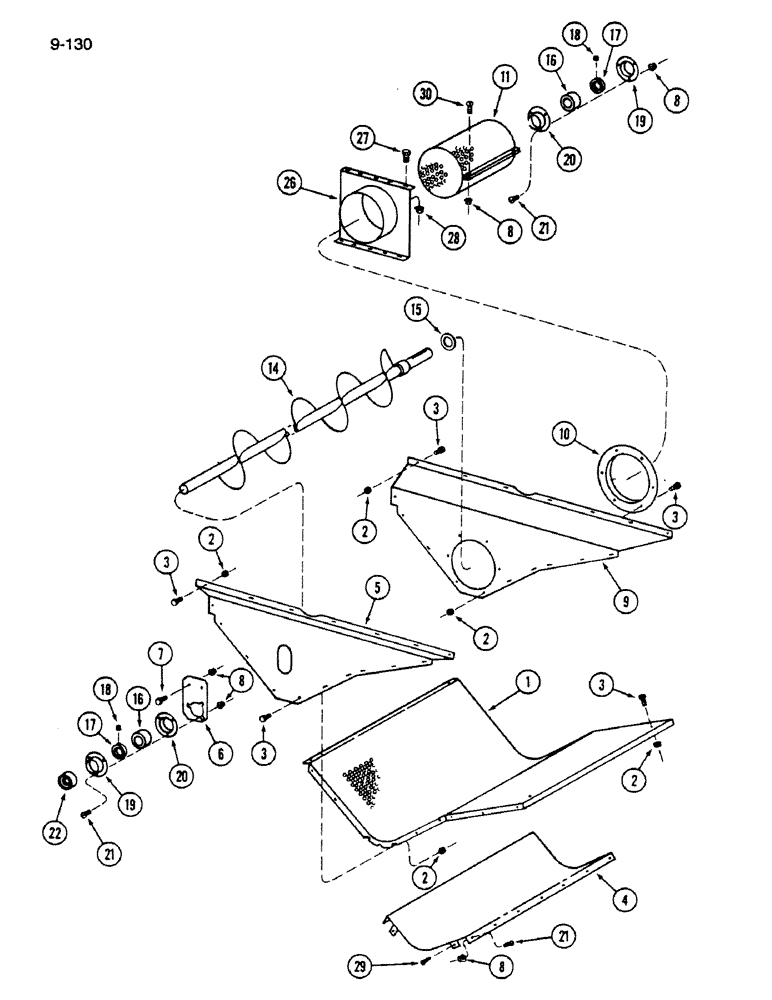

Схема запчастей Case IH 1620 - (9-130) - GRAIN AUGER TROUGH, PERFORATED (16) - GRAIN ELEVATORS & AUGERS
17
4
11
10
30
21
16
26
6
3
3
3
14
18
3
16
22
27
1
19
20
5
9
2
8
29
8
20
18
8
2
3
2
7
2
19
21
28
15
2
8
17
21

Артикул

Название

Примечание

Количество

1

186618C1

TROUGH

- auger

1шт.

2

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - hex lock, 5/16 inch NC

38шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

38шт.

4

186615C1

COVER

- trough

1шт.

5

182553C1

SUPPORT ASSY.

SUPPORT - trough, left

1шт.

6

182555C1

SUPPORT

PLATE - auger access

1шт.

7

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

8

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

24шт.

9

191715C2

SUPPORT

- trough, right

1шт.

10

194688C1

RING

- support

1шт.

11

186310C2

SHIN

CLAMP - support, Replaced: 186310C1, length of clamp changed

1шт.

14

1319192C1

AUGER

- grain

1шт.

15

22050R1

WASHER

- flat, 1-9/32 x 1-3/4 x 3/64 inch

1шт.

16

482303R92

BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"

- auger

2шт.

17

455102R21

COLLAR

- locking

2шт.

18

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

2шт.

19

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

FLANGE - auger bearing

2шт.

20

937517R1

FLANGE

- auger bearing, grooved

2шт.

21

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

20шт.

22

178801C1

COLLAR

- sensor

1шт.

26

185254C1

SUPPORT

- main sill

1шт.

27

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, Grade 8

10шт.

28

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC, Grade 9

10шт.

29

27569R1

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 1"

SCREW - hex washer head tap 5/16 x 1 inch

4шт.

30

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

2шт.

Выбрано товаров: 25
