Запчасти Case IH 1620 (9-128) - GRAIN AUGER TROUGH, NONPERFORATED (16) - GRAIN ELEVATORS & AUGERS

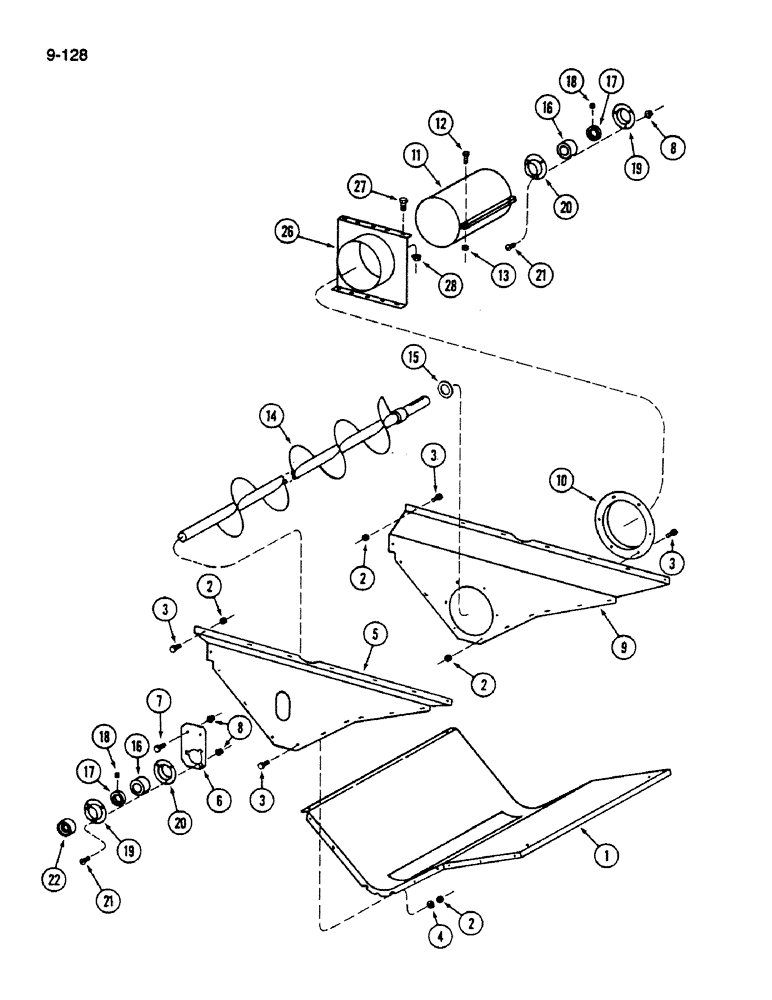

Схема запчастей Case IH 1620 - (9-128) - GRAIN AUGER TROUGH, NONPERFORATED (16) - GRAIN ELEVATORS & AUGERS
8
19
18
13
11
10
2
17
3
12
22
4
20
1
3
21
2
2
16
14
3
6
20
26
7
18
8
9
2
28
19
15
3
21
17
16
5
27

Артикул

Название

Примечание

Количество

1

193787C1

TROUGH

- auger

1шт.

2

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - hex prevailing torque, 5/16 inch NC

36шт.

3

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

36шт.

4

134238R1

WASHER

- flat, 11/32 x 1 x 3/64 inch

4шт.

5

182553C1

SUPPORT ASSY.

SUPPORT - trough, left

1шт.

6

182555C1

SUPPORT

PLATE - auger access

1шт.

7

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

8

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

8шт.

9

191715C2

SUPPORT

- trough, right

1шт.

10

194688C1

RING

- support

1шт.

11

186173C2

SHIN

CLAMP - support, Replaced: 186173C1, length of clamp changed

1шт.

12

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

13

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

14

1319192C1

AUGER

- grain

1шт.

15

22050R1

WASHER

- flat, 1-9/32 x 1-3/4 x 3/64 inch

1шт.

16

482303R92

BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"

- auger

2шт.

17

455102R21

COLLAR

- locking

2шт.

18

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

2шт.

19

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

FLANGE - auger bearing

2шт.

20

937517R1

FLANGE

- auger bearing, grooved

2шт.

21

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

4шт.

22

178801C1

COLLAR

- sensor

1шт.

26

185254C1

SUPPORT

- main sill

1шт.

27

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, Grade 8

10шт.

28

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC, Grade 8

10шт.

Выбрано товаров: 25
