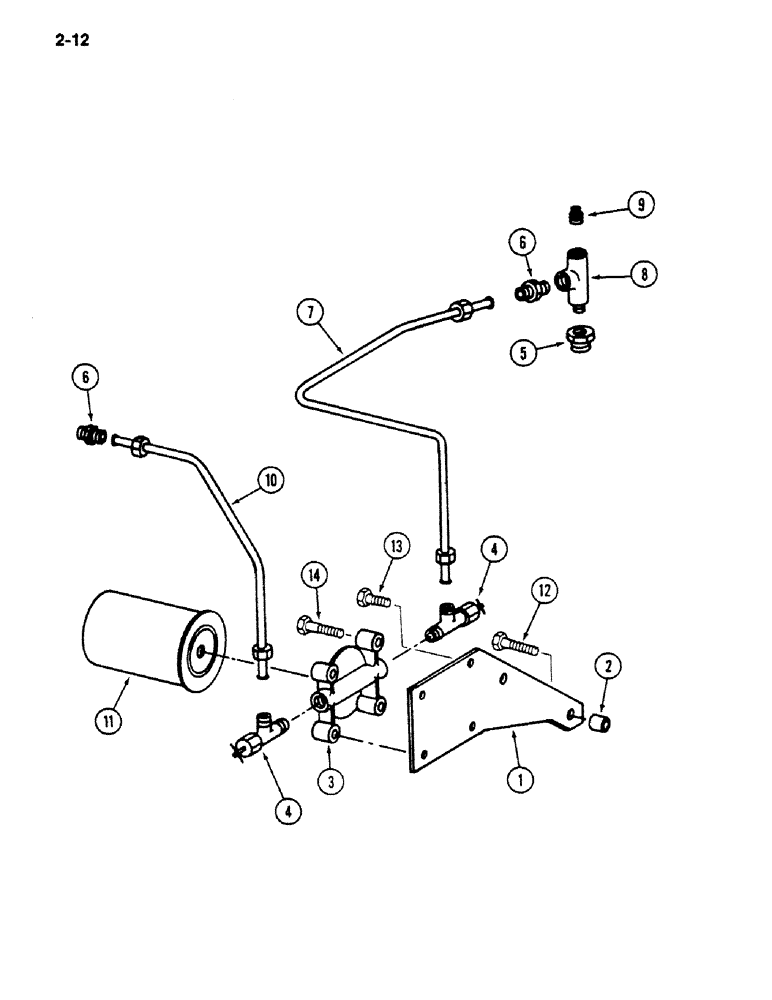

Запчасти Case IH 1620 (2-012) - COOLANT FILTER AND CONDITIONER (01) - ENGINE

1

131492C2

SUPPORT

- filter base

1шт.

2

567987R1

SPACER,10.3mm ID x 15.88mm OD x 17.5mm L

- 5/8 x 11/16 inch tube

1шт.

3

A152821

HEAD

BASE - coolant conditioner

1шт.

4

121894C1

FAUCET,3/8" - 18 NPTF x 5/8" - 24

VALVE - shutoff

2шт.

5

175778H1

ADAPTER

- 1/2 to 3/8 inch pipe

2шт.

6

333773R1

CONNECTOR, ELEC

CONNECTOR - straight

2шт.

7

REF

INSTRUCTION

TUBE - coolant inlet

1шт.

Use 24 inches of 3/8" OD copper tubing from 50 foot roll of 995063R1, two nuts, 265205R1 and two sleeves, 265204R1.

1шт.

8

217-1063

TEE,3/8" - 18 Female x 3/8" - 18 Male Run

- 3/8-18 internal/external/internal pipe

1шт.

9

20972R1

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8 - 18

1шт.

10

REF

INSTRUCTION

TUBE - coolant outlet

1шт.

Use 14 inches of 3/8" OD copper tubing from 50 foot roll of 995063R1, two nuts, 265205R1 and two sleeves, 265204R1.

1шт.

11

A151931

FILTER

ELEMENT - coolant conditioner

1шт.

12

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

13

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

14

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.
