Запчасти Case IH 1620 (9-126) - GRAIN DELIVERY AUGER (16) - GRAIN ELEVATORS & AUGERS

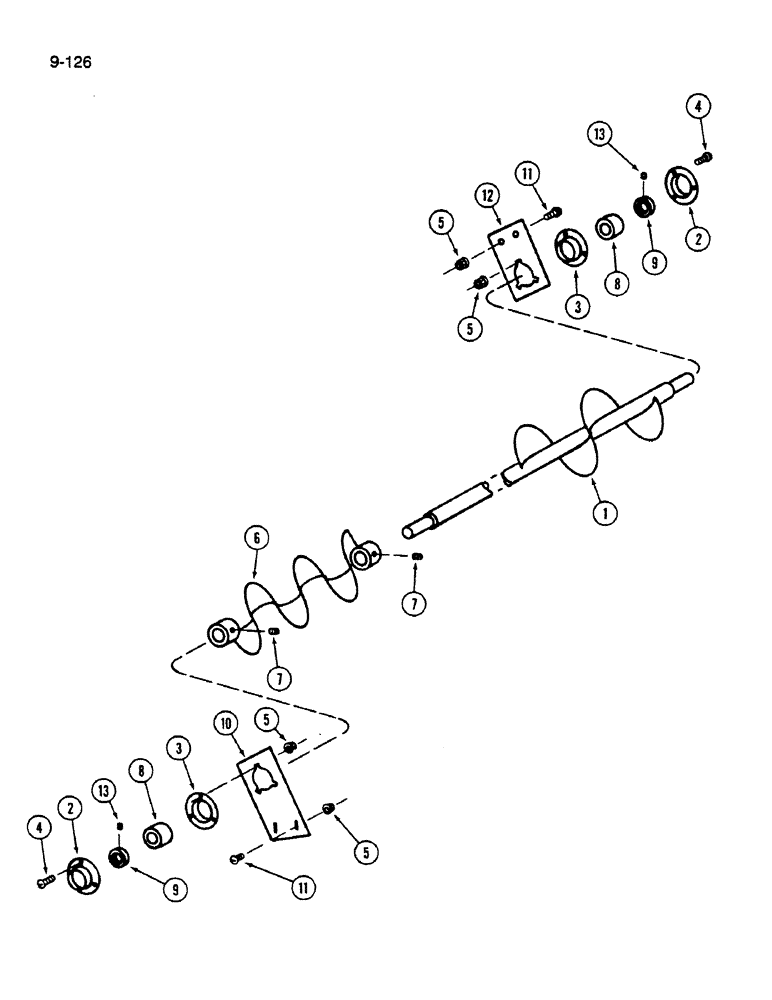

Схема запчастей Case IH 1620 - (9-126) - GRAIN DELIVERY AUGER (16) - GRAIN ELEVATORS & AUGERS
8
12
3
1
2
2
5
9
11
13
4
5
6
13
7
5
9
3
11
4
5
10
7
8

Артикул

Название

Примечание

Количество

1

186122C1

AUGER

- delivery, grain and corn

1шт.

1

181434C1

AUGER

- delivery, rice

1шт.

2

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

FLANGE - bearing

2шт.

3

937517R1

FLANGE

- bearing, grooved

2шт.

4

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

6шт.

5

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

10шт.

6

162103C91

AUGER

- distribution, grain and corn

1шт.

7

102604

SET SCREW,Hex Skt, 7/16" - 14 x 1/2"

2шт.

8

482303R92

BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"

- ball, auger

2шт.

9

455102R21

COLLAR

- locking

2шт.

10

186124C1

SUPPORT

BRACKET - flange mounting, grain and corn

1шт.

10

181435C1

BAR

BRACKET - flange mounting, rice

1шт.

11

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

4шт.

12

183466C1

BAR

BRACKET - flange mounting

1шт.

13

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

2шт.

Выбрано товаров: 15
