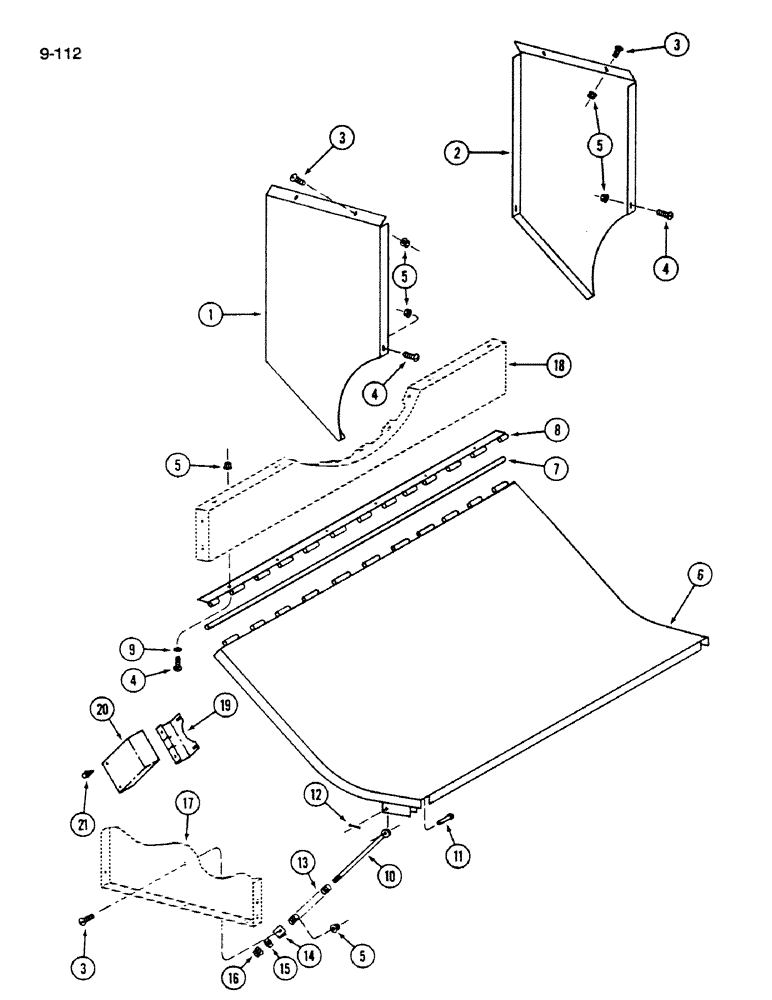

Запчасти Case IH 1620 (9-112) - DISCHARGE BEATER BOTTOM (15) - BEATER & CLEANING FANS

1

181386C1

SUPPORT

DEFLECTOR - discharge, left

1шт.

2

181387C1

SUPPORT

DEFLECTOR - discharge, right

1шт.

3

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC 3/4 inch

8шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

11шт.

5

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

15шт.

6

1303015C1

BOTTOM

- beater

1шт.

7

589386R1

ROD

- bottom pivot

1шт.

8

181351C1

HINGE

- bottom

1шт.

9

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/64 inch

2шт.

10

182547C1

BOLT,3/8" - 16 x 210 mm

- eye

2шт.

11

24709R1

HEADED PIN,3/8" x 1 3/4"

PIN, HEADED, 3/8" x 1 3/4"

2шт.

12

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

2шт.

13

182699C1

SPRING

- beater

2шт.

14

182549C1

ANGLE

- spring

2шт.

15

1303000C1

RUBBER WASHER

- rubber

2шт.

16

473371R1

FLANGE NUT

NUT - hex flange lock, 3/8 inch NC

2шт.

17

REF

INSTRUCTION

SUPPORT - bearing, left, see Figure 9-110

1шт.

18

REF

INSTRUCTION

SUPPORT - rotor cage, see Figure 9-080

1шт.

19

187629C1

SUPPORT

BRACKET - beater shaft sensor

1шт.

20

187630C1

SUPPORT

COVER - beater shaft

1шт.

21

23896R1

DOWEL,5/8" x 3"

SCREW - tapping, 1/4 x 1/2 inch

2шт.

For Ref. 21, use 280-1478 screw (not 23896R1).

1шт.
