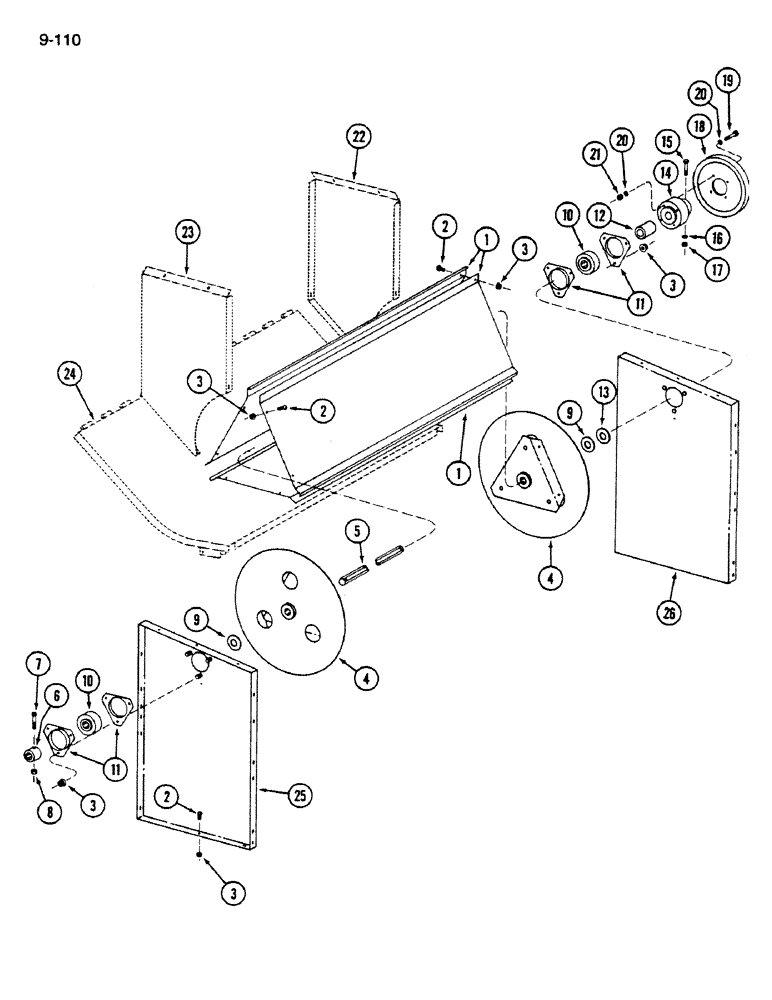

Запчасти Case IH 1620 (9-110) - DISCHARGE BEATER (15) - BEATER & CLEANING FANS

1

1319268C1

SUPPORT

BLADE - discharge beater

3шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

51шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

57шт.

4

1319266C1

HUB

- beater

2шт.

5

195118C1

SHAFT

- discharge beater

1шт.

6

1302104C1

HUB

- beater, fixed

1шт.

7

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

8

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

1шт.

9

21779R1

WASHER

- flat, 1-11/32 x 2 x 7/64 inch

4шт.

9

21290R1

WASHER

- flat, 1-11/32 x 2 x 3/64 inch

1шт.

10

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING - beater shaft

2шт.

11

180955C1

FLANGED BEARING,0.375"

FLANGE - beater bearing

4шт.

12

632147R1

SPACER

- driven pulley

1шт.

13

22482R1

WASHER

- flat, 1-13/32 x 2-1/4 x 7/64 inch

1шт.

13

22481R1

WASHER

- flat, 1-13/32 x 2-1/4 x 7/64 inch

1шт.

14

1319402C1

HUB

- beater drive pulley

1шт.

15

24866R1

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

Hex, 1/2"-13 x 2 1/2", G8

1шт.

16

26273R1

WASHER

- flat, 17/32 x 1-1/16 x 9/64 inch

1шт.

17

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

18

195161C1

PULLEY

- beater drive, 8-3/8 inch

1шт.

19

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

21

9635082

NUT,5/16" - 18, Gr 5

4шт.

22

REF

INSTRUCTION

DEFLECTOR - discharge, right, see Figure 9-112

1шт.

23

REF

INSTRUCTION

DEFLECTOR - discharge, left, see Figure 9-112

1шт.

24

REF

INSTRUCTION

BOTTOM - beater, see Figure 9-112

1шт.

25

183095C1

SUPPORT ASSY.

SUPPORT - bearing, left

1шт.

26

183096C1

SUPPORT ASSY.

SUPPORT - bearing, right

1шт.
