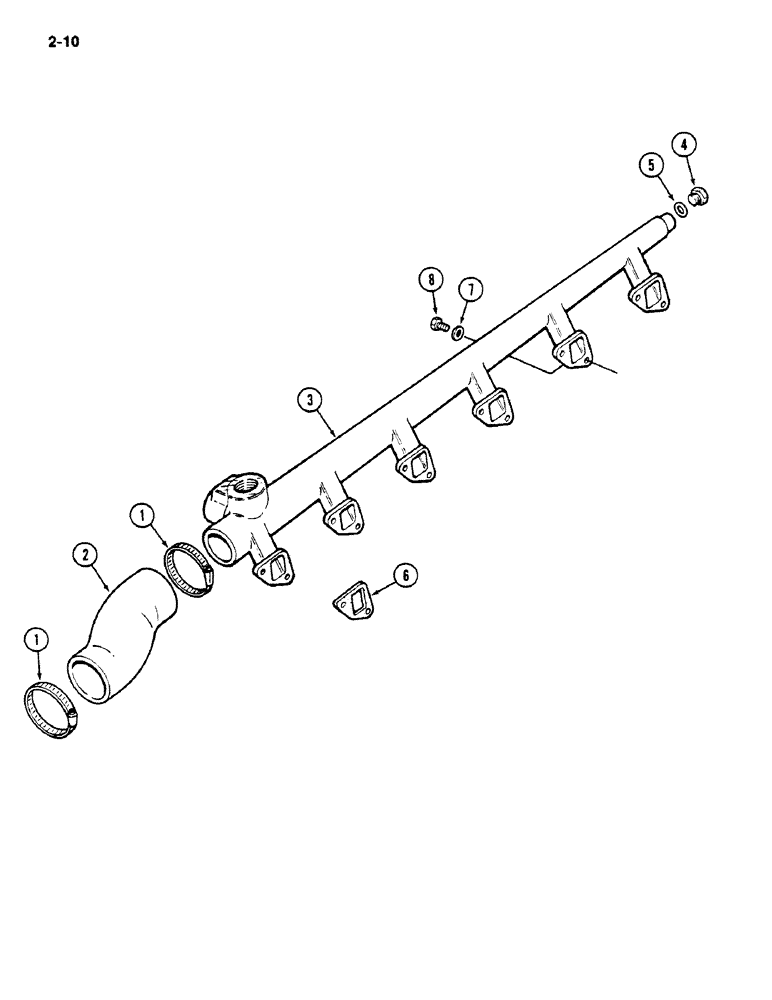

Запчасти Case IH 1620 (2-010) - WATER MANIFOLD, D358 DIESEL ENGINE (01) - ENGINE

1

3218259R1

CLAMP,M40-60, Worm

- hose

2шт.

2

3132912R1

HOSE,50.70 mm ID x 112.00 mm

- Connecting 50.70 mm ID x 112.00 mm

1шт.

3

3132435R1

MANIFOLD

- water

1шт.

4

712616R1

PLUG,Hex, M14 x 1.5

- Filler and drain Hex, M14 x 1.5

1шт.

5

710097R2

SEALING RING,14mm ID x 18mm OD x 1.5mm Thk

Packing M14 x 18 x 1.5

1шт.

6

3055306R1

GASKET

- manifold, water

6шт.

7

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 21/64 x 3/4 x 3/32 inch

12шт.

8

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

12шт.
