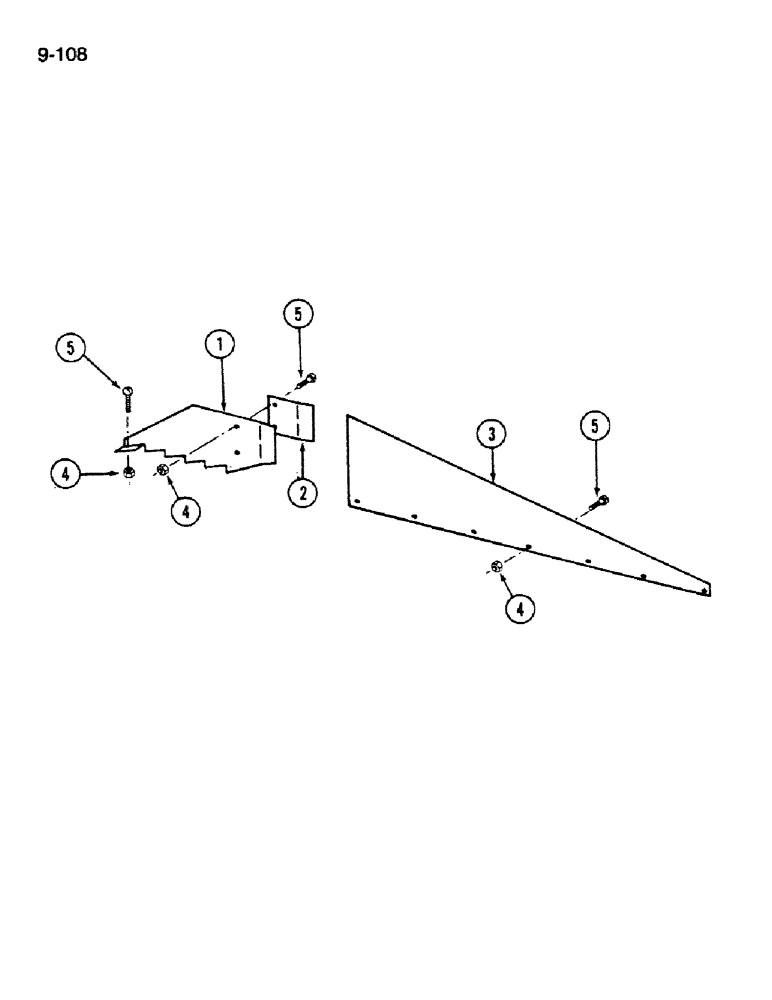

Запчасти Case IH 1620 (9-108) - GRAIN PAN SIDE HILL DIVIDERS (14) - ROTOR, CONCANVES & SIEVE

180771C91

KIT

DIVIDER KIT - grain pan, Includes: Ref. 1 - 5

3шт.

1

185115C1

DIVIDER

- chaffer front pan

1шт.

2

185116C1

RETAINER

- chaffer front pan

1шт.

3

185114C1

DIVIDER

- chaffer sieve

1шт.

4

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flanged hex lock, 1/4 inch NC

11шт.

5

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss, 1/4 NC x 1/2 inch

11шт.
