Запчасти Case IH 1620 (9-106) - CHAFFER SIEVE (14) - ROTOR, CONCANVES & SIEVE

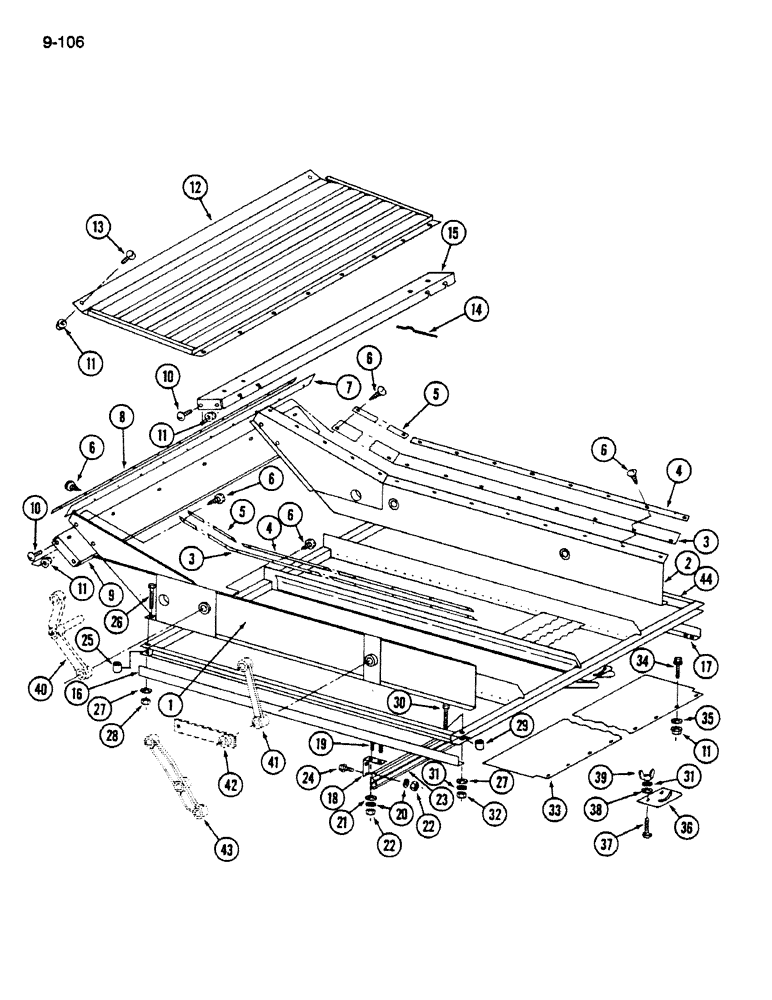

Схема запчастей Case IH 1620 - (9-106) - CHAFFER SIEVE (14) - ROTOR, CONCANVES & SIEVE
22
22
33
6
31
16
1
41
13
6
11
11
21
20
29
3
24
6
14
15
18
17
5
26
38
8
6
7
12
31
19
6
4
27
34
39
32
30
44
10
27
43
3
4
37
9
28
42
35
10
23
2
11
25
11
40
5
36

Артикул

Название

Примечание

Количество

1

185430C4

RAIL

- chaffer, left

1шт.

2

185431C4

RAIL

- chaffer, right

1шт.

3

192051C3

SEALING STRIP

SEAL - chaffer rail

2шт.

4

192053C1

BAR

- chaffer rail seal

2шт.

5

192052C2

BAR

- chaffer rail seal

2шт.

6

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - tapping, 1/4 x 1/2 inch

45шт.

7

183063C1

SEAL

SEAL - chaffer frame front

1шт.

8

183062C1

BAR

- chaffer frame front seal

1шт.

9

183065C1

SUPPORT

- chaffer frame

1шт.

10

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head 5/16 NC x 3/4 inch

8шт.

11

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

25шт.

12

183059C2

PANEL ASSY.

PAN - grain

1шт.

13

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

10шт.

14

175114C1

FINGER,Formed, 1 Prong, 264mm L

- auger bed

10шт.

15

183061C2

SUPPORT

CHANNEL - chaffer pan

1шт.

16

186369C1

ANGLE

- chaffer support, left

1шт.

17

186370C1

ANGLE

- chaffer support, right

1шт.

18

186674C1

ANGLE

- rear deflector

2шт.

19

156466

SCREW,Cross Flat Hd, 5/16" - 18 x 1"

4шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

21

21496R1

WASHER

- flat, 11/32 x 3/4 x 7/64 inch

4шт.

22

9635082

NUT,5/16" - 18, Gr 5

8шт.

23

183064C1

CHANNEL

- rear

1шт.

24

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

4шт.

25

186646C1

SPACER,5/8" Tube x 15/16"

- chaffer sieve, front, 5/8 x 15/16 inch

2шт.

26

20248R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

- hex, 3/8 NC x 2-1/4 inch, Grade 8

2шт.

27

22264R1

WASHER

- flat, 13/32 x 1 x 11/64 inch

4шт.

28

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, Grade 8

2шт.

29

612233R1

SPACER,5/8" Tube x 1 1/8"

- chaffer sieve, rear, 5/8 x 1-3/16 inch

2шт.

30

897520R1

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 8

- hex, 3/8 NC x 2-3/4 inch, Grade 8

2шт.

31

366862C1

LOCK WASHER,3/8"

3/8"

4шт.

32

21333R1

NUT,3/8"-16, G8

- hex, 3/8 inch NC, Grade 8

4шт.

33

195187C1

SEALING STRIP

- chaffer

1шт.

34

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

7шт.

35

106969R1

WASHER

- flat, 11/32 x 1-1/2 x 3/64 inch

7шт.

36

186675C1

ADJUSTING PLATE

- plate

1шт.

37

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT - round head square neck, 1/4 NC x 1/2 inch

2шт.

38

142619H

WASHER

- flat, 13/32 x 3/4 x 7/64 inch

2шт.

39

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

2шт.

40

REF

INSTRUCTION

LEVER - chaffer drive hanger, see Figure 9-096

2шт.

41

REF

INSTRUCTION

ARM - rear hanger, see Figure 9-104

2шт.

42

REF

INSTRUCTION

ARM - shoe rear, see Figure 9-104

2шт.

43

REF

INSTRUCTION

LEVER - shoe, see Figure 9-104

2шт.

44

1330681C1

GRAIN SIEVE

SIEVE ASSEMBLY - chaffer, corn slat

1шт.

44

1330682C1

GRAIN SIEVE

SIEVE ASSEMBLY - chaffer, 1-5/8 inch adjustable closz slat

1шт.

44

1330683C1

GRAIN SIEVE

SIEVE ASSEMBLY - chaffer, 1-1/8 inch adjustable grain

1шт.

44

1319091C2

SIEVE

ASSEMBLY - chaffer, Peterson (Parts Accessory)

1шт.
