Запчасти Case IH 1620 (9-104) - CHAFFER AND SHOE SIEVE, OPERATING ARMS AND LEVERS (14) - ROTOR, CONCANVES & SIEVE

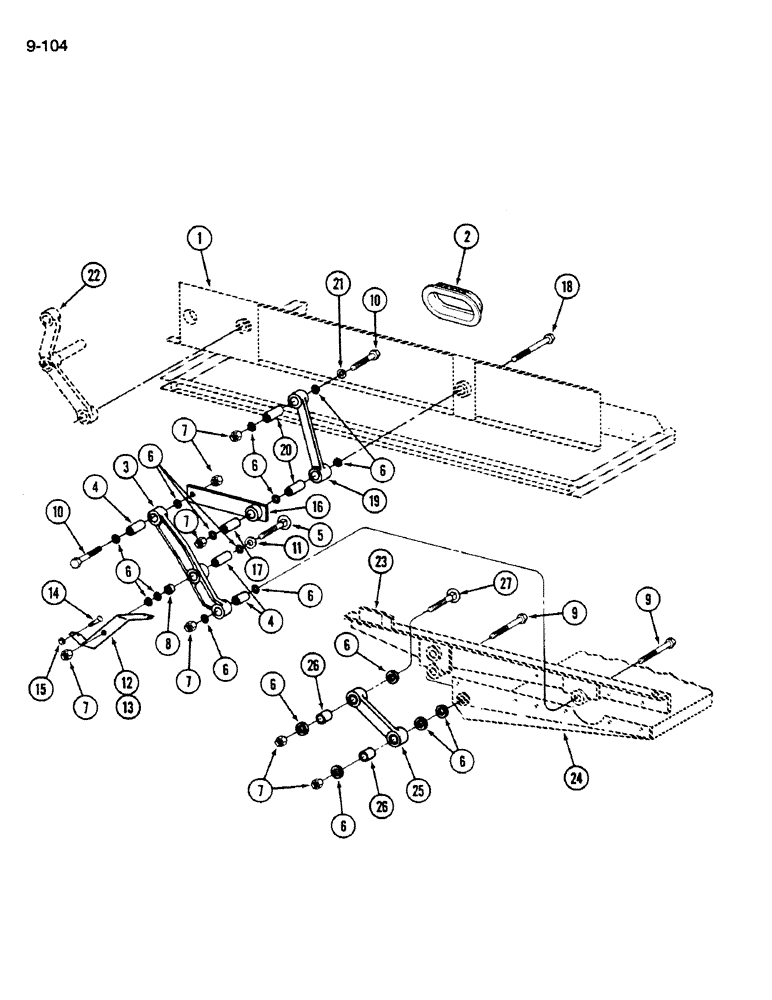

Схема запчастей Case IH 1620 - (9-104) - CHAFFER AND SHOE SIEVE, OPERATING ARMS AND LEVERS (14) - ROTOR, CONCANVES & SIEVE
26
16
3
17
7
24
7
11
6
9
5
4
6
12
2
21
6
8
9
26
19
22
1
6
27
7
15
10
6
10
7
6
18
14
25
20
6
13
4
23
6
7
6
6

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

RAIL - chaffer, left, see Figure 9-106

1шт.

2

1302644C2

SEAL

- chaffer rail

2шт.

3

192941C92

LEVER ASSY.

LEVER ASSEMBLY - shoe, Includes: Ref. 4

2шт.

4

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

- lever

3шт.

5

111-630

CARRIAGE BOLT,Short NK, 5/8"-11 x 4", G2

BOLT, CARRIAGE, Short NK, 5/8"-11 x 4", G2

2шт.

6

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, 41/64 x 1-1/4 x 1/8 inch

34шт.

7

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

18шт.

8

168250C1

RING

SPACER - lever

2шт.

9

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, Grade 8

4шт.

10

22228R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

- hex, 5/8 NC x 3-1/2 inch, Grade 8

4шт.

11

21714R1

WASHER

- flat, 29/32 x 1-1/2 x 7/64 inch

2шт.

12

193107C2

SUPPORT

- shoe lever, left

1шт.

13

193108C2

SUPPORT

- shoe lever, right

1шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

8шт.

15

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

8шт.

16

188010C91

ARM ASSY.

ARM ASSEMBLY - shoe rear, Includes: Ref. 17

2шт.

17

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

- arm

1шт.

18

25390R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 8

- hex, 5/8 NC x 6-1/2 inch, Grade 8

2шт.

19

175131C91

ARM ASSY.

ARM ASSEMBLY - rear hanger, Includes: Ref. 20

2шт.

20

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

- arm

2шт.

21

21782R1

WASHER

- flat, 21/32 x 1-1/4 x 3/64 inch

2шт.

22

REF

INSTRUCTION

LEVER - chaffer drive hanger, see Figure 9-096

2шт.

23

REF

INSTRUCTION

SUPPORT - shoe sieve, see Figure 9-100

2шт.

24

REF

INSTRUCTION

BOTTOM - shoe sieve, see Figure 9-100

1шт.

25

175160C91

LEVER

HANGER ASSEMBLY - shoe front, Includes: Ref. 26

2шт.

26

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

- hanger

2шт.

27

21776R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 2

BOLT - round head square neck, 5/8 NC x 3-1/4 inch

2шт.
