Запчасти Case IH 1620 (9-102) - ALFALFA SHOE SIEVE ATTACHMENT (14) - ROTOR, CONCANVES & SIEVE

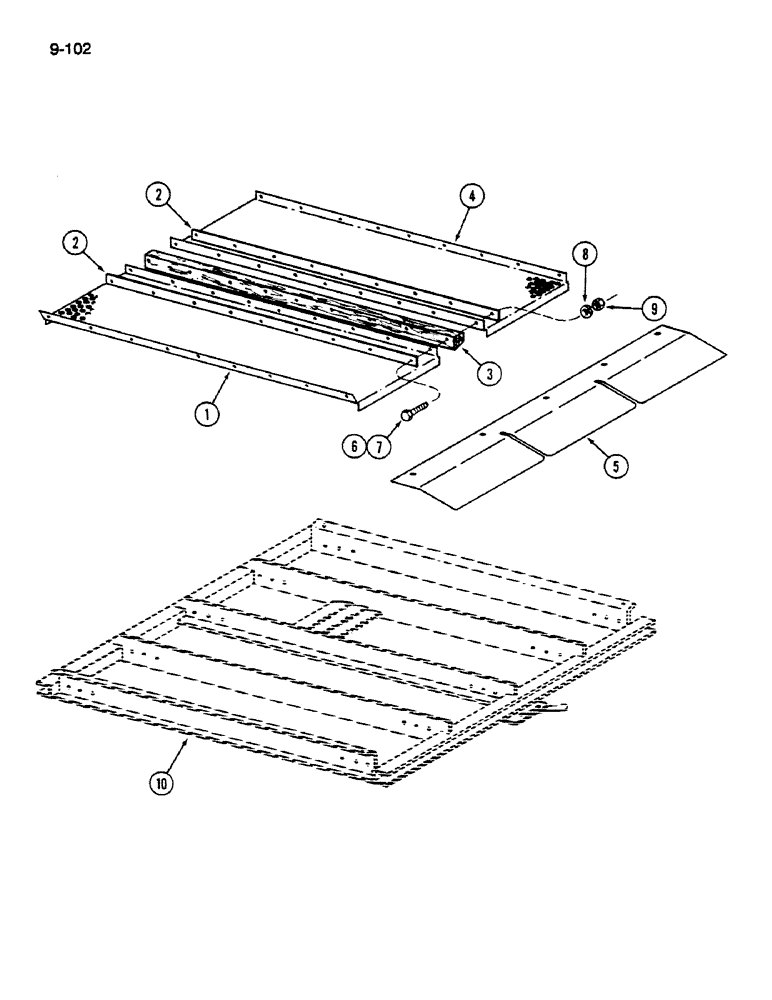

Схема запчастей Case IH 1620 - (9-102) - ALFALFA SHOE SIEVE ATTACHMENT (14) - ROTOR, CONCANVES & SIEVE
9
3
8
1
10
6
2
5
2
4
7

Артикул

Название

Примечание

Количество

1319280C91

PACKAGE

ATTACHMENT - alfalfa shoe sieve (For use with sieve 193757C1 only), Includes: Ref. 1 - 9

1шт.

1

1319288C1

SCREEN

- perforated, side

2шт.

2

1319300C1

BAR

- fastener backing

6шт.

3

1319284C1

BAR

- sieve (With 1-1/8 inch spacing)

1шт.

4

1319289C1

SCREEN

- perforated, middle

2шт.

5

1319257C1

SUPPORT

COVER - chaffer finger

1шт.

6

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

18шт.

7

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

9шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

27шт.

9

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

27шт.

10

REF

INSTRUCTION

SIEVE - shoe, see Figure 9-100

1шт.

Выбрано товаров: 11
