Запчасти Case IH 1620 (9-096) - CHAFFER DRIVE HANGER LEVER AND SUPPORT (14) - ROTOR, CONCANVES & SIEVE

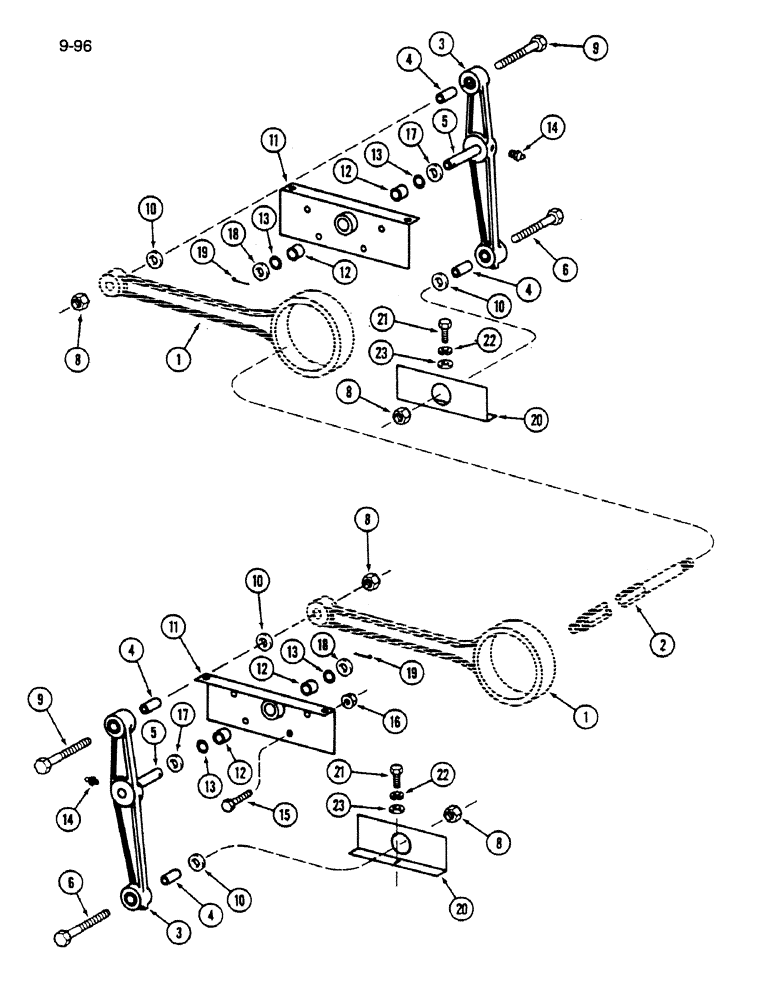

Схема запчастей Case IH 1620 - (9-096) - CHAFFER DRIVE HANGER LEVER AND SUPPORT (14) - ROTOR, CONCANVES & SIEVE
11
12
1
9
21
20
4
8
17
6
4
9
20
13
10
11
5
22
4
12
13
18
22
12
12
19
6
2
13
5
17
23
10
8
14
10
4
19
8
8
23
3
16
21
18
3
15
14
13
1
10

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PITMAN - shaker shaft, see Figure 9-094

2шт.

2

REF

INSTRUCTION

SHAFT - shaker, see Figure 9-094

1шт.

3

191432C91

LEVER ASSY.

LEVER ASSEMBLY - chaffer drive hanger, Includes: Ref. 4 and 5

2шт.

4

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

- hanger lever

2шт.

5

193133C1

SHAFT

PIN - hanger

1шт.

6

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, Grade 8

2шт.

8

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

9

22228R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

- hex, 5/8 NC x 3-1/2 inch

2шт.

10

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, 41/64 x 1-1/4 x 1/8 inch

1шт.

10

21782R1

WASHER

- flat, 21/32 x 1-1/4 x 3/64 inch

2шт.

11

194649C91

SUPPORT ASSY.

SUPPORT ASSEMBLY - front hanger, Includes: Ref. 12 and 13

2шт.

12

G10642

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 19.05mm W

BEARING - support

2шт.

13

372756R91

OIL SEAL,20.45mm ID x 28.68mm OD x 3.17mm Thk

- support bearing

2шт.

14

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - grease, 1/4 inch

2шт.

15

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

12шт.

16

113-930

BOLT,Hex, 1" - 8 x 7", Gr 5

NUT - hex flange lock, 1/2 inch NC

12шт.

17

21761R1

WASHER

- flat, 29/32 x 1-1/2 x 3/64 inch

2шт.

18

21714R1

WASHER

- flat, 29/32 x 1-1/2 x 7/64 inch

1шт.

19

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), 3/16" x 2"

2шт.

20

186684C1

SUPPORT

- chaffer rail seal

2шт.

21

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

23

134238R1

WASHER

- flat, 11/32 x 1 x 3/64 inch

2шт.

Выбрано товаров: 23
