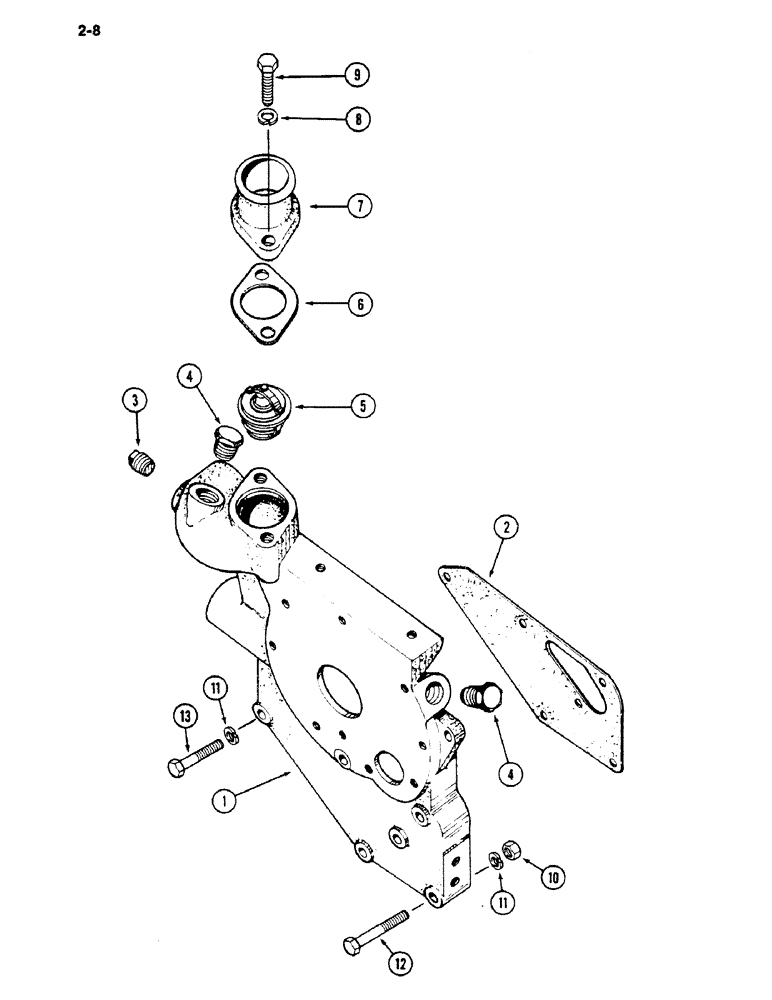

Запчасти Case IH 1620 (2-008) - WATER PUMP CARRIER AND THERMOSTAT, D358 DIESEL ENGINE (01) - ENGINE

1

3136678R2

COVER

CARRIER - water pump

1шт.

2

3055999R1

GASKET

- water pump carrier

1шт.

3

20972R1

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - automotive hex head pipe, 3/8-18 inch thread

1шт.

4

444630

PLUG,Hex Hd, 1/2"-14

- automotive hex head pipe, 1/2-14 inch thread

2шт.

5

3228046R1

THERMOSTAT

- coolant

1шт.

6

3132143R1

GASKET

- flange, water outlet

1шт.

7

3132142R2

FLANGE

- water outlet

1шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

- 3/8 NC x 1-1/8 inch

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

2шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

5шт.

12

26057R1

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 8

- 5/16 NC x 3-1/2 inch

2шт.

13

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

3шт.
