Запчасти Case IH 1620 (9-094) - SHAKER SHAFT AND AUGER DRIVE (14) - ROTOR, CONCANVES & SIEVE

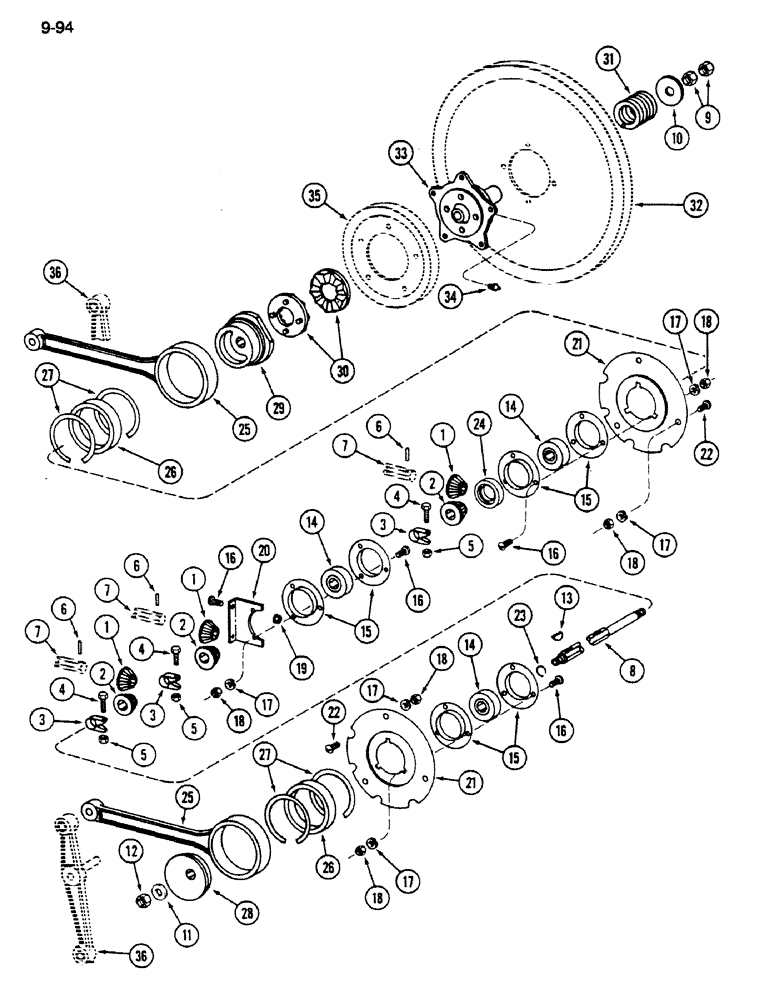

Схема запчастей Case IH 1620 - (9-094) - SHAKER SHAFT AND AUGER DRIVE (14) - ROTOR, CONCANVES & SIEVE
5
18
12
16
35
4
8
32
18
9
14
17
7
15
25
14
36
27
31
19
1
4
1
16
5
16
2
22
36
2
11
6
5
3
20
26
18
17
15
6
21
34
17
17
17
1
30
7
29
25
28
27
3
16
2
7
21
26
6
18
14
15
22
18
33
13
10
4
23
3
24

Артикул

Название

Примечание

Количество

1300639C1

GEAR-SET

GEAR KIT - auger, Includes: Ref. 1 and 2

3шт.

1

NSS

NOT SOLD SEPARAT

GEAR - drive, 14 teeth

3шт.

2

NSS

NOT SOLD SEPARAT

GEAR - driven, 14 teeth

3шт.

3

225265R1

CLAMP

- gear

3шт.

4

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

3шт.

5

9413967

LOCK NUT,1/2"-13, GB

NUT - hex prevailing torque, 1/2 inch NC

3шт.

6

617941R1

PIN,5/16" x 2", Coiled

3шт.

7

REF

INSTRUCTION

AUGER - grain, see Figure 9-092

3шт.

8

183052C1

SHAFT

- shaker

1шт.

9

426897

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NC

2шт.

10

22482R1

WASHER

- flat, 1-13/32 x 2-1/4 x 7/64 inch

1шт.

11

23245R1

WASHER

- flat, 25/32 x 1-3/4 x 11/64 inch

1шт.

12

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

13

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

14

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING - shaker shaft

3шт.

15

180955C1

FLANGED BEARING,0.375"

FLANGE - bearing

6шт.

16

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

11шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

15шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

15шт.

19

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

20

186589C1

SUPPORT

- center bearing

1шт.

21

193978C1

RETAINER

- shaker shaft

2шт.

22

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

6шт.

23

575186R1

SNAP RING

RING - shaft snap

2шт.

24

935856R1

BUSHING

- shaker shaft

1шт.

25

186549C1

PITMAN

- shaker shaft

2шт.

26

193132C91

BALL BEARING,82.55mm ID x 120.65mm OD x 25.4mm W

BEARING - pitman

2шт.

27

892775C1

SNAP RING,#475, 5.070", Int

RING - internal retaining

4шт.

28

183053C2

ECCENTRIC

CAM - pitman, left

1шт.

29

191429C2

CAM

- pitman, right

1шт.

30

B12170

RATCHET,Clutch Slip, 94.49mm

- slip clutch

2шт.

31

19302K

SPRING

- slip clutch

1шт.

32

REF

INSTRUCTION

PULLEY - shaker shaft driven, see Figure 9-004

1шт.

33

1303136C1

HUB

- slip clutch drive

1шт.

34

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

35

REF

INSTRUCTION

PULLEY - straw spreader drive, see Figure 9-190

1шт.

36

REF

INSTRUCTION

LEVER - chaffer drive hanger, see Figure 9-096

2шт.

Выбрано товаров: 37
