Запчасти Case IH 1620 (9-092) - AUGER BED (14) - ROTOR, CONCANVES & SIEVE

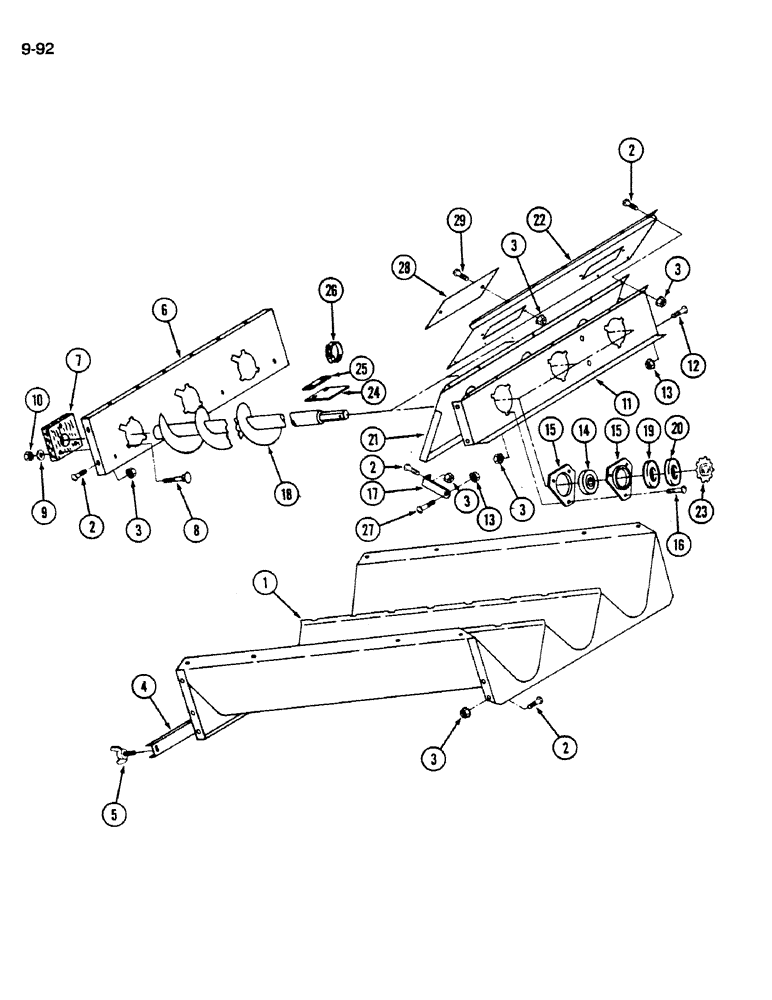

Схема запчастей Case IH 1620 - (9-092) - AUGER BED (14) - ROTOR, CONCANVES & SIEVE
7
13
16
27
21
20
28
1
3
12
18
23
4
2
2
5
3
14
13
2
26
3
15
17
8
3
3
3
2
24
15
29
6
22
19
25
11
10
9

Артикул

Название

Примечание

Количество

1

183068C1

TROUGH ASSY.

TROUGH - auger

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

38шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

51шт.

4

183077C1

COVER

CHANNEL COVER - auger trough clean out

1шт.

5

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

- wing, clean out trough

3шт.

6

181382C1

SUPPORT

- auger, front

1шт.

7

193414C2

BOARD

BEARING - auger, front

3шт.

8

27451R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT - round head square neck, 3/8 NC x 2-1/4 inch

9шт.

9

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/64 inch

9шт.

10

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

9шт.

11

1310358C2

SUPPORT

- auger drive gear

1шт.

12

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

4шт.

13

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch

5шт.

14

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING - ball, auger drive

3шт.

15

571424R1

FLANGE

- auger drive bearing mounting

6шт.

16

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

9шт.

17

193554C1

SUPPORT

- pan

1шт.

18

1308541C1

AUGER

- grain right rotation

3шт.

19

21290R1

WASHER

- flat, 1-11/32 x 2 x 3/64 inch

6шт.

20

21779R1

WASHER

- flat, 1-11/32 x 2 x 7/64 inch

6шт.

21

183782C1

SUPPORT

- deflector

1шт.

22

1321371C1

SUPPORT ASSY.

SUPPORT - rotor to auger drive rear

1шт.

23

REF

INSTRUCTION

GEAR - auger drive, see Figure 9-094

6шт.

24

1302112C1

STRIP

(grain and rice only)

1шт.

25

1302113C1

BAR

STRIP - grain spreader (Grain and rice only)

1шт.

26

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

(Grain and rice only) #28, 1.31/2.25 Type F Worm

2шт.

27

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

1шт.

28

1319548C1

BAR

COVER - grain loss sensors

2шт.

29

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

4шт.

Выбрано товаров: 29
