Запчасти Case IH 1620 (9-090) - CONCAVES SUPPORTS AND CONTROLS (14) - ROTOR, CONCANVES & SIEVE

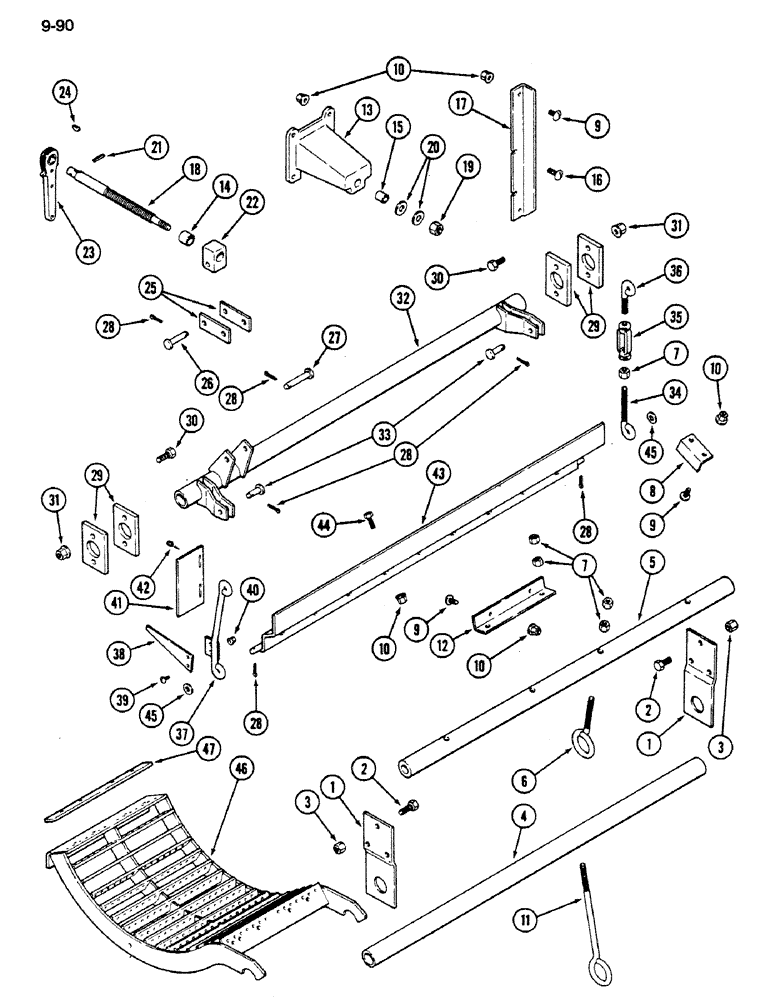

Схема запчастей Case IH 1620 - (9-090) - CONCAVES SUPPORTS AND CONTROLS (14) - ROTOR, CONCANVES & SIEVE
6
15
28
3
9
12
19
35
42
7
5
1
28
9
1
27
25
41
24
20
2
4
23
7
10
8
31
11
31
45
10
30
3
29
13
45
16
9
38
46
22
40
34
10
18
26
33
47
29
44
37
39
14
43
2
21
30
10
32
28
36
28
17
28

Артикул

Название

Примечание

Количество

1

195253C1

SUPPORT

- concave anchor

2шт.

2

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

6шт.

3

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

6шт.

4

195255C1

PIPE

- control

1шт.

5

193790C3

PIPE

CLAMP - control pipe

1шт.

6

1317280C1

BOLT,1/2" - 13 x 152mm, Full Thd

- concave clamp eye

4шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

13шт.

8

185266C1

ANGLE

- lower concave pipe

1шт.

9

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

6шт.

10

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

22шт.

11

141451C1

BAR

EYEBOLT - concave clamp (Rice only)

2шт.

12

181453C1

SUPPORT

- concave eyebolt (Rice only)

1шт.

13

192883C93

SUPPORT

HOUSING ASSEMBLY - concave control, Includes: Ref. 14 and 15

1шт.

14

551068R1

BUSHING,22.28mm ID x 25.43mm OD x 22.23mm L

- control housing

1шт.

15

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

- control housing

1шт.

16

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

4шт.

17

182577C1

ANGLE

- control housing mounting

1шт.

18

192885C1

SHAFT

- concave adjusting

1шт.

19

20033R1

LOCK NUT

NUT - hex lock, 5/8 inch NC

1шт.

20

25537R1

WASHER,21/32" x 1 5/16" x .095", HDN

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

21

19689R1

PIN,1/4" x 1 1/4", Coiled

1шт.

22

192886C1

NUT

- concave control adjusting

1шт.

23

170282C1

HANDLE

- concave adjusting

1шт.

24

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

25

186650C1

BAR

LINK - upper

2шт.

26

22899R1

HEADED PIN,1/2" x 2 3/8"

PIN, HEADED, 1/2" x 2 3/8"

1шт.

27

21814R1

HEADED PIN,1/2" x 3"

PIN - headed, 1/2 x 3 inch

1шт.

28

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

4шт.

29

1319251C2

SUPPORT

HUB - control shaft

4шт.

30

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

31

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

4шт.

32

195036C1

LEVER ASSY.

LEVER - control

1шт.

33

21939R1

HEADED PIN,1/2" x 1 7/16"

PIN - headed, 1/2 x 1-7/16 inch

2шт.

34

1310183C1

BOLT,1/2" - 13 x 120mm, Cl 5

- adjusting (Left hand thread)

1шт.

35

M383D

TURNBUCKLE

- adjusting

1шт.

36

1310182C1

BOLT,1/2" - 13 x 70mm, Cl 5

- adjusting (Right hand thread)

1шт.

37

186027C1

ROD ASSY.

EYEBOLT - concave control

1шт.

38

186029C1

BAR

POINTER - concave indicator

1шт.

39

937875R1

SCREW,Serr, 1/4" - 20

- slotted truss head, 1/4 NC x 3/4 inch

2шт.

40

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

41

188168C1

PLATE

- concave indicator

1шт.

42

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"

2шт.

43

191401C1

SUPPORT ASSY.

SUPPORT - concave anchor

1шт.

44

1302787C1

FLANGE BOLT,Serr, Hex, 3/8" - 16 x 1", Gr 8

BOLT, Hex Flg, 3/8"-16 x 1", Serr, G8

12шт.

45

25710R1

WASHER

- flat, 17/32 x 1 x 7/64 inch

4шт.

46

REF

INSTRUCTION

GRATE ASSEMBLY - concave, see Figure 9-088

3шт.

47

REF

INSTRUCTION

BAR - grate hanger

3шт.
