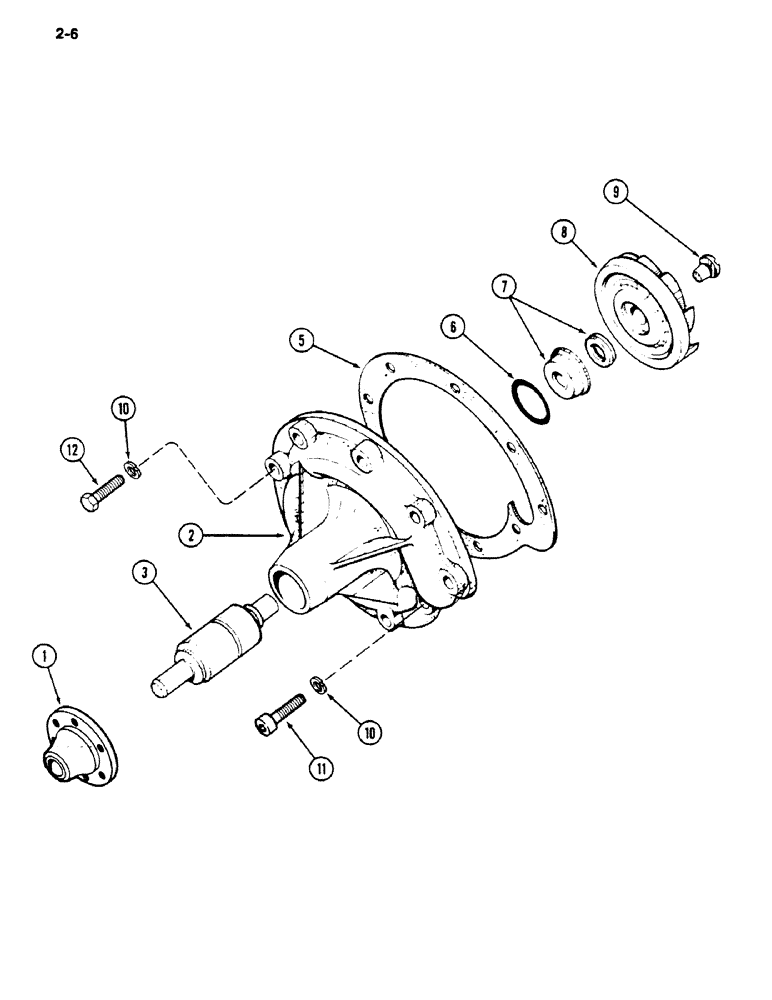

Запчасти Case IH 1620 (2-006) - WATER PUMP, D358 DIESEL ENGINE (01) - ENGINE

3132676R93

PUMP, WATER

PUMP ASSEMBLY - water, Includes: Ref. 1 - 9

1шт.

735097C91

REMAN-WATER PUMP

Remanufactured, WATER PUMP

1шт.

1928115C1

CORE-WATER PUMP

Return Number

1шт.

1

3132678R1

HUB

HUB - water pump

1шт.

2

3132677R41

BODY

BODY ASSEMBLY - water pump, Includes: Ref. 3

1шт.

3

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

BEARING - pump

1шт.

3055285R93

GASKET KIT

RECONDITIONING KIT - water pump, Includes: Ref. 5 - 7

1шт.

5

3055177R1

GASKET

GASKET - water pump

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - impeller

1шт.

7

NSS

NOT SOLD SEPARAT

RING AND PACKING

1шт.

8

787579R2

IMPELLER

IMPELLER - pump

1шт.

9

3055308R1

PLUG

PLUG - closing

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

11

28301R1

HEX SOC SCREW,5/16" - 18 x 1 3/8"

BOLT - hex socket head, 5/16 NC x 1-3/8 inch

1шт.

12

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/2", G5

7шт.
