Запчасти Case IH 1620 (9-078) - ROTOR TRANSITION CONE (14) - ROTOR, CONCANVES & SIEVE

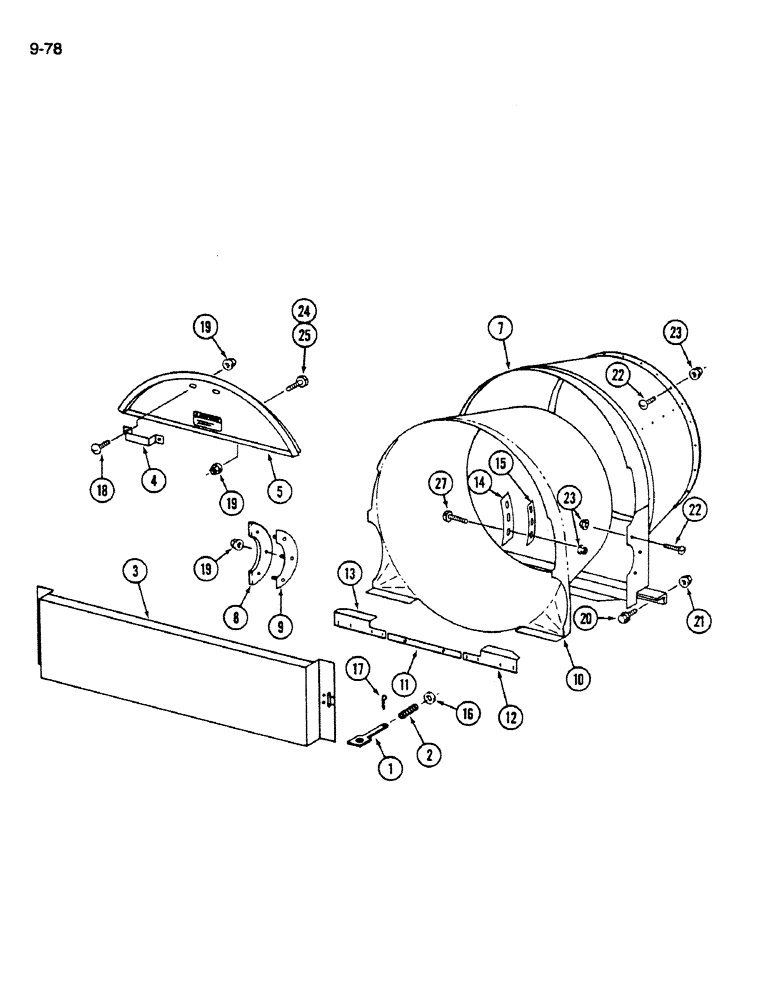

Схема запчастей Case IH 1620 - (9-078) - ROTOR TRANSITION CONE (14) - ROTOR, CONCANVES & SIEVE
7
10
25
13
22
5
27
21
17
1
2
24
16
20
9
12
18
11
23
8
19
19
15
14
19
22
4
23
3

Артикул

Название

Примечание

Количество

1

454502R1

LATCH

- separator door

2шт.

2

M296

SPRING

- door latch

2шт.

3

194211C1

DOOR

- separator

1шт.

4

160638C1

HANDLE

- door

1шт.

5

1300208C91

DOOR

ASSEMBLY - rotor front (grain and corn) (with decal)

1шт.

5

1300300C91

DOOR

DOOR ASSEMBLY - rotor front (rice) (with decal)

1шт.

7

186032C1

BODY

CONE - transition

1шт.

8

195202C1

SEAL

- feeder

2шт.

9

195409C1

PLATE

SUPPORT - seal

2шт.

10

1309909C1

INSULATOR

LINER - transition cone (rice only)

1шт.

11

1308519C1

BAR

- feeder door (rice only)

1шт.

12

1308520C2

SUPPORT ASSY.

SUPPORT - cone liner, left (rice only)

1шт.

13

1308521C2

SUPPORT ASSY.

SUPPORT - cone liner, right (rice only)

1шт.

14

1309910C1

SUPPORT ASSY.

FILLER - cone section (rice only)

1шт.

15

1309911C1

SUPPORT ASSY.

COVER - cone section (rice only)

1шт.

16

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/64 inch

2шт.

17

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

2шт.

18

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

2шт.

19

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

10шт.

20

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex head flange, 1/2 NC x 1 inch

2шт.

21

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, 1/2 inch NC

2шт.

22

186917C1

SCREW

SCREW - slotted truss head special, 3/8 NC x 1 inch

18шт.

23

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

18шт.

24

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch (grain and corn)

4шт.

25

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch (rice)

2шт.

27

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

- slotted truss head, 3/8 NC x 1-1/4 inch

3шт.

Выбрано товаров: 26
