Запчасти Case IH 1620 (9-076) - ROTOR, RICE AND BEAN (CONTD) (14) - ROTOR, CONCANVES & SIEVE

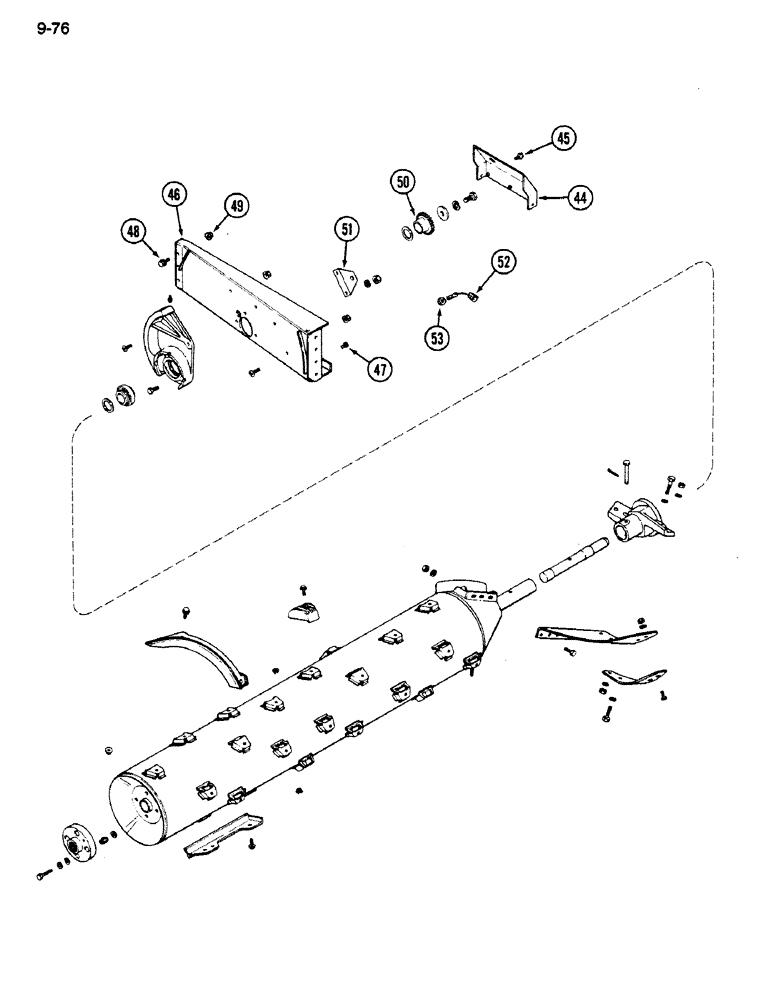

Схема запчастей Case IH 1620 - (9-076) - ROTOR, RICE AND BEAN (CONTD) (14) - ROTOR, CONCANVES & SIEVE
48
51
52
46
45
50
44
49
53
47

Артикул

Название

Примечание

Количество

44

182844C2

GUARD ASSY.

SHIELD - sensor

1шт.

45

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

3шт.

46

194206C3

SUPPORT

- rotor front bearing

1шт.

47

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

3шт.

48

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

- hex flange, 1/2 NC x 1-1/4 inch

7шт.

49

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

7шт.

50

198527C1

ROTOR

- transducer, RPM

1шт.

51

1301239C1

BRACKET

BRACKET - transducer mounting

1шт.

52

245193C2

SENSOR

TRANSDUCER - rotor RPM

1шт.

53

84116C1

NUT

- transducer, lock

1шт.

Выбрано товаров: 10
