Запчасти Case IH 1620 (9-066) - ROTOR DRIVE ASSEMBLY, PRIOR TO P.I.N. JJC0022109 (14) - ROTOR, CONCANVES & SIEVE

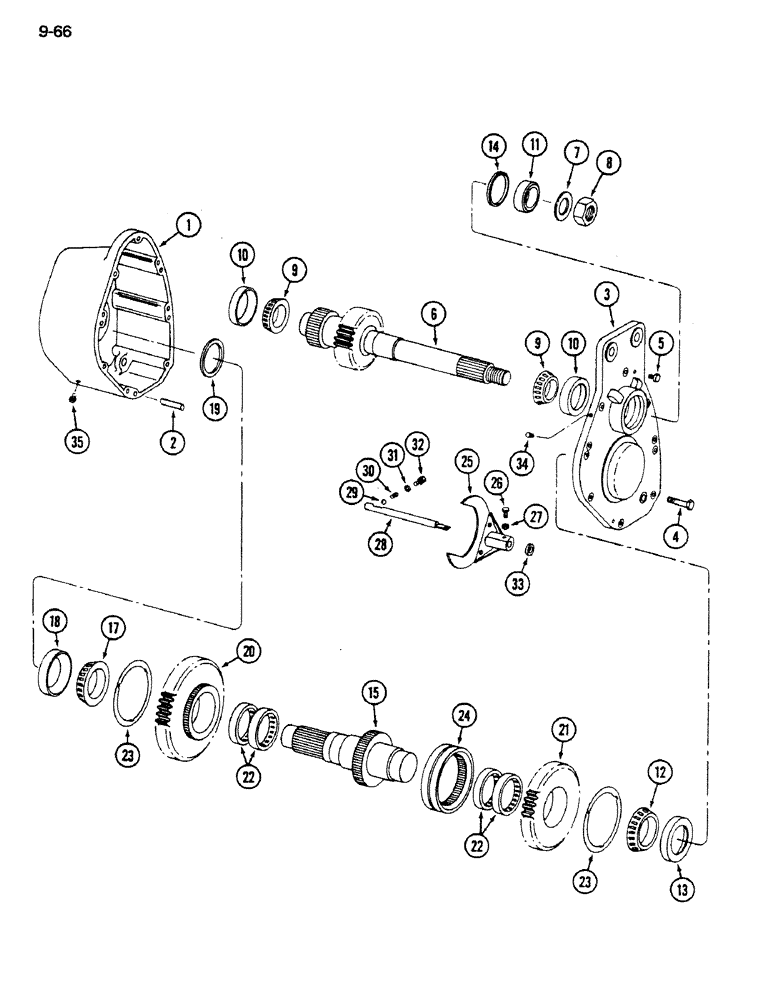

Схема запчастей Case IH 1620 - (9-066) - ROTOR DRIVE ASSEMBLY, PRIOR TO P.I.N. JJC0022109 (14) - ROTOR, CONCANVES & SIEVE
28
10
33
9
22
1
3
30
17
22
20
29
35
12
2
14
23
21
4
34
6
8
11
23
15
27
5
26
10
31
13
25
7
24
9
19
18
32

Артикул

Название

Примечание

Количество

186465C91

CASE

HOUSING ASSEMBLY - rotor drive gear, Includes: Ref. 1 - 35

1шт.

1

186440C91

HOUSING ASSY.

HOUSING ASSEMBLY - gear case, Includes: Ref. 2

1шт.

2

19846R1

DOWEL,1/2" x 1 1/4"

PIN - dowel, hardened, 1/2 x 1-1/4 inch

2шт.

3

1303134C1

COVER

- gear case

1шт.

4

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 x 2-1/2 inch

8шт.

5

152127H1

BREATHER,1/8"-27, Short

- case

1шт.

6

186363C1

SHAFT

- rotor drive input

1шт.

7

25541R1

WASHER

- flat, 1-5/16 x 2-1/2 x 5/32 inch

1шт.

8

27008R1

LOCK NUT,1 1/4"-7, GC

NUT - hex prevailing torque, 1-1/4 inch NC

1шт.

9

181250C91

ROLLER BEARING,50mm ID x 22.2mm Thk

CONE - bearing, input shaft

2шт.

10

181251C1

CUP,84mm OD x 22.2mm Thk

- bearing, input shaft

2шт.

11

186404C1

BUSHING

SPACER - input shaft

1шт.

12

533729R91

ROLLER BEARING,1.968" ID x 3.2283" OD x 0.8465"

CONE - bearing, output shaft

1шт.

13

376463C1

BEARING CUP

CUP - bearing, output shaft

1шт.

14

1303140C91

OIL SEAL

- oil, input shaft

1шт.

15

186380C1

SHAFT

- rotor drive output

1шт.

17

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE - bearing, output shaft

1шт.

18

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP - bearing, output shaft

1шт.

19

1303139C91

OIL SEAL

- oil, rotor drive

1шт.

20

181237C1

GEAR

- driven, 67 teeth (Low speed)

1шт.

21

181238C1

GEAR

- driven, 52 teeth (High speed)

1шт.

22

181239C91

BEARING, NEEDLE,63.5 mm ID x 73.164 mm OD x 19.05 mm

BEARING - needle, driven gear

4шт.

23

181240C1

THRUST WASHER

WASHER - thrust

2шт.

24

181241C1

COLLAR

- shift

1шт.

25

186371C1

FORK

- shift

1шт.

26

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

SCREW - cup point set, 3/8 NF x 1 inch

1шт.

27

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex jam, 3/8 inch NF

1шт.

28

194067C2

SHAFT

RAIL - shift

1шт.

29

17014R1

BALL

- shift rail detent, 7/16 inch diameter

1шт.

30

107234C1

SPRING

- shift detent ball

1шт.

32

9410357

PLUG

- 5/16 inch o-ring boss

1шт.

33

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

- oil, shift rail

1шт.

34

444667

PLUG

- 1/2 inch NPT

1шт.

35

50057K

PLUG

- 1/2 inch NPT, magnetic

1шт.

31

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 inch OD

1шт.

Выбрано товаров: 35
