Запчасти Case IH 1620 (9-056) - ROTOR DRIVE HOUSING MOUNTING (CONTD) (14) - ROTOR, CONCANVES & SIEVE

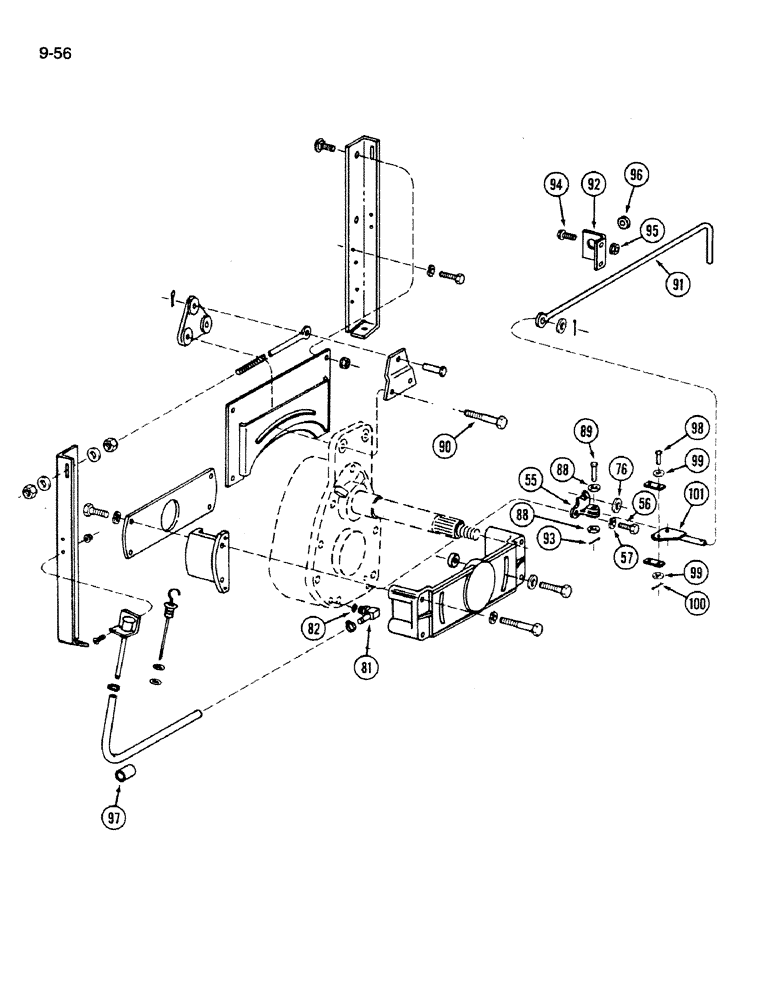

Схема запчастей Case IH 1620 - (9-056) - ROTOR DRIVE HOUSING MOUNTING (CONTD) (14) - ROTOR, CONCANVES & SIEVE
100
101
96
76
55
99
82
56
91
99
57
95
89
98
81
92
97
93
88
94
90
88

Артикул

Название

Примечание

Количество

55

1303126C1

PIVOT

- shift

1шт.

56

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

57

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

76

26273R1

WASHER

- flat, 17/32 x 1-1/16 x 3/32 inch

1шт.

81

188272C1

ELBOW

- gear housing

1шт.

82

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

1шт.

88

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/64 inch

2шт.

89

28234R1

HEADED PIN,3/8" x 1 1/2"

PIN - clevis, 3/8 x 1-1/2 inch

1шт.

90

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

2шт.

91

1303131C1

ROD

- lever shaft control linkage

1шт.

92

1303137C1

ANGLE

- rod lever control link

1шт.

93

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

94

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex flange, 3/8 NC x 3/4 inch

2шт.

95

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

96

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- control rod

1шт.

97

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SEAL - clamp, oil hose cover

1шт.

98

21886R1

HEADED PIN,1/4" x 1"

PIN - clevis, 1/4 x 1 inch

1шт.

99

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 3/64 inch

2шт.

100

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

101

1303127C1

LARGE PIN

LEVER - shift

1шт.

Выбрано товаров: 20
