Запчасти Case IH 1620 (9-054) - ROTOR DRIVE HOUSING MOUNTING (14) - ROTOR, CONCANVES & SIEVE

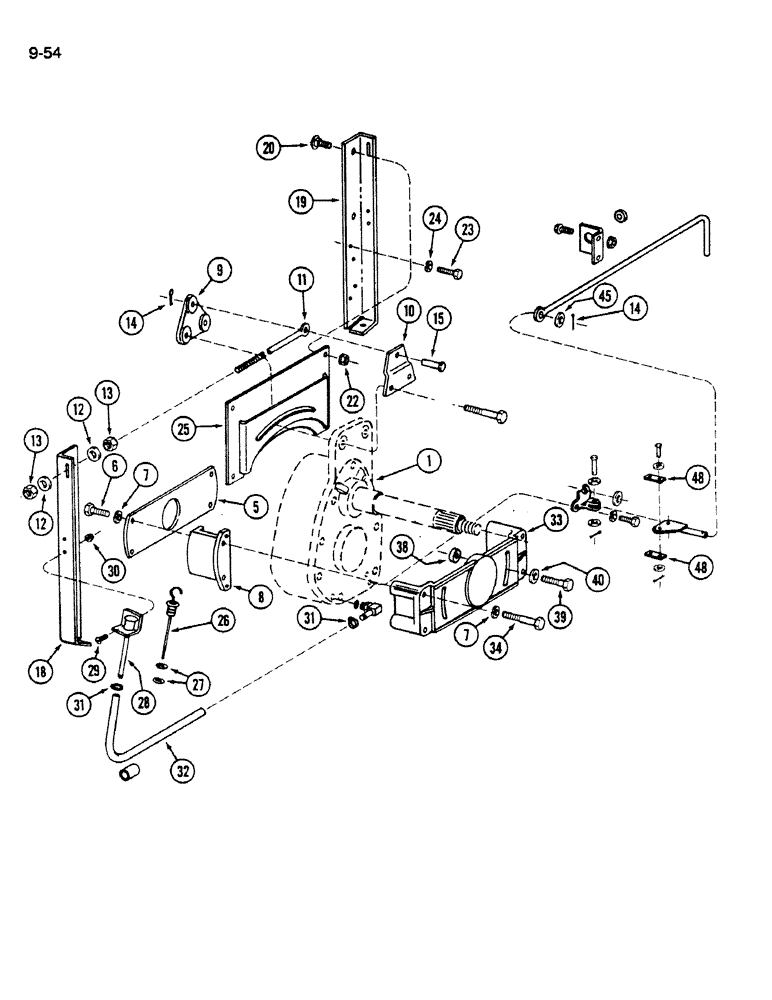

Схема запчастей Case IH 1620 - (9-054) - ROTOR DRIVE HOUSING MOUNTING (14) - ROTOR, CONCANVES & SIEVE
14
15
48
13
31
1
11
45
30
12
18
7
26
32
40
29
12
13
6
14
20
34
23
27
9
25
48
22
7
5
28
10
39
33
19
38
24
31
8

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HOUSING ASSEMBLY - drive, rotor, see Figure 9-066

1шт.

5

181445C1

SUPPORT

PLATE - support, front

1шт.

6

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

8

181446C1

BLOCK

- housing support, front

2шт.

9

188141C1

SUPPORT

- gear housing anchor

1шт.

10

188142C1

SUPPORT

- gear housing anchor

1шт.

11

186478C1

BOLT

EYE BOLT - gear housing

1шт.

12

464623R1

WASHER

- flat, 21/32 x 1-3/4 x 3/32 inch

2шт.

13

129-107

NUT,5/8"-11, G5

2шт.

14

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

3шт.

15

23170R1

HEADED PIN,1/2" x 2 3/8"

PIN - clevis, 1/2 x 2-3/8 inch

1шт.

18

186459C1

SUPPORT

- gear housing, left

1шт.

19

186460C1

SUPPORT

- gear housing, right

1шт.

20

111-541

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

6шт.

22

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch NC

6шт.

23

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

25

186200C1

SUPPORT ASSY.

SUPPORT - gear housing

1шт.

26

194066C91

DIPSTICK

GAUGE ASSEMBLY - rotor gear housing

1шт.

27

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- 3/4 x 1/8 inch

2шт.

28

193946C1

TUBE,12.7 mm OD

- gear housing gauge

1шт.

29

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

6шт.

30

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

6шт.

31

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

retaining #4, 0.25/0.62 Type F Worm

2шт.

32

NSS

NOT SOLD SEPARAT

HOSE - gear housing (Order S118466 and cut to desired length)

1шт.

33

1303135C1

SUPPORT

- gear housing, rear

1шт.

34

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

38

194077C1

SPACER

- gear housing

2шт.

39

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

40

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

- hardened

2шт.

45

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/64 inch

2шт.

48

1303133C1

BAR

- shift lever

2шт.

Выбрано товаров: 33
