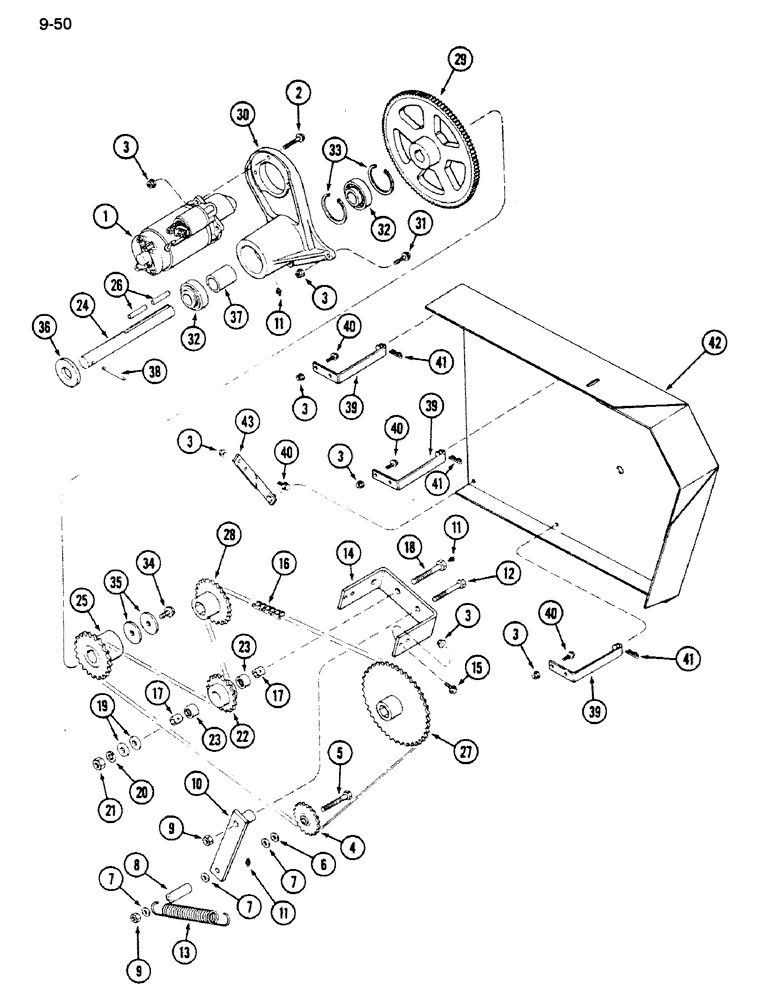

Запчасти Case IH 1620 (9-050) - FEEDER REVERSER, WITH ROCK TRAP (13) - FEEDER

1

REF

INSTRUCTION

MOTOR ASSEMBLY - feeder reverser, see Figure 4-046

1шт.

2

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

17шт.

4

541857R92

SPROCKET,15T

- idler, 15 teeth

1шт.

5

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

6

25547R1

WASHER,21/32" x 1 5/16" x .188", HDN

- flat, 21/32 x 1-5/16 x 3/16 inch

1шт.

7

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/64 inch

1шт.

8

187217C1

SPACER,7/8" Tube x 1 13/16"

- tube, 7/8 x 1-13/16 inch

1шт.

9

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

10

13219333

SUPPORT - idler

1шт.

11

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

12

113-629

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

1шт.

13

1330032C1

SPRING

- return

1шт.

14

1321528C2

SUPPORT

- idler, outer

1шт.

15

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex flange lock, 3/8 NC x 1-1/4 inch

4шт.

16

NSS

NOT SOLD SEPARAT

CHAIN - drive (Use 117 links from 10 foot roll marked 1793D, two connecting links 1317D and one roller link 1316D (Add 3 more links if beater extension is used)

1шт.

17

1327991C1

BUSHING,19.04mm ID x 25.37mm OD x 25.65mm L

- bearing

2шт.

18

1327990C1

BOLT,Hex, 3/4" - 10 x 4, Type 5, Drilled

1шт.

19

25548R1

WASHER

- flat, hardened, 13/16 x 1-1/2 x 7/32 inch

2шт.

20

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

21

129-108

NUT,3/4"-10, G5

1шт.

22

1321531C92

DRIVE SPROCKET

SPROCKET ASSEMBLY - fixed idler, 16 teeth, Includes: Ref. 23

1шт.

23

545320R91

NEEDLE BEARING,Needle, 25.39mm ID x 31.76mm OD x 20.62mm W

- needle

2шт.

24

1321534C1

SHAFT

- feeder reverser drive

1шт.

25

1329717C1

SPROCKET

- drive, 20 teeth

1шт.

26

Q51

KEY,3/8" Sq x 2 1/2", Par

2шт.

27

1329720C2

SPROCKET

- driven, 40 teeth

1шт.

28

1329719C2

SPROCKET

- rock trap drive, 20 teeth

1шт.

29

1321537C91

FLYWHEEL

- reverser motor

1шт.

30

1321539C1

HOUSING

- shaft and motor

1шт.

31

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

- hex flange, 3/8 NC x 1-1/2 inch

2шт.

32

597537R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING - ball, shaft

2шт.

33

659676R1

SNAP RING,3.156", Int, #315

Ring, Snap, , brg 3.156", Int, #315

2шт.

34

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex flange, 1/2 NC x 1 inch

1шт.

35

22042R1

WASHER

- flat, 17/32 x 2 x 7/64 inch

1шт.

36

30190R1

WASHER,M39 x 78.5 x 7, HT

- flat, 39 x 78 x 7 mm

1шт.

37

1321523C1

SPACER

- bearing

1шт.

38

28340R1

PIN,1/2" x 3", Coiled

1шт.

39

1321782C2

SUPPORT

- shield

3шт.

40

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

8шт.

41

480523R1

HAIR PIN COTTER

quick attachable

3шт.

42

1321905C2

GUARD

SHIELD - feeder reverser

1шт.

43

1321710C1

SUPPORT

- shield

1шт.
