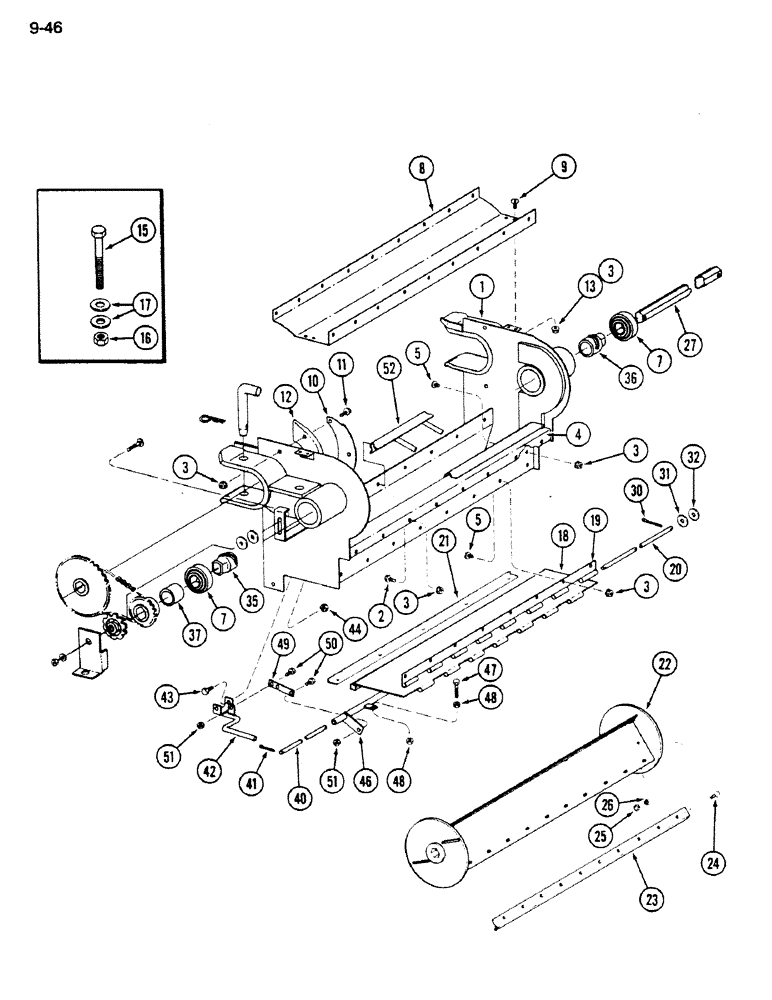

Запчасти Case IH 1620 (9-046) - ROCK TRAP (13) - FEEDER

1

1327629C3

HOUSING ASSY.

HOUSING - rock trap

1шт.

2

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

6шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

30шт.

4

1320279C1

ANGLE

- wear, rock trap

1шт.

5

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

12шт.

7

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

BEARING - heater

2шт.

8

1327925C1

COVER

- housing, beater

1шт.

9

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

8шт.

9

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

4шт.

10

1320254C1

PLATE

- seal, backup

2шт.

11

186056C1

BOLT

- hex, plate

4шт.

12

195202C1

SEAL

- feeder

2шт.

13

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

15

26632R1

BOLT,Hex, 1" - 8 x 6 1/2", Gr 8

- hex, 1 NC x 6-1/2 inch

2шт.

16

9413986

LOCK NUT,1"-8, GC

NUT - hex, 1 inch NC

2шт.

17

25847R1

WASHER

- flat, 1-1/16 x 2 x 7/64 inch

4шт.

18

1324907C1

INSPECTION DOOR

DOOR ASSEMBLY - trap, rock, Includes: Ref. 19 and 20

1шт.

19

1320154C1

HINGE

- door, rock trap

1шт.

20

1320149C1

ROD

- hinge, door

1шт.

21

1324880C1

ANGLE

- seal, rock trap

1шт.

22

1319834C1

BEATER

- feed trap

1шт.

23

1324438C1

SUPPORT

EXTENSION - blade, beater

3шт.

23

1320921C2

BLADE

- serrated

3шт.

24

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT - round head square neck, 3/8 NC x 1-1/2 inch

15шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

15шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

15шт.

27

1320168C3

BAR

SHAFT - beater

1шт.

30

132-185

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

2шт.

31

20705R1

WASHER

- flat, 1-25/32 x 2-1/2 x 3/64 inch

1шт.

32

95-28

WASHER,1 7/8" x 4" x .179"

- flat, 1-25/32 x 2-1/2 x 7/64 inch

1шт.

35

1320268C1

SPACER

- sprocket, feeder, left

1шт.

36

1320269C1

SPACER

- sprocket, feeder, right

1шт.

37

1320167C2

SPACER

- 1-7/8 x 2-1/8 x 1-17/32 inch

1шт.

40

1320151C1

ROD

- latch, door

1шт.

41

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

42

1324752C1

HANDLE

- door, left (Replaces 1320204C1)

1шт.

43

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

44

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

46

1957362C1

SUPPORT

- door trap (Replaces 1324746C1)

1шт.

47

174608C2

BOLT,Hex, 3/8" - 16 x 1 1/2"

- hex, 3/8 NC x 1-1/2 inch

2шт.

48

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

49

1320128C1

LINK

- connecting

2шт.

50

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

51

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

2шт.

52

1320846C1

SUPPORT ASSY.

ANGLE - support

1шт.
