(9-044) - FEEDER PIVOT STRIPPER ATTACHMENT, RICE COMBINES ONLY

Запчасти Case IH 1620 (9-044) - FEEDER PIVOT STRIPPER ATTACHMENT, RICE COMBINES ONLY (13) - FEEDER

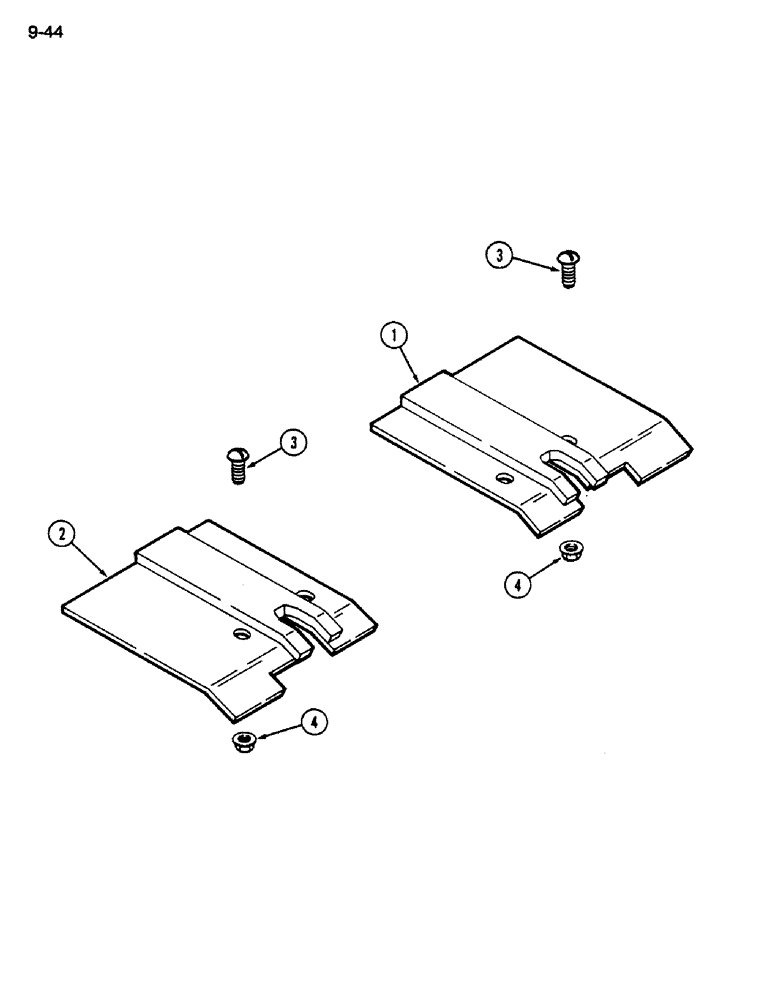

Схема запчастей Case IH 1620 - (9-044) - FEEDER PIVOT STRIPPER ATTACHMENT, RICE COMBINES ONLY (13) - FEEDER
3
2
4
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1300464C91

PACKAGE

ATTACHMENT - feeder pivot strippers, Includes: Ref. 1 - 4

1шт.

1

REF

INSTRUCTION

STRIPPER - left, see Figure 9-042

1шт.

2

REF

INSTRUCTION

STRIPPER - right, see Figure 9-042

1шт.

3

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

4шт.

4

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.
