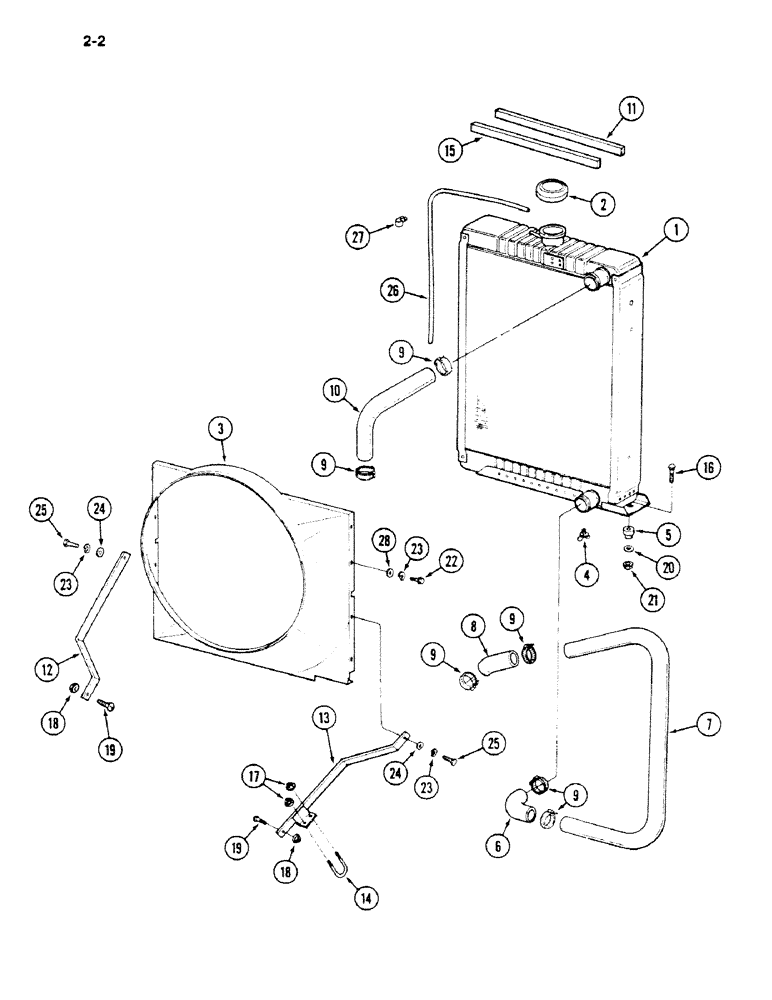

Запчасти Case IH 1620 (2-002) - RADIATOR AND ATTACHING PARTS (01) - ENGINE

1

1252643C1

RADIATOR

ASSEMBLY - coolant

1шт.

2

A149609

CAP

ASSEMBLY - radiator pressure

1шт.

3

1312826C1

SHROUD

- fan

1шт.

4

86982771

VALVE

- 1/4 inch, drain cock

1шт.

5

400159R1

BUMPER

ABSORBER - shock

2шт.

6

680514R1

LARGE HOSE

HOSE - radiator outlet

1шт.

7

130870C1

TUBE

- radiator outlet

1шт.

8

107689C1

RADIATOR HOSE,2.00" ID x 4.50"

Water Pump Inlet 2.00" ID x 4.50"

1шт.

9

214-259

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP - hose, No. 32, Type F

6шт.

10

121710C1

RADIATOR HOSE,50.80 mm ID x 310.00 mm, SAE 20R4 CLASS D-2

50.80 mm ID x 310.00 mm, SAE 20R4 Class D-1, Inlet

1шт.

11

1321354C1

SEAL

SEAL - radiator top and bottom

2шт.

12

194912C1

SUPPORT

- radiator, left

1шт.

13

146450C1

SUPPORT

ASSEMBLY - radiator, right

1шт.

14

146452C1

BOLT,5/16" - 18 x 58.75mm W x 68mm L

U-BOLT - radiator pipe

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - radiator baffle, 36 inch (Order 1319664C1, and, Serial Range: cut-length)

2шт.

16

111-422

CARRIAGE BOLT,Short NK, 7/16"-14 x 2", G2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 2", G2

2шт.

17

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - flange lock, 5/16 inch (High torque)

2шт.

18

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

2шт.

19

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

2шт.

20

23043R1

WASHER

- flat, 15/32 x 2 x 7/64 inch

4шт.

21

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

2шт.

22

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW - tap, 5/16 x 3/4 inch

6шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

24

134238R1

WASHER

- flat, 11/32 x 1 x 3/64 inch

2шт.

25

187-1071

SELF-TAP SCREW,Hex Hd, 5/16" x 1 1/4"

SCREW - tap, 5/16 x 1-1/4 inch

2шт.

26

NSS

NOT SOLD SEPARAT

HOSE - radiator overflow, 38 inch (Order 87086C1 and, Serial Range: cut-length)

1шт.

27

98959R1

CLAMP

- 1/2 inch diameter bare closed

2шт.

28

106969R1

WASHER

- flat, 11/32 x 1-1/4 x 3/64 inch

6шт.
