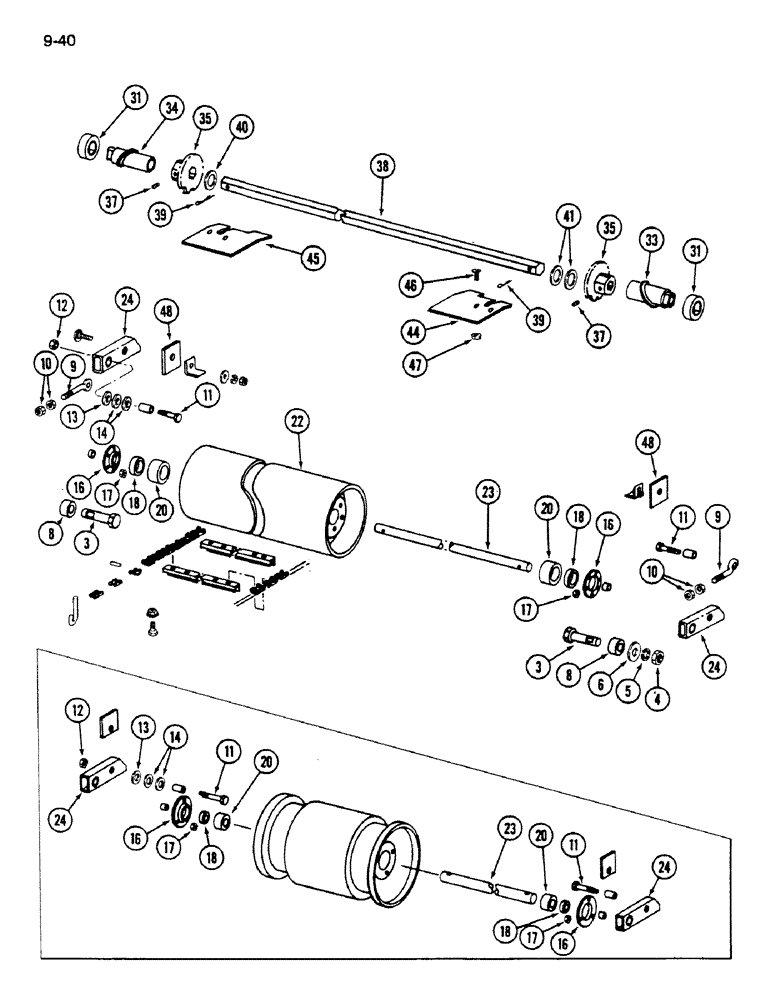

Запчасти Case IH 1620 (9-040) - FEEDER CONVEYOR (13) - FEEDER

1

1324266C2

CHAIN (CE)

CHAIN - conveyor (Grain and corn) (Replaces 1319201C91)

1шт.

1

1323678C2

CHAIN (AG)

CHAIN - conveyor (Rice) (Replaces 1307279C92)

1шт.

2

1313419C1

SLAT

- conveyor (Grain and corn)

1шт.

2

1300287C1

CONNECTING STRIP

SLAT - conveyor (Rice)

1шт.

3

189709C1

BOLT,Hex, 1/2" - 13 x 3"

- clamp, chain

2шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

22770R1

WASHER

- flat, 17/32 x 1-1/2 x 5/32 inch

2шт.

8

197211C1

SPACER

- stop, drum

2шт.

9

176508C1

BOLT,5/8" - 11 x 228.60mm

- tightening

2шт.

10

129-107

NUT,5/8"-11, G5

4шт.

11

187218C1

BOLT

- support arm, drum

2шт.

12

129-107

NUT,5/8"-11, G5

4шт.

13

21782R1

WASHER

- flat, 21/32 x 1-1/4 x 3/64 inch

1шт.

14

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/64 inch

2шт.

16

1330461C1

FLANGED BEARING

- bearing, drum JJC0022109 to

2шт.

16

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing, drum, Serial Range: -JJC0022109

2шт.

17

1306680C1

FLANGE NUT

NUT - hex flange, 3/8 inch NC JJC0022109 to

12шт.

17

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB, Serial Range: -JJC0022109

6шт.

18

557995R11

COLLAR

ASSEMBLY - locking, bearing

2шт.

20

619738R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

- drum, conveyor

2шт.

22

1957437C1

DRUM

- conveyor (Without stone retarder) (Replaces 1319861C1)

1шт.

23

187207C2

SHAFT,31.75mm OD x 909.3mm L

SHAFT - drum, feeder

1шт.

24

1305103C1

ARM ASSY.

ARM ASSEMBLY - drum (Grain and corn)

2шт.

31

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

BEARING ASSEMBLY - shaft

2шт.

33

178780C1

SPACER

- sprocket, left

1шт.

34

178781C1

SPACER

- sprocket, right

1шт.

35

197556C1

SPROCKET ASSY.

SPROCKET - chain, conveyor

2шт.

37

197643C1

SET SCREW

- set, sprocket

4шт.

38

1321714C1

BAR

SHAFT - conveyor

1шт.

39

132-185

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

2шт.

40

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-25/32 x 2-1/2 x 7/64 inch

1шт.

41

20705R1

WASHER

- flat, 1-25/32 x 2-1/2 x 3/64 inch

2шт.

44

185818C1

STRIPPER ASSY.

STRIPPER - pivot, left

1шт.

45

185819C1

STRIPPER ASSY.

STRIPPER - pivot, right

1шт.

46

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

4шт.

47

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

48

187347C1

PLATE

BAR - stop, upper (Without stone retarder)

2шт.
