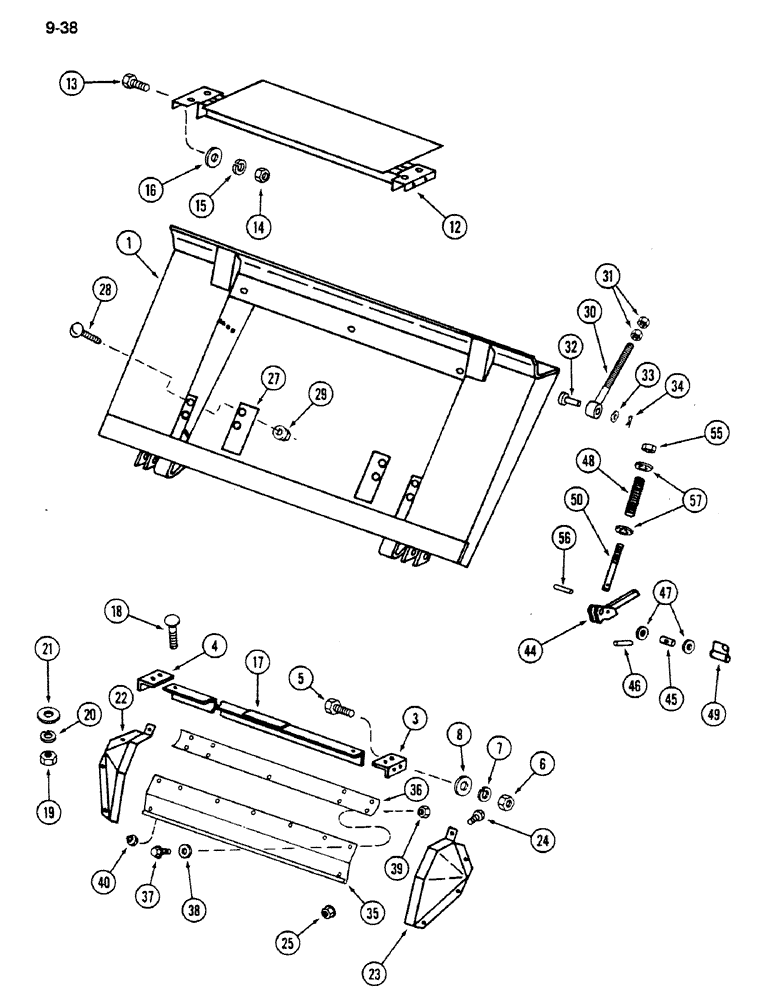

Запчасти Case IH 1620 (9-038) - FEEDER ADAPTER AND DEFLECTOR (13) - FEEDER

1

1321689C4

ADAPTER

- feeder

1шт.

3

175913C1

ANGLE

- adapter, left

1шт.

4

175914C1

ANGLE

- adapter, right

1шт.

5

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

8

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

2шт.

12

187187C2

SUPPORT ASSY.

SUPPORT - reinforcement (With rock trap)

1шт.

13

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

16

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

2шт.

17

1319744C1

SUPPORT ASSY.

STIFFENER - feeder bottom

1шт.

18

598819R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT - round head square neck, 5/8 NC x 2-1/4 inch

2шт.

19

129-107

NUT,5/8"-11, G5

2шт.

20

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21

22810R1

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

- flat, 21/32 x 1-1/4 x 3/64 inch

2шт.

22

184853C1

DEFLECTOR

- front, left

1шт.

23

184854C1

DEFLECTOR

- front, right

1шт.

24

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

8шт.

25

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

8шт.

27

181646C1

SUPPORT

FILLER - face wear (For rice)

2шт.

28

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

4шт.

29

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

30

1321735C1

BOLT

BOLT - adapter adjusting

2шт.

31

129-184

NUT,1/2"-13, G8

- hex, 1/2 inch NC

4шт.

32

26204R1

HEADED PIN,1/2" x 2 1/4"

PIN - headed, 1/2 x 2-1/4 inch

2шт.

33

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

34

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

35

1319479C1

COVER

- adapter, feeder

1шт.

36

1319474C1

BAND

COVER - top, feeder

1шт.

37

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

12шт.

38

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/4 inch

12шт.

39

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

12шт.

40

1321640C1

GROMMET

- cover, adapter

2шт.

44

179024C1

HINGE

HANDLE - lock, latch

2шт.

45

177141C1

PIN,15.88mm OD x 41mm L

- pivot, handle

2шт.

46

617057R1

PIN,1/4" x 1", Coiled

2шт.

47

21471R1

WASHER

- flat, 21/32 x 1 x 7/64 inch

4шт.

48

367833R1

SPRING

- rod, latch

2шт.

49

1338021C1

PIN,7.94mm OD

- lock, latch

2шт.

50

177138C1

ROD

- latch

2шт.

55

25077R1

LOCK NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

2шт.

56

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

2шт.

57

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

4шт.
