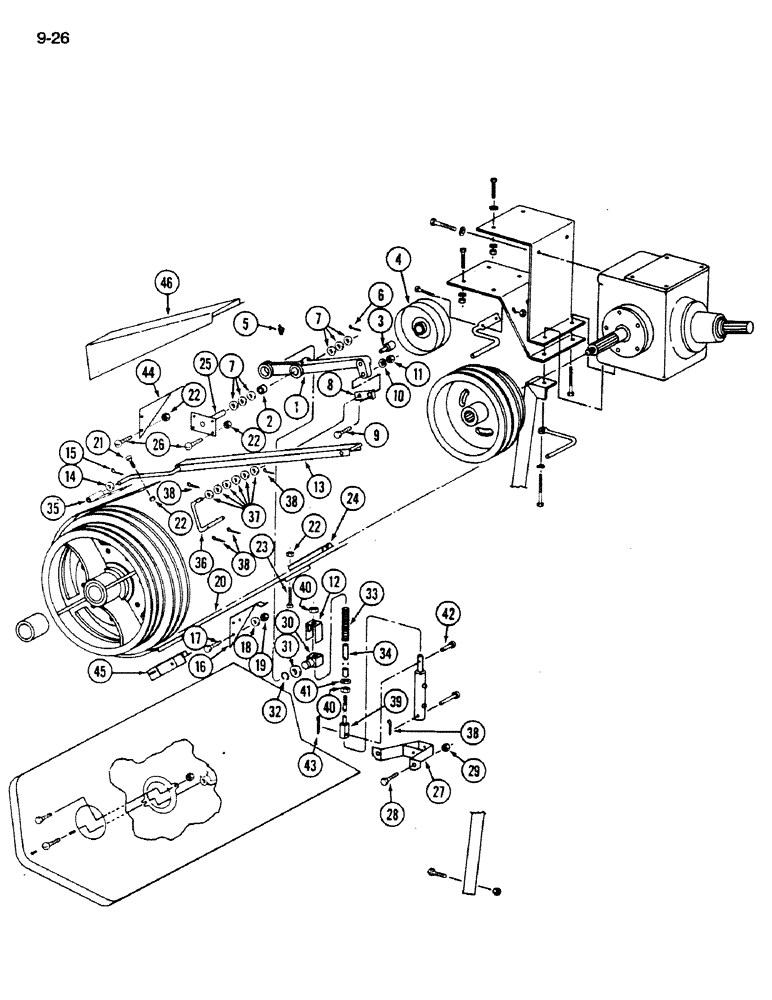

Запчасти Case IH 1620 (9-026) - FEEDER DRIVE, WITHOUT ROCK TRAP (13) - FEEDER

1

186864C91

LEVER ASSY.

LEVER ASSEMBLY - drive idler, Includes: Ref. 2 - 4

1шт.

2

186431C1

BUSHING

- idler lever

2шт.

3

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

- idler lever pulley

1шт.

4

192865C1

PULLEY

- idler, 8 inch OD

1шт.

5

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, 1/8 inch PT x 45 degree

1шт.

6

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

7

21761R1

WASHER

- flat, 29/32 x 1-1/2 x 3/64 inch

6шт.

8

181042C1

SUPPORT

- upper belt guide

1шт.

9

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

10

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

129-107

NUT,5/8"-11, G5

1шт.

12

194357C2

CHANNEL

- tightener

1шт.

13

186875C1

GUIDE

- belt

1шт.

14

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 1/8 inch

1шт.

15

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

16

186879C1

SUPPORT ASSY.

SUPPORT - belt guide, rear

1шт.

17

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, Grade 8

3шт.

18

21375R1

WASHER

- flat, 17/32 x 1-1/4 x 11/64 inch

3шт.

19

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex, 1/2 inch NC, Grade 8

3шт.

20

186881C1

GUARD ASSY.

GUARD - drive belt

1шт.

21

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

- hex flange, 3/8 NC x 1-1/2 inch

2шт.

22

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

16шт.

23

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 1 inch

4шт.

24

186377C1

V-BELT,22.33 mm W x 3370.69 mm L

Feeder drive 22.33 mm W x 3370.69 mm L

1шт.

25

186866C1

SUPPORT ASSY.

SUPPORT - idler pivot

1шт.

26

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

10шт.

27

194369C2

SUPPORT

- cylinder

1шт.

28

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

29

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.

30

186853C1

PIVOT

- spring rod

1шт.

31

23047R1

WASHER

- flat, 1-17/32 x 2-1/2 x 3/64 inch

1шт.

32

R13338

SNAP RING,#150, Ext

Ring, Snap, , spring rod #150, Ext

1шт.

33

186745C1

SPRING

- tightener rod

1шт.

34

186472C2

TUBE,0.875" OD, 320 mm Length

- spring rod

1шт.

35

186873C1

HINGE

- pivot

1шт.

36

186874C1

ROD

- retainer

1шт.

37

142619H

WASHER

- flat, 13/32 x 3/4 x 7/64 inch

6шт.

38

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

5шт.

39

194216C2

ROD

- tightener

1шт.

40

129-105

NUT,Hex, 1/2" - 13, Gr 5

10шт.

41

460908R1

WASHER

- flat, 17/32 x 1-1/2 x 7/64 inch

1шт.

42

23304R1

CLEVIS PIN,3/8" x 1 9/16"

PIN, CLEVIS, 3/8" x 1 9/16"

1шт.

43

132-321

COTTER PIN,3/32" x 1"

PIN - cotter, 3/32 x 3/4 inch

1шт.

44

186878C2

SUPPORT

- belt guard upper

1шт.

45

181373C1

SUPPORT ASSY.

SUPPORT - belt guard lower

1шт.

46

1322658C2

COVER ASSY

COVER - drive belt upper

1шт.
