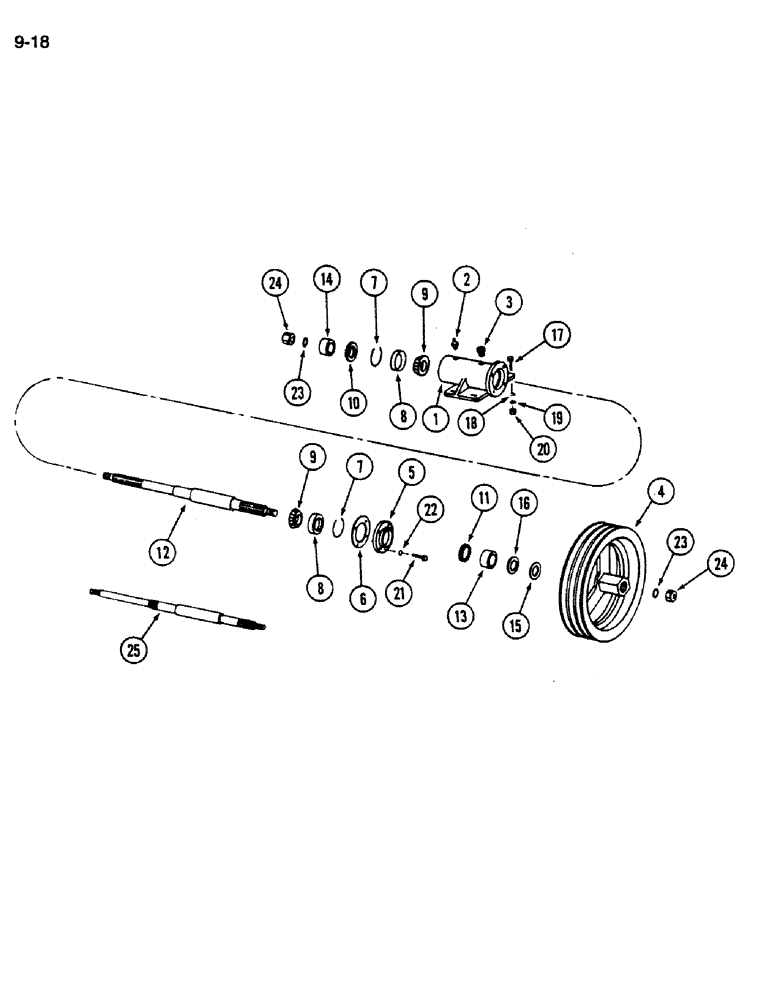

Запчасти Case IH 1620 (9-018) - JACKSHAFT BEARING BLOCK (13) - FEEDER

1

181369C1

BEARING HOUSING

BLOCK - bearing

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8 PTF, extra short

1шт.

3

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

VALVE - breather

1шт.

4

191452C2

PULLEY

- driven, 14-3/4 inch OD

1шт.

5

189419C1

FLANGE,2.4788" ID x 4.5" OD x 1.3"

HUB - rear bearing

1шт.

6

156229C1

SHIM,76.45mm ID x 111.25mm OD x 0.13mm Thk

1шт.

6

188183C1

SHIM,0.007" Thk

1шт.

6

188184C1

SHIM,0.010" Thk

1шт.

7

378691R1

RING

- retaining

2шт.

8

61802C91

ROLLER BEARING,38mm ID x 17mm Thk

CONE - jackshaft bearing, 1-15/32 inch ID

2шт.

9

61801C1

BEARING CUP,63mm OD x 13.5mm W

CUP - jackshaft bearing, 2-15/32 inch ID

2шт.

10

188931C1

OIL SEAL,47.63mm ID x 63.7mm OD x 8.41mm Thk

Hub Front 1.875" ID x 2.503" OD x .62

1шт.

11

384386R91

OIL SEAL,42.7mm ID x 63.7mm OD x 8.33mm Thk

Hub Rear 1.752" ID x 2.503" OD x .689

1шт.

12

1957657C1

SHAFT

- drive, Start Serial: JJC0022115

1шт.

13

191518C2

SPACER

- rear

1шт.

14

188930C1

RING,38.05mm ID x 57.15mm OD x 27mm L

SPACER - front

1шт.

15

162678C1

WASHER,1 1/2" ID x 2" OD x .060" Thk

Jackshaft 1 1/2" ID x 2" OD x .060" Thk

1шт.

16

160191C2

WASHER

- jackshaft, 1-1/2 x 2 x 3/16 inch

2шт.

17

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - round head, square neck, 1/2 NC x 1-3/4 inch

6шт.

18

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

- flat, 17/32 x 1-1/2 x 3/16 inch

6шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

20

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

21

20617SR1

BOLT - hex, 5/16 NC x 1 inch

4шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

23

25847R1

WASHER

- flat, 1-1/16 x 2 x 7/32 inch

2шт.

24

9413986

LOCK NUT,1"-8, GC

NUT - hex lock, 1 inch NC

2шт.

25

1308505C1

SHAFT

- drive, Serial Range: -JJC0022115

1шт.
