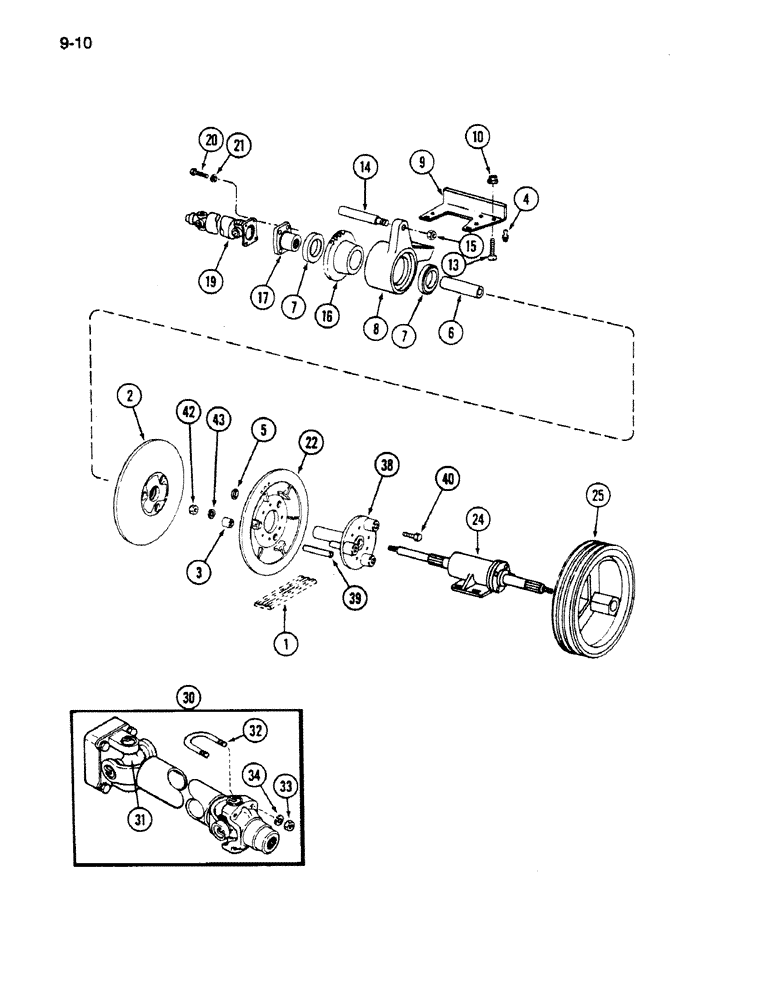

Запчасти Case IH 1620 (9-010) - SEPARATOR JACKSHAFT DRIVE, P.I.N. JJC0022115 AND AFTER (13) - FEEDER

1

REF

INSTRUCTION

BELT - rotor variable drive (See Page 9-5)

1шт.

2

1330054C1

PULLEY

ASSEMBLY - rotor drive variable, 17-1/2 inch OD, Includes: Ref. 3

1шт.

3

194665C1

BUSHING

- pulley

3шт.

4

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, taper drive, 1/8 inch

1шт.

5

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

RING - rotor drive pulley

2шт.

6

191549C2

SLEEVE

- rotor jackshaft

1шт.

7

194654C91

BALL BEARING,2.75" ID x 4.481" OD x 0.87"

BEARING - jackshaft thrust

2шт.

8

194394C1

HUB

FITTING - variable pulley female

1шт.

9

188309C2

SUPPORT

- variable pulley limit switch

1шт.

10

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

13

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

2шт.

14

194496C2

LARGE PIN

STUD - variable stop

1шт.

15

129-108

NUT,3/4"-10, G5

- hex, 3/8 inch NC

1шт.

16

194464C2

SPROCKET

- variable pulley male, 25 teeth

1шт.

17

191542C2

SPLINED COUPLING,12T

COUPLING - universal joint

1шт.

19

REF

INSTRUCTION

JOINT ASSEMBLY - universal drive (See Ref. 30)

1шт.

20

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

Hex, 7/16"-14 x 1 1/4", Grade 8

4шт.

21

366863C1

LOCK WASHER

WASHER - rib lock, 7/16 inch

4шт.

22

188848C1

PULLEY

ASSEMBLY - rotor drive stationary

1шт.

24

REF

INSTRUCTION

BLOCK ASSEMBLY - jackshaft bearing, see Figure 9-018

1шт.

25

REF

INSTRUCTION

PULLEY - separator jackshaft driven, see Figure 9-004

1шт.

30

191596C91

DRIVE SHAFT

JOINT ASSEMBLY - universal drive, Includes: Ref. 31 - 34

1шт.

31

1300502C1

KIT

BEARING KIT - journal

1шт.

32

1300501C1

U-BOLT,3/8" - 24 x 1.66" W x 1.40" L

- yoke

2шт.

33

129-123

NUT,3/8"-24, G5

4шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

38

188846C1

HUB

ASSEMBLY - pulley, Includes: Ref. 39

1шт.

39

191544C2

PIN,28.48mm OD x 127mm L

- stationary drive pulley

3шт.

40

24863R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

6шт.

41

123174

LOCK WASHER,1/2"

1/2"

6шт.

42

129-184

NUT,1/2"-13, G8

- hex, 1/2 inch NC

6шт.
