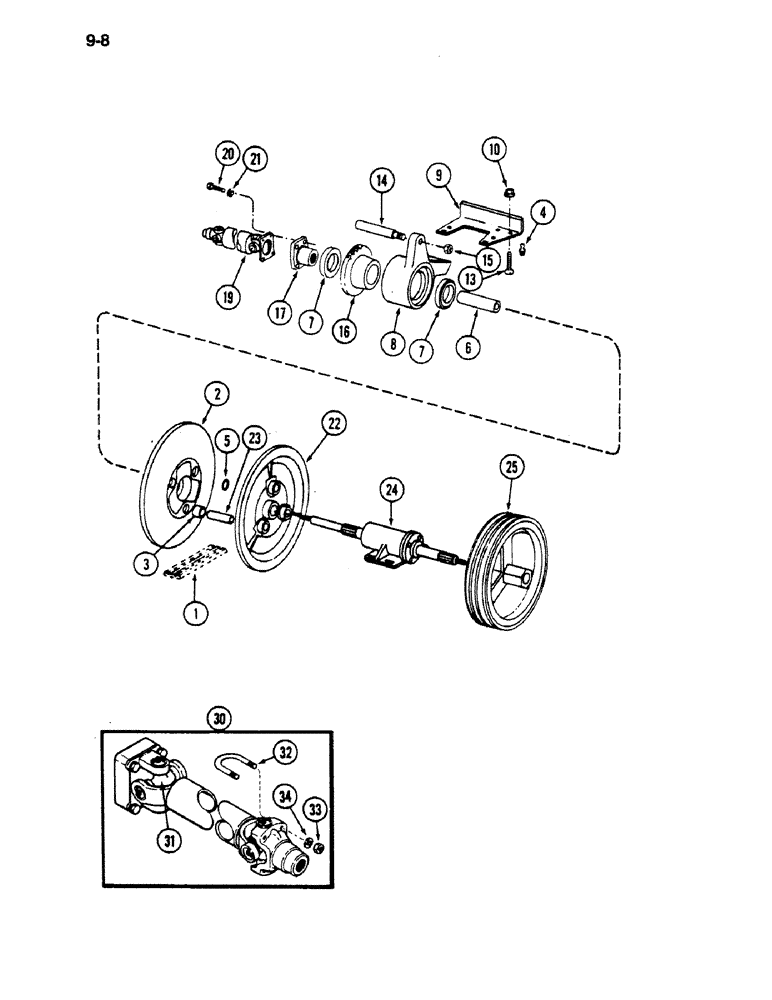

Запчасти Case IH 1620 (9-008) - SEPARATOR JACKSHAFT DRIVE, PRIOR TO P.I.N. JJC0022115 (13) - FEEDER
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
BELT - rotor variable drive (See Page 9-5)
1шт.
2
193620C92
PULLEY ASSY.
PULLEY ASSEMBLY - rotor drive variable, 17-1/2 inch OD, Includes: Ref. 3
1шт.
3
194665C1
BUSHING
3шт.
4
219-86
LUBE NIPPLE,1/8" NPTF
FITTING - grease, taper drive, 1/8 inch
1шт.
5
F62076
O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro
RING - rotor drive pulley
2шт.
6
191549C2
SLEEVE
- rotor jackshaft
1шт.
7
194654C91
BALL BEARING,2.75" ID x 4.481" OD x 0.87"
BEARING - jackshaft thrust
2шт.
8
194394C1
HUB
FITTING - variable pulley female
1шт.
9
188309C2
SUPPORT
- variable pulley limit switch
1шт.
10
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
- hex flange lock, 3/8 inch NC
2шт.
13
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
- slotted truss head, 3/8 NC x 1 inch
2шт.
14
194496C2
LARGE PIN
STUD - variable stop
1шт.
15
129-108
NUT,3/4"-10, G5
- hex, 3/8 inch NC
1шт.
16
194464C2
SPROCKET
- variable pulley male, 25 teeth
1шт.
17
191542C2
SPLINED COUPLING,12T
COUPLING - universal joint
1шт.
19
REF
INSTRUCTION
JOINT ASSEMBLY - universal drive (See Ref. 30)
1шт.
20
113-312
BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5
Hex, 7/16"-14 x 1 1/4", Grade 8
4шт.
21
366863C1
LOCK WASHER
WASHER - rib lock, 7/16 inch
4шт.
22
193622C92
PULLEY ASSY.
PULLEY ASSEMBLY - rotor drive stationary, 17-1/2 inch OD, Includes: Ref. 23 and 24
1шт.
24
REF
INSTRUCTION
BLOCK ASSEMBLY - jackshaft bearing, see Figure 9-018
1шт.
25
REF
INSTRUCTION
PULLEY - separator jackshaft driven, see Figure 9-004
1шт.
30
191596C91
DRIVE SHAFT
JOINT ASSEMBLY - universal drive, Includes: Ref. 31 - 34
1шт.
31
1300502C1
KIT
BEARING KIT - journal
1шт.
32
1300501C1
U-BOLT,3/8" - 24 x 1.66" W x 1.40" L
- yoke
2шт.
33
129-123
NUT,3/8"-24, G5
4шт.
34
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
Выбрано товаров: 27
