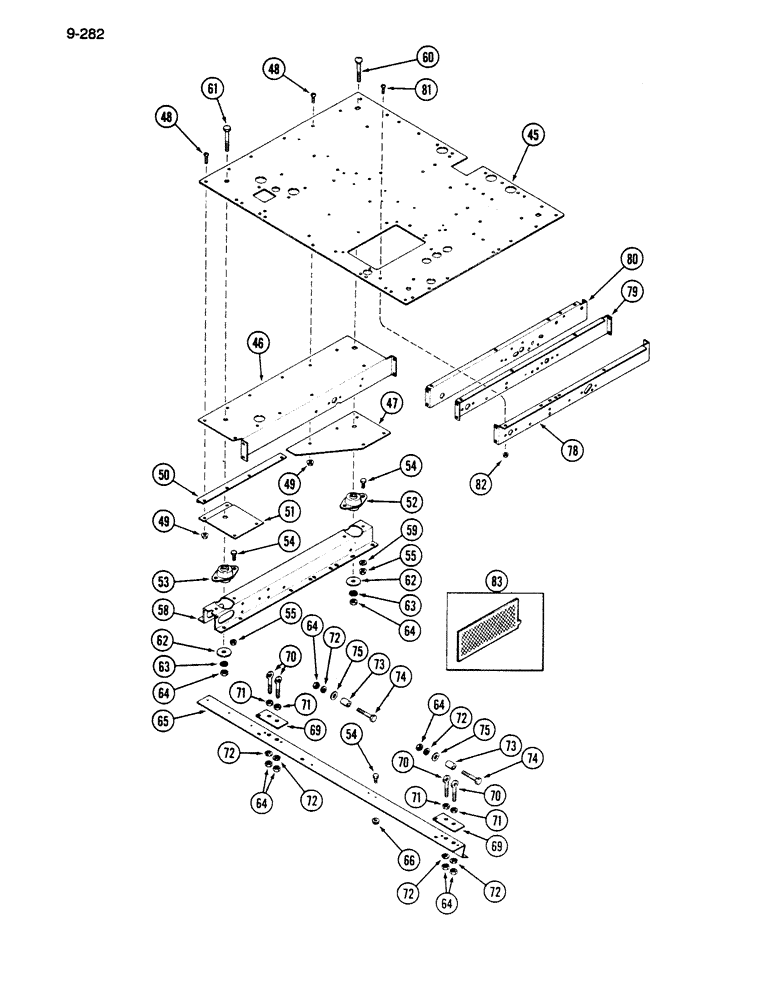

Запчасти Case IH 1620 (9-282) - OPERATORS PLATFORM AND SUPPORTS (CONTD) (12) - CHASSIS

45

REF

INSTRUCTION

PLATFORM - plate, operator, see Ref. 1 in Figure 9-280

1шт.

46

195520C3

SUPPORT

- platform, left side

1шт.

47

183669C2

PLATE

- platform, left front

1шт.

48

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

4шт.

49

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

50

183680C1

ANGLE

- stiffener, left

1шт.

51

183679C1

PLATE

- support, left rear

1шт.

52

117722C4

INSULATOR

- vibration, front mount

1шт.

52

117722C4GV

INSULATOR

- vibration, front mount

1шт.

53

196950C2

MOUNTING PARTS

INSULATOR - vibration, rear mount

1шт.

54

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

55

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

4шт.

58

195507C6

SUPPORT

- side, platform

1шт.

59

22184R1

WASHER

- flat, 1-5/32 x 1-5/8 x 3/64 inch

4шт.

60

1317014C1

CARRIAGE BOLT,Short Sq Nk, 3/4" - 10 x 5", Type 5

BOLT - round head square neck, 3/4 NC x 5 inch

1шт.

61

131-714

LOCK NUT

BOLT - hex, 3/4 NC x 5 inch

1шт.

62

196591C

WASHER - flat, mounting

2шт.

63

24771R1

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

64

129-108

NUT,3/4"-10, G5

8шт.

65

195810C3

SUPPORT

- front, platform

1шт.

66

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

4шт.

69

196592C2

BAR

- leveling

2шт.

70

165648C2

BOLT,3/4" - 10 x 4 1/2"

- eye, leveling

4шт.

71

426897

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NC

4шт.

72

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

73

591070R1

SPACER,3/4" Pipe x 1 7/16"

- 3/4 x 1-7/16 inch

2шт.

74

113-736

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex, 3/4 NC x 4-1/4 inch

2шт.

75

193-98

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

2шт.

78

195519C4

SUPPORT

- platform, right center

1шт.

79

195521C3

SUPPORT

- platform, center

1шт.

80

195557C7

SUPPORT

- platform, left center

1шт.

81

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

10шт.

82

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

10шт.

83

1284365C2

REFLECTOR

- amber

1шт.
