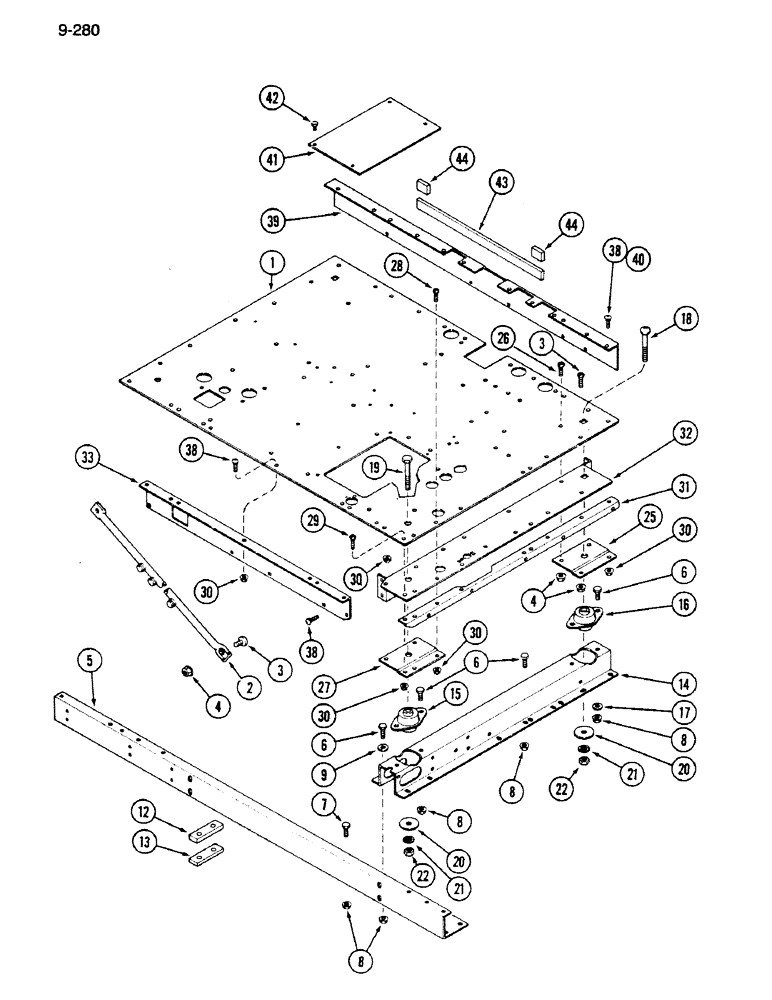

Запчасти Case IH 1620 (9-280) - OPERATORS PLATFORM AND SUPPORTS (12) - CHASSIS

1

1321937C3

PLATE

PLATFORM - plate, operator

1шт.

2

1970179C1

ROD

- extension, platform

1шт.

3

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

2шт.

4

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

5

1301360C1

SUPPORT

- mounting, rear

1шт.

6

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

12шт.

7

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

4шт.

8

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

16шт.

9

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

4шт.

12

193428C1

BAR

- shim, mounting

2шт.

13

195715C1

BAR

- shim, mounting

2шт.

14

195507C6

SUPPORT

- side, platform

1шт.

15

196950C2

MOUNTING PARTS

INSULATOR - vibration, rear mount

1шт.

16

117722C4

INSULATOR

- vibration, front mount

1шт.

16

117722C4GV

INSULATOR

- vibration, front mount

1шт.

17

22184R1

WASHER

- flat, 1-5/32 x 1-5/8 x 3/64 inch

2шт.

18

1317014C1

CARRIAGE BOLT,Short Sq Nk, 3/4" - 10 x 5", Type 5

BOLT - round head square neck, 3/4 NC x 5 inch

1шт.

19

113-714

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

20

196591C1

WASHER

- flat, insulator

2шт.

21

24771R1

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

22

129-108

NUT,3/4"-10, G5

2шт.

25

183668C2

PLATE

- support, right front

1шт.

26

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

2шт.

27

183678C1

PLATE

- support, right rear

1шт.

28

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

29

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

1шт.

30

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

31

196969C4

SUPPORT

- angle, right side

1шт.

32

195518C7

SUPPORT

- platform, right side

1шт.

33

195516C3

SUPPORT

- rear, platform

1шт.

P/N 1301360C2 Support/A Rear mtg. Channel FEC DO 160 has slotted holes.

1шт.

38

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT - round head square neck, 5/16 NC x 1/2 inch

18шт.

39

1327564C2

SUPPORT

- front, platform

1шт.

40

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

41

193029C2

PLATE

COVER - access, brake

1шт.

42

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - hex head tap, 1/4 NC x 1/2 inch

4шт.

43

187885C1

SEALING STRIP

- 26 inch

1шт.

44

187884C1

SEALING STRIP,50mm L

- 2 inch

1шт.
