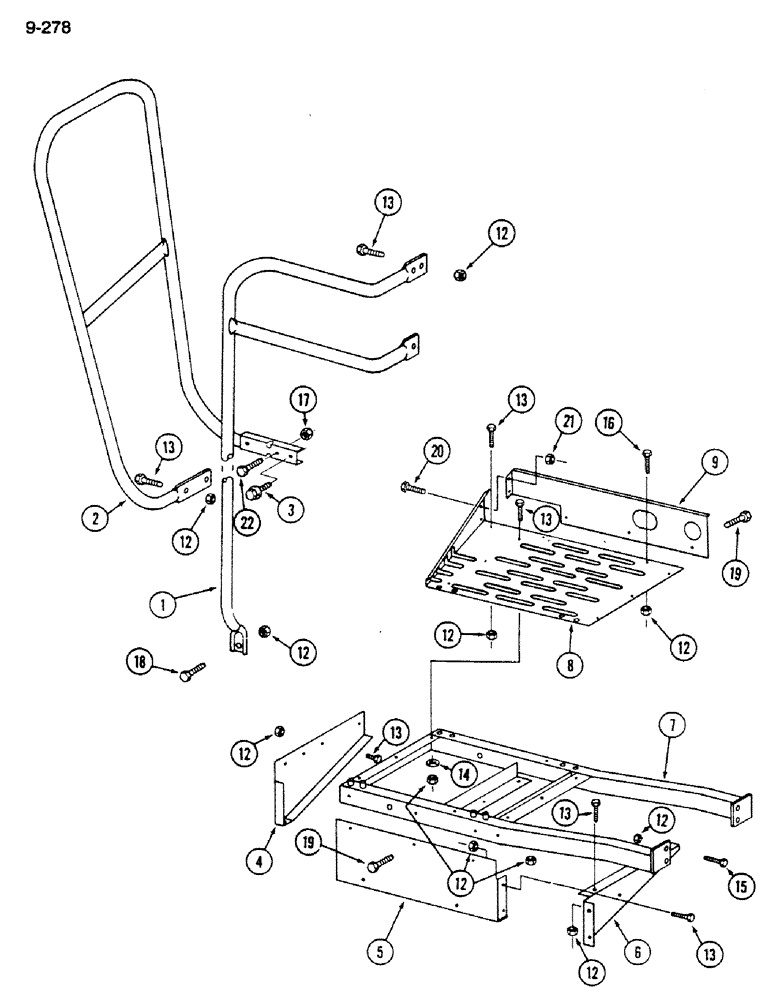

Запчасти Case IH 1620 (9-278) - OPERATORS PLATFORM EXTENSION (12) - CHASSIS

1

196642C1

RAIL

ASSEMBLY - platform extension, rear

1шт.

2

198548C2

RAIL

ASSEMBLY - platform extension, front

1шт.

3

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex flange, 3/8 NC x 3/4 inch

1шт.

4

198541C2

SUPPORT

- platform extension, front

1шт.

5

198543C3

SUPPORT

- platform extenison, left

1шт.

6

198544C1

SUPPORT

- operators platform extension

1шт.

7

198535C4

SUPPORT

ASSEMBLY - extension

1шт.

8

198547C2

PLATE

TREAD - platform extension

1шт.

9

198542C1

SUPPORT

- extension right

1шт.

12

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch

22шт.

13

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

15шт.

14

178372R1

WASHER

- flat, 13/32 x 1-1/4 x 3/64 inch

3шт.

15

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

5шт.

16

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

17

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch

1шт.

18

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

19

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - hex tapping, 1/4 x 1/2 inch

6шт.

20

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

2шт.

21

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

2шт.

22

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

- hex machine, 1/2 NC x 2-3/4 inch

1шт.
