Запчасти Case IH 1620 (9-272) - PIVOTING LADDER (12) - CHASSIS

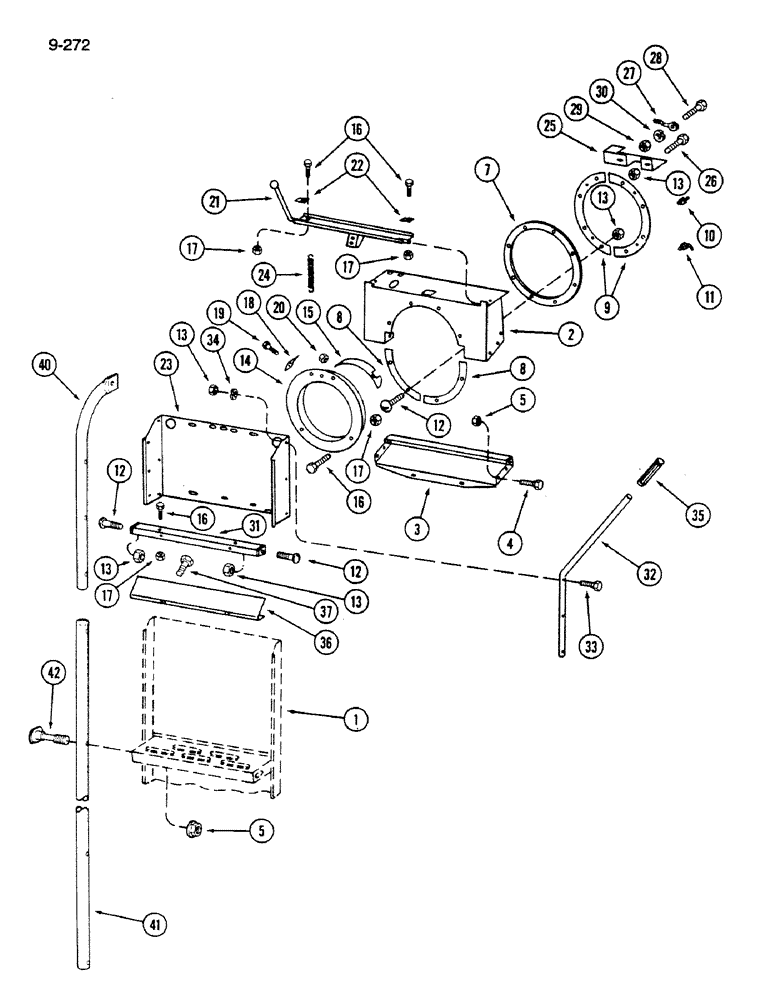

Схема запчастей Case IH 1620 - (9-272) - PIVOTING LADDER (12) - CHASSIS
29
3
28
42
15
13
18
37
17
9
16
19
13
10
17
22
16
1
41
25
23
26
13
20
27
7
40
5
8
8
5
30
17
12
12
12
36
2
11
32
13
21
31
13
35
4
34
14
33
17
16
24

Артикул

Название

Примечание

Количество

1

1317520C91

LADDER

AND STEPS - operator (With decal)

1шт.

2

187941C1

SUPPORT

- pivot extension

1шт.

3

187949C2

SUPPORT

ASSEMBLY - pivot extension center lever

1шт.

4

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

11шт.

5

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

21шт.

7

187951C1

RETAINER

- pivot outer

1шт.

8

187952C1

RETAINER

- pivot ring

2шт.

9

187953C1

RETAINER

- pivot ring lube

2шт.

10

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

11

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Taper 90º, 1/4"-28 NPT x .75" lg, Drive

2шт.

12

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW - hex lock, 3/8 NC x 1 inch

9шт.

13

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch

12шт.

14

187955C3

FLANGE

- ladder pivot

1шт.

15

187984C3

SUPPORT

- ladder latch

1шт.

16

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

9шт.

17

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch

9шт.

18

1301172C3

SUPPORT

- ladder latch adjusting

1шт.

19

25493R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch

2шт.

20

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - trough joining, 5/16 inch

2шт.

21

187957C1

LEVER

ASSEMBLY - ladder pivot latch

1шт.

22

187962C1

SUPPORT

- latch hinge

2шт.

23

1318805C1

SUPPORT

CHANNEL - ladder filler

1шт.

24

398763R2

SPRING

- latch return

1шт.

25

1301262C2

STOP

SUPPORT ASSEMBLY - latch

1шт.

26

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

3шт.

27

1301260C1

EYEBOLT,3/8" - 16 x 72.91mm

- latch adjusting eye

1шт.

28

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

30

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

31

183544C2

SUPPORT

ASSEMBLY - ladder pivot

2шт.

32

1324845C1

ROD

- pivot ladder

1шт.

33

24843R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

34

25544R1

WASHER,13/32" x 13/16" x .134", HDN

- flat, 13/32 x 13/16 x 1/32 inch

1шт.

35

1324841C1

KNOB

GRIP - pivot ladder lever

1шт.

36

1321370C1

SUPPORT

- ladder upper pivoting

1шт.

37

26976R1

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW - hex washer head tapping, 1/4 x 3/8 inch

2шт.

40

1317397C1

ROD

TUBE support

2шт.

41

1318785C1

TUBE,26.8 mm ID, 28.58 mm OD

- lower, ladder

2шт.

42

196955C1

BOLT,Curved Hd, 5/16" - 18 x 1.50", Cl 5

- curved head shoulder, 5/16 NC x 1-1/2 inch

10шт.

Выбрано товаров: 39
